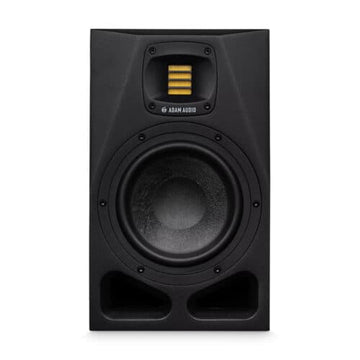

Adam Audio A7V Studio Monitor Nearfield – 7 Inch
The Adam Audio A7V Studio Monitor is the evolution of an industry standard. Designed for use in an array of home, studio, and professional audio applications.
Adam Audio A7V Studio Monitor Nearfield – 7 Inch
The Adam Audio A7V Studio Monitor is the evolution of an industry standard. Designed for use in an array of home, studio, and professional audio applications.
A NEW INDUSTRY STANDARD
The A7V is a contemporary 2-way monitor that represents the evolution of ADAM Audio’s award winning A7X. It features a 7” Multi-Layer Mineral woofer and rotatable X-ART tweeter, which is made by hand in Berlin.
Also, DSP-based voicing, equalization and room correction options can be controlled remotely and in real time via the free-to-download A Control software, and updatable firmware allows for new filters and tunings to be implemented over the lifetime of the monitor.
EXPLORE THE TECHNOLOGY of A7V
-
A CONTROL REMOTE SOFTWARE: With A7V, control the DSP-based functionality of all A-Series monitors remotely and in real-time over ethernet using A control.
-
ROTATABLE HPS WAVEGUIDE & X-ART TWEETER: Made from a new glass fiber polymer compound, the HPS waveguide enables the X-ART tweeter to disperse sound in space with controlled consistency.
-
AUTOMATED ROOM CORRECTION WITH SONARWORKS: What’s more, ADAM Audio has partnered with Sonarworks. They created an automated room correction solution that runs directly on the DSP of A Series monitors.
-
A7V BASS REFLEX SYSTEM, CABINETS AND MOUNTING: A Series cabinets build on the heritage of ADAM Audio and the AX Series.
FINALLY, DON’T SWEAT IT
Features
-
A CONTROL REMOTE SOFTWARE
-
ROTATABLE HPS WAVEGUIDE & X-ART TWEETER
-
AUTOMATED ROOM CORRECTION WITH SONARWORKS
-
BASS REFLEX SYSTEM, CABINETS AND MOUNTING
Spec
- Display: Front panel multi-colour LED
- Cabinet Design: Dual front ported
- Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
- Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
- Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W
- AC Input Voltage: 100 – 240 V, 50/60 Hz
- Power Rating: 300 W max.
- Operating Conditions: -10° C to +45° C (+14° F to +113° F); <75 % RH, non-condensing
- Weight: 8.7 kg (19 lb 3 oz)
- Dimensions (Height x Width x Depth): 337 mm x 200 mm x 280 mm (13 1/4″ x 7 7/8″ x 11″)
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents: A7V loudspeaker, power cable, Quick Start Guide
- Analog: XLR, RCA
- Input Impedance: 9 kOhm / 3.3 kOhm
- Max. Input Level: +19 dBu
- Woofer
- Amplifier Type: PWM
- Peak (10% THD, limiter deactivated): 110 W
- RMS (1% THD, limiter deactivated): 90 W
- Tweeter
- Amplifier Type: Class A/B
- Peak (10% THD, limiter deactivated): 20 W
- RMS (1% THD, limiter deactivated): 15 W
- Networking Connector: RJ45
- Connection Type: Ethernet
- Communication Protocol: OCA using standard IP data
- Control Software: A Control (Windows and MacOS available)
- Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
- Advanced Room Adaptation: 6 x PEQ, Level, Delay
- Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference
- Frequency Response @ -3 dB: 44 Hz – 41 kHz
- Frequency Response @ -6 dB: 40 Hz – 45 kHz
- Max. peak SPL per speaker at 1 m: 105 dB SPL
- Crossover Frequencies: 2.8 kHz
- Woofer
- Basket Diameter: 7″
- Voice Coil Diameter: 1.3″ (33 mm)
- Cone Material: MLM
- Tweeter
- Type: X-ART
- Diaphragm Area: 4 inch² (2420 mm²)
- Equivalent Diaphragm Diameter: 2″ (56 mm)
- Velocity Transform Ratio: 4 to 1
- Diaphragm Weight: 0.17 g
- Waveguide: HPS (rotatable)
- Waveguide Dispersion: 120° horizontal, 70° vertical
- AD converter: 24-bit
- Internal sample rate: 96 kHz
- Delay range, resolution: 0 – 10 ms, 0.1 ms
- Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters
- Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting
- Level: -12 dB to +12 dB
- Input Selection: Balanced, unbalanced
- Voicings: Pure, UNR
- Room Adaption:
- Bass: +2, 0, -2, -4 dB
- Desk: 0, -2, -4 dB
- Presence: +1, 0, -1 dB
- Treble: +1.5, 0, -1.5 dB
