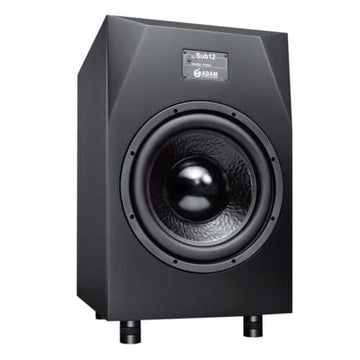

Adam Audio Sub12 Studio Subwoofer Active – 12 Inch
The Sub12 is an Active 12 Inch Studio Subwoofer. Designed to extend the low frequency capabilities of any near or midfield monitoring system down to 22 Hz.
Adam Audio Sub12 Studio Subwoofer Active – 12 Inch
The ADAM Audio Sub12 is an Active 12 Inch Studio Subwoofer. Provides a precise combination of low cutoff frequency and an undistorted high sound pressure level.
ADAM AUDIO’S LEGENDARY SUBWOOFER
Furthermore, designed to extend the low-frequency capabilities of any near or midfield monitoring system down to 22 Hz.
A sturdy special woofer with extended cone travel and a heavy-duty coil have been optimized for accurate reproduction from a bass reflex enclosure. The down-firing bass reflex tube avoids intrusive ventilation noise because of its generous size and shape.
Also, Sub12’s PWM amplifier produces over 90% efficiency and can handle critical passages without overheating for long periods of time. An additional output allows you to cascade as many subwoofers as needed.
But that’s not all. The Sub12 subwoofer also provides a precise combination of low cutoff frequency (-3dB at 22Hz) and an undistorted high sound pressure level (115dB SPL at 1m).
Overall, Key Features of Sub12 Include:
- 12“ Subwoofer (paper)
- Amp. Power RMS / Music: 200 W / 300 W
- Frequency Response: 22 Hz – 150 Hz
- Max. peak SPL at 1 m: ≥115 db
Features
12“ Subwoofer (paper)
Amp. Power RMS / Music: 200 W / 300 W
Frequency Response: 22 Hz – 150 Hz
Max. peak SPL at 1 m: ≥115 db
Spec
SUBWOOFER
| Number | 1 |
| Basket Ø | 12″ (310 mm) |
| Voice Coil Ø | 2″ (50 mm) |
| Cone Material | Paper |
BUILT-IN AMPLIFIERS
| Subwoofer | 1 |
| Type | PWM |
| Amp. Power RMS / Music | 200 W / 300 W |
INPUT CONNECTORS
| Analog | XLR / RCA |
GENERAL DATA
| Frequency Response | 22 Hz – 150 Hz |
| THD > 60 Hz | ≤1 % |
| Max. peak SPL at 1 m | ≥115 dB |
| Crossover Frequencies | 50 – 150 Hz |
| Input Impedance | 10 kOhm |
| Panel | Rear |
| Weight | 57.3 lb (26 kg) |
| Height x Width x Depth | 23.5″ (600 mm) x 14″ (360 mm) x 17.5″ (450 mm) |
| Warranty | 5 years (2 years warranty plus 3 years optional with product registration) |
| Delivery contents | Power cord, manual |
