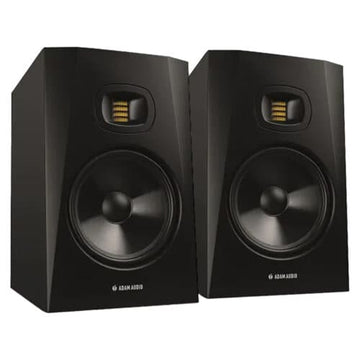

Adam Audio T8V Studio Monitor Pair Nearfield – 8 Inch
The ADAM Audio T8V Studio Monitors are affordable, professional 2-way powered studio monitor with an 8˝ woofer. T8Vs provides best-in-class characteristics and sound performance of the T Series range.
Adam Audio T8V Studio Monitor Pair Nearfield – 8 Inch
The ADAM Audio Pair of T8V Studio Monitors are affordable, professional 2-way powered studio monitor with an 8˝ woofer. T8Vs provides best-in-class characteristics and sound performance of the T Series range.
The T8V impresses with a multitude of features that bring real benefits to the user:
The U-ART tweeter’s 4:1 velocity transfer ratio, in combination with the new Class D amplifiers’ high dynamic range, yield respective max. peak SPL of 118 dB per pair.
Also, the tweeter, which extends up to 25 kHz, works as a team with the HPS Waveguide. This allows an optimal radiation of the high frequencies, which means the advantage of a more controlled, larger usable sweet spot during monitoring. With a bass extension down to 33 Hz, the T8V is especially suitable for users who produce bass-heavy music.
Additionally, T8V is the perfect studio speaker for those who have always wanted to work with an 8“ monitor from ADAM Audio, but where budgets have been insufficient. The 5-year warranty gives users additional security and the certainty of having purchased a quality product.
STATE OF THE ART TECHNOLOGY
- 1.9″ U-ART TWEETER: based on those used in the X-ART and S-ART tweeters from the AX Series and S Series.
- HPS™ WAVEGUIDE: The HPS (High-frequency Propagation System) hones the dispersion of the speakers to an even, uniform consistency, broad in the horizontal axis but tightly focused in the vertical plane.
- PWM – PULSE WIDTH MODULATION: T8V features PWM (Pulse Width Modulation) aka Class D amplification or Switching Amp Technology. It converts the incoming signal to a series of rectangular waveforms of equal height. The width of the rectangles varies in time and the relation of the width of the rectangles represents the musical signal.
Furthermore, ADAM Audio’s T8V has won multiple awards including
- Editors Choice – PROFESSIONAL AUDIO
- Excellence Award – AUDIO TEST
- 5/5 Star Rating – GEARSLUTZ
- Best Monitor – SOUND ON SOUND
Features
- U-ART 1.9” Accelerated Ribbon Tweeter
- The air velocity ratio of 4:1 during the sound generation by folded U-ART membrane
- HPS waveguide from the S Series
- Lightweight polypropylene construction of the woofer
- Vertical 2-way system with 8” woofer
- Spacious rear-firing bass reflex port
- Linear frequency response of 33 Hz to 25 kHz (-6 dB)
- Maximum peak sound pressure per pair in 1 m ≥ 118 dB
- DSP-powered crossover design
- Simple room acoustic adjustments via high- and low-shelf filters
- Analog inputs over XLR and RCA
- Acoustically optimized cabinet geometry
- 2 years warranty with optional extension to 3 years with the registration of the product
Spec
WOOFER
| Number | 1 |
| Basket Ø | 8″ (203 mm) |
| Voice Coil Ø | 1″ (26 mm) |
| Cone Material | Polypropylene |
TWEETER
| Number | 1 |
| Type | U-ART |
| Diaphragm Area | 4 inch² (2420 mm²) |
| Equiv. Diaphragm Ø | 1.9″ (48 mm) |
| Velocity Transform Ratio | 4:1 |
| Diaphragm Weight | 0.17 g |
| Waveguide | HPS |
BUILT-IN AMPLIFIERS
| Number | 2 |
| Woofer | 1 |
| Type | PWM |
| Amp. Power RMS | 70 W |
| Tweeter | 1 |
| Type | PWM |
| Amp. Power RMS | 20 W |
CONTROL OPTIONS
| Input Sensitivity | -10 to +4 dB |
| Gain | Yes |
| High Shelf EQ > 5 kHz | – 2 dB, 0 dB, +2 dB |
| Low Shelf EQ < 300 Hz | – 2 dB, 0 dB, +2 dB |
INPUT CONNECTORS
| Analog | XLR / RCA |
| Input Impedance | 10 kOhm / 20 kOhm |
GENERAL DATA
| Panel | Rear |
| Frequency Response | 33 Hz – 25 kHz (-6 dB) |
| THD > 80 Hz | 0.5 % |
| Max. SPL per pair at 1 m | ≥118 dB |
| Crossover Frequency | 2.6 kHz |
| Max. Power Consumption | 150 W |
| Weight | 21.6 lb (9.8 kg) |
| Height x Width x Depth | 15.8″ x 9.8 “ x 13.2“ (400 mm x 250 mm x 335 mm) |
| Warranty | 5 years (2 years warranty plus 3 years optional with product registration) |
| Delivery Contents | Power cord, Quick Start Guide |
