AKG SR4500 Reference Wireless Microphone Stationary Receiver – Band 1
AKG SR4500
The AKG SR4500 analog true diversity reference wireless receiver provides maximum ease of use with an automatic setup function and scan of the radio frequency environment. The rehearsal mode supports the engineer during soundchecks with information on the systems signal quality. The programmable status monitor shows all relevant system information on an illuminated multi-colour LED ring. Its precise battery life readout in hours is a valuable advantage in wireless applications. A wide range of professional antenna splitters, power supplies and high-quality remote antennas is available to set up a reliable wireless system, even in a large area. Ideal for installations, and on stage performances.
Features
- True diversity receiver with all-metal case
- Available in eight UHF bands 30 MHz wide each, with up to 1,200 selectable frequencies
- Using several frequency bands allows up to 70 channels to be operated simultaneously.
- Transmitter battery status monitoring and tone code squelch
- Auto Setup, Environment Scan, and Rehearsal functions for quick and easy setup

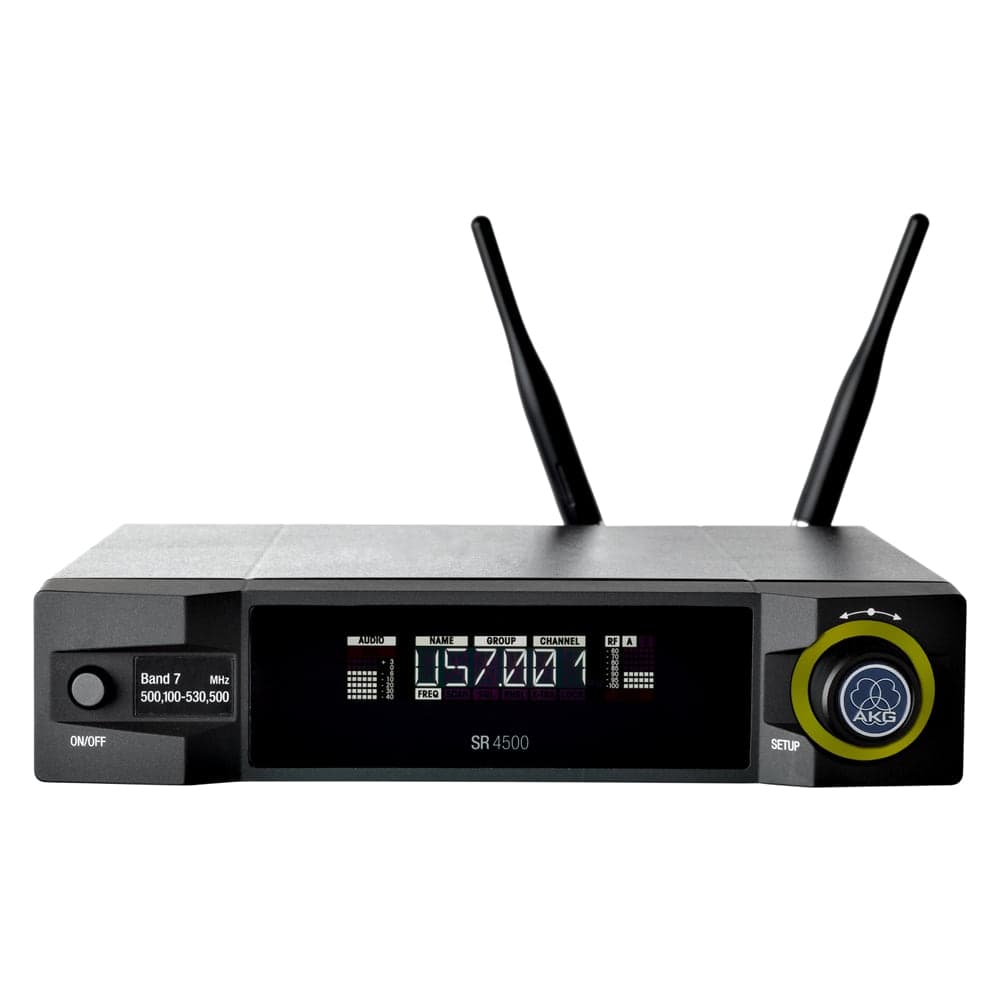

- Backlit, programmable color display and jog wheel with selectable warning signal for ease of use
- Output for controlling external devices
- Integrated data interface for controlling and monitoring from a PC via System Architect
Spec
Number of Receivers: 1
Receiver Frequency Range: 548.100 – 697.900MHz
Switching bandwidth: 30 MHz
Recommended simultaneous channels: 50 (per band)
Number of selectable frequencies: 1220 (selectable in 25kHz steps)
Radio range (Line of sight): 100m (depending on antenna system)
Frequency Response: 35Hz-20kHz
Signal/Noise Ratio: 118dB (A weighted)

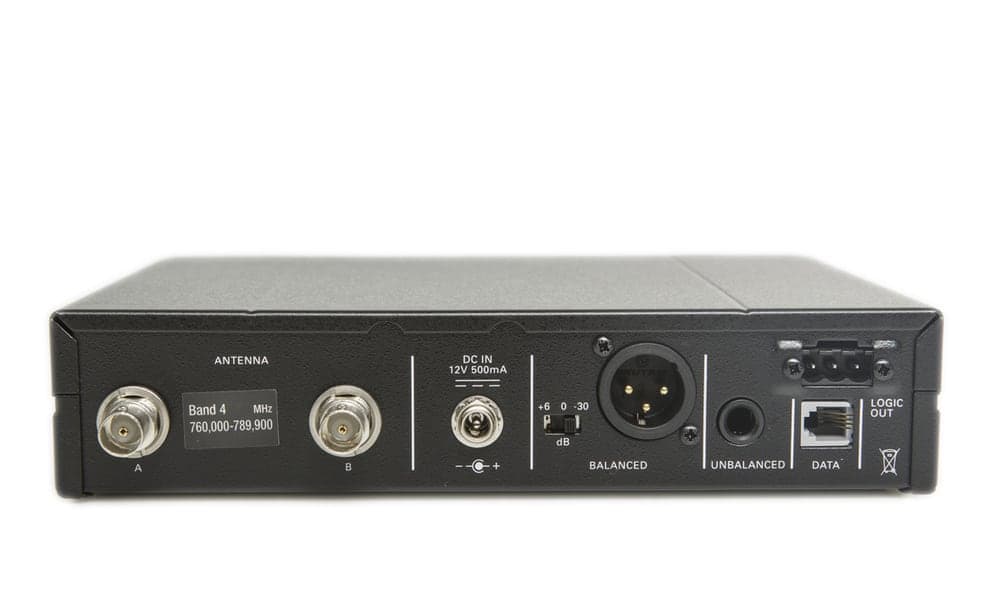

Outputs: 1 x XLR, 1 x 1/4″
Dimensions: 200 x 44 x 190 mm
Weight: 972 g
