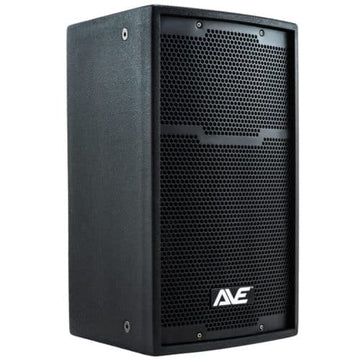

AVE Ultra 10 DSP 10″ PA Powered Speaker 1100W with DSP Control

AVE ULTRA10-DSP 10 Inch Powered Speaker

AVE ULTRA10-DSP 10 Inch Powered Speaker is the smallest in the line up of the new Ultra DSP loudspeaker series from AVE. Don’t let being the smallest fool you, the ULTRA10-DSP has all the warmth, clarity and punch you’ll need. The engineers at AVE knew that premium sound quality could be achieved at a price point that is accessible to all.  All components were hand chosen by AVE engineers with this intention in mind, from the carefully selected drivers to the solid Birch plywood cabinet and customised DSP. The result is an innovative, fresh design that’s loaded with power, class, and a quality of sound that you expect from systems in a price range that is far beyond the Ultra DSP series.

Features

• 1100W bi-amplified design with Class-D & Class A/B technology
• Solid 16mm Birch plywood cabinet
• Speaker Delay Time
• Custom selected woofers and HF drivers
• Punchy bass with clear highs, and warm mids.
• Onboard DSP processor with mode selection
  • 6-band graphic EQ
  • Speaker time delay
  • High-Pass/Low-Pass Filters
  • Main volume control
• Designed and engineered in Australia
• Perfect for DJs, bands, and venues
• 2-way high powered active PA speaker

Spec

Product number: ULTRA10DSP

Product type: PA loudspeaker

Type: Powered 2-Way

Low/mid driver dimensions: 10″ (254mm)

LF Voice Coil Size: 1.5” (38.1 mm)

HF driver dimensions: 1.34″ (34mm)

Amplifier: Class A/B & Class D

Dispersion (H x V): 90° x 60°

RMS: 350W

Peak power: 1100W

Frequency response: 45 Hz – 20 kHz

Max. SPL (peak): 120 dB

DSP Control: 8 Selectable Programs (4 User editable)

Max Input Level: 20 dBu

Signal to Noise: 90 dB (A-Weighted)

Total Harmonic Distortion (THD): <0.5% (1kHz -9dB)

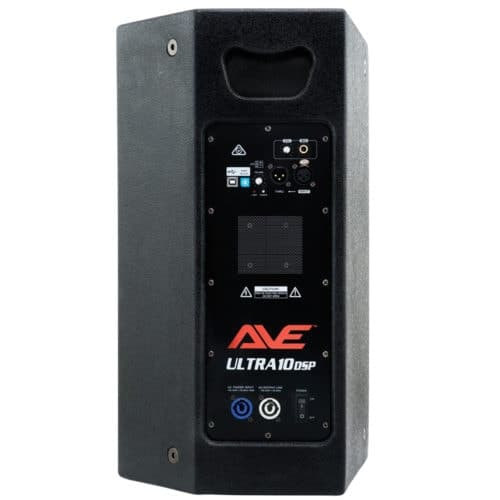

Controls: 1 x mic gain, 1x main level, DSP selector mode, power

Indicators: Power, limit

Inputs: 1x XLR (line), 1x ¼” TS Jack (mic)

Outputs: 1x XLR

Other Connections: 1x USB-B port (DSP Connection)

Operating voltage: 110 – 240 V / 50 – 60 Hz, Switching Power Supply

Power Connection: Powercon

Operating Temperature: 0 – 40°C

Cabinet material: ABS Plastic

Dimensions: 296 x 322 x 538mm

Weight: 14.3 kg
