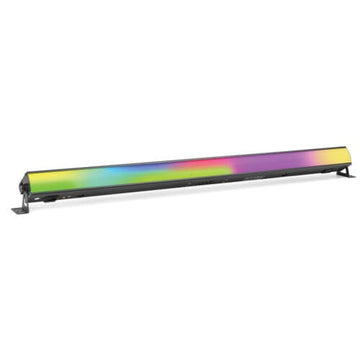

Beamz LCB224 – LED Bar 224x SMD RGB 3 in 1
The Beamz LCB224 is an LED bar with 224 pieces of SMD RGB LEDs. Additional accessories included are a Mounting bracket and a Power cable.
Beamz LCB244 – LED Bar 224x SMD RGB 3 in 1
The Beamz LCB224 is an LED bar with 224 pieces of SMD RGB LEDs. The LEDs are divided into 16 separately controllable sections. Additionally, each section has its own RGB colour setting in DMX mode. While using the fixture in the stand-alone mode you have access to pre-programmed shows that run automatically.
This includes sound-activated mode and you can also pick from pre-programmed automatic programs or create your own mixture of colours in RGB mode. The extra IEC output enables you to simply link the power of multiple units together into a single socket.
LCB224 is a 3-in-1 LED lighting fixture
The LCB224 is a 3-in-1 LED lighting fixture with Red, Green, Blue Led Colours. When used in DMX mode via 3-pin XLR, the LCB224 provides you with 3, 5, 8, 24, 48, 53 DMX Channels to work with. Also included is a Flash mode with a 1 – 19Hz flash rate per second.
The LCB224 also includes Automatic programs, DMX, Manual and Master/Slave. The LCB224 also uses Convection Colling technology that stabilizes the temperature of the unit. Additional accessories included are a Mounting bracket and a Power cable.
LCB224 Key Features
- 224x SMD RGB LEDs
- 3, 5, 8, 24, 48 or 53 DMX channels
- 16 Sections controllable
Features
- 224x SMD RGB LEDs
- 3, 5, 8, 24, 48 or 53 DMX channels
- 16 Sections controllable
- DMX and Stand-alone mode
- Master/slave function
- Sound activated with adjustable sensitivity
- 54 Built-in effects
- 3 Pre-programmed shows
- 25 Colour pre-sets
- 24 Effect patterns
- DMX in/output via 3-pin XLR
- IEC-connector input/output
Spec
Supplied features: Master/Slave mode
Light source: 3-in-1 LED
LED colours: Red, Green, Blue
Quantity of LEDs: 224
Beam angle: 90°
Flash rate per second: 1 – 19Hz
DMX channels: 3, 5, 8, 24, 48, 53
DMX connector: 3-pin XLR
Modes: Automatic programs, DMX, Manual, Master/Slave
IP rating: IP20
Cooling: Convection
Display: LED
Power plug: IEC
Power consumption: 0.75 – 0.41A
Power supply: 100-240VAC 50/60Hz
Dimensions (L x W x H): 1000 x 65 x 90mm
Weight: 1,65
Accessories: Mounting bracket, Power cable
