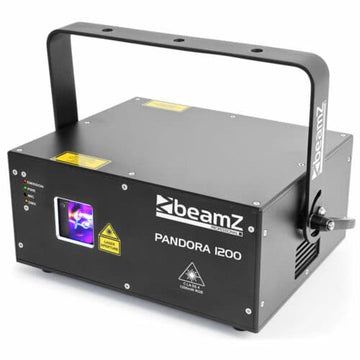

Beamz PANDORA 1200 TTL Laser RGB DMX ILDA Sound Activated Master/Slave

The Beamz PANDORA 1200 TTL Laser RGB is a high-quality versatile laser projector. Because of its projection capabilities and versatile functions, it is well suited for professional applications.

 It’s perfect for fixed installations, mobile use, multimedia projects, long-distance outdoor applications and extra precise graphics projections.

Advanced TTL RGB colour modulation

The PANDORA 1200 TTL features a TTL (transistor-transistor-logic) modulation. This basically allows you can create 7 colours at their full intensity thanks to the RGB mixing capabilities. With extremely advanced beam shaping technology; professionals will also love the precision of the 25K graphics scanners that allow for high-resolution accurate projections. The practical rotary knobs on the back also allow you to invert the X / Y axes for further projection control.

Connectivity

On the back of the PANDORA 1200 TTL, you will find a DMX in/output with 3-pin XLR and an ILDA in/out connection. An ILDA connector is the standard connector for show laser lights that connect the laser display with an ILDA cable to the laser control device. When using a DMX controller the PANDORA 1200 TTL offers 12 or 23 DMX channels in DMX mode.

PANDORA 1200 TTL Pre-programmed shows

You can also set the PANDORA 1200 TTL into a Sound-Activated mode with adjustable sensitivity. This is possible with the built-in microphone on the back of the laser. This function essentially allows you to get back to your performance while the PANDORA 1200 TTL actives to the sound of the music. When performing with the laser you can also take advantage of the built-in pre-programmed shows. If time is a factor, just set the laser into auto mode and let the auto programme perform lighting effects for you.

The PANDORA 1200 will guarantee an output power of 1000mW; and max output power of 1200mW full-colour Red, Green and Blue. As a result, in combination with realistic animations and professional laser shows makes it is suitable for any kind of application.

Features

• Red (300mW), Green (100mW) and Blue (600mW) Powerful laser
• Guaranteed 1W output
• TTL RGB colour modulation
• 25K high speed optical scanner system
• X- and Y-Size inverter
• DMX and Stand-alone mode
• 12 or 23 DMX channels
• Master/slave function
• Sound activated with adjustable sensitivity
• Auto mode
• Pre programmed shows
• DMX in/output via 3-pin XLR
• Control panel with LED display

Spec

DMX channels: 12, 23

DMX connector: 3-pin XLR

ILDA Connector: DB25

Laser Red: 300mW @ 650 nm

Laser Green: 100mW @ 532nm

Laser Blue: 600mW @ 447nm

Scanner system: 25kpps @ 8°

Guaranteed output (99mW): 1000mW

Maximum output (99mW): 1200mW

Power consumption: 80W

Power supply: 100-240VAC 50Hz

Dimensions (L x W x H): 243 x 295 x 128mm

Weight: 4.9kg
