Beamz Tiger 7R Moving Head Hybrid Pair



Beamz Tiger 7R

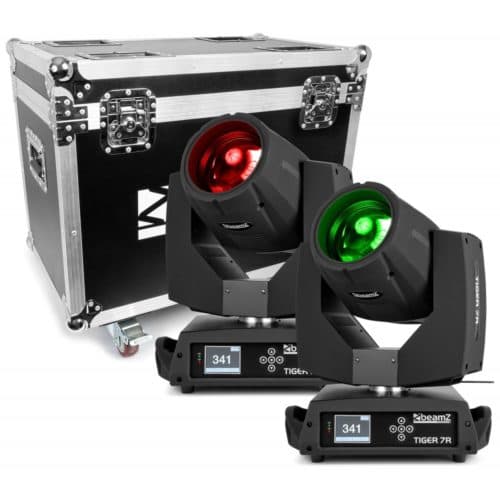

The Beamz Tiger 7R is a hybrid moving head capable of beam and spot applications. Perfect for adding movement and dynamics to your lighting show. The moving head is equipped with dual gobo wheels, 1 with 16 metal gobos. And the other with 7 rotating gobos that can be interchanged. A dual prism that lets you split the beam into a 9-facet linear effect or 24-facet radial effect for amazing aerial effects. Also included is an indexed colour wheel with 14 colours + open. The Tiger 7R features a special lens that converts the output from a 5° beam to a 15° spot for even more applications. Supplied as a pair in a rolling flight case its the perfect lighting system for productions, venues, bands, and DJs.

Features

• 230W 7R high-intensity discharge bulb light source
• DMX and Stand-alone mode
• Master/slave synchronization
• Special lens to swap between spot and beam mode
• Dual gobo wheels with shake and rotating functions
• Gobo Wheel 1: 7x rotating gobos + open (interchangeable)
• Gobo Wheel 2: 16x metal gobos + open
• 14 Colours + open
• 2 rotatable prisms (9-facet linear and 24-facet radial)R
• Motorized focus
• Mechanical dimmer and shutter with an adjustable strobe speed
• ON/OFF lamp control from the lighting desk
• Control panel with LCD display
• Transport LOCK for Pan and Tilt
• DMX in/output via 3-pin XLR
• PowerConnector input/output
• Omega quick-lock clamp included (2x)

Spec

Colour temperature: 8000K

Light source: 230W 7R Bulb

Colour wheel: 14 colours + open

Gobos: Dual Wheel (1- 7x rotating gobos + open, 2- 16x metal gobos + open)

Beam angle: 5° & 13°

Illuminance: 500.000 lx @ 1m

Pan Range: 540°

Tilt Range: 270°

Strobe Rate (mechanical): 0 – 11Hz

Modes: Automatic programs, DMX, Sound to Light

DMX Channels: 16

DMX Connector: 3-pin XLR

Power consumption: 350W

Power Supply: 100-240VAC 50/60Hz

Dimensions: 330 x 395 x 460mm

Weight: 16.0 kg
