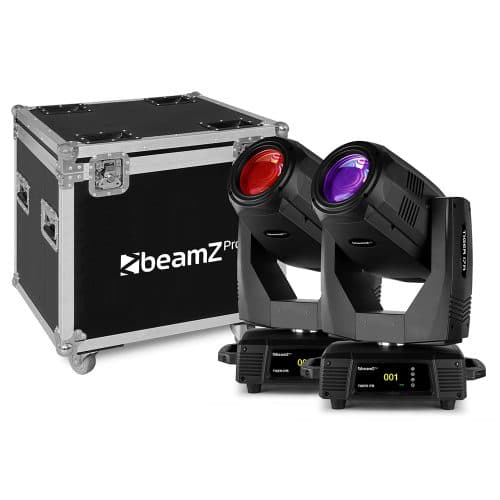

Beamz TIGER17R BSW 350W Moving Head 2 pcs in FC
The Beamz TIGER17R is a set of 2 professional 17R 2-in-1 moving heads with bright output due to the use of the 17R 350W high intensity discharge bulb. Equipped with a colour, frost, gobo and double prism effect wheel for ultimate control. The Tiger 17R moving head works both in DMX or stand-alone mode. When operating in DMX mode you have complete control with 16 or 20 DMX channels. Among its features are a mechanical shutter and adjustable speed strobe, frost filter, rotation prism, motorized focus and mechanical dimmer. Delivery in a customized flight case.
Overall, the TIGER17R is the perfect option if you’re looking for professional quality moving heads.
Features
- 2-in-1: Beam and Spot
- 350W 17R High-Intensity discharge bulb included
- Gobo wheel: 14 static gobos + 9 rotating replaceable glass gobos
- Colour Wheel: 13 Colours + open
- Gobo shake effect
- Frost effect filter
- Prisms: rotatable 6 facet prism + rotatable 8 facet prism
- Motorized focus
- Mechanical shutter and adjustable speed strobe effect (1-13 x per sec)
- Dimmer: 0 – 100% linear dimmer
- 16 or 20 DMX Channels
- DMX, Auto mode and Master/Slave function
- Automatic pan/tilt correction
- Pan: 540° and Tilt: 250° Movement
- With pan/tilt lock mechanism
- Pan/Tilt Resolution: 16bit
- Control panel with LCD display
- Battery function (mains power not required for fixture setup)
- DMX in/output via 3-pin XLR
- Powerconnector input/output
- Quick lock omega clamp included (2x)
- DMX cable included
- Powerconnector cable included
Spec
Colour temperature: 8000K
Lightsource: MSD 17R 350W bulb
Colour wheel: 13 colours + open
Dispersion: Beam: 5°
Dispersion: Spot: 17°
Dispersion: Wash: 17° – 43°
Zoom: Yes
Illuminance (lx): 145,000lx@10m
Head movement:Pan: 540
Head movement:Tilt: 270
Static gobo: Quantity: 14
Rotating gobos: Quantity: 9
Gobo Shake: Yes
Interchangeable Gobos: Yes
Gobo dimensions: 15.8mm
Prisma 1: 6 Facet
Prisma 2: 8 Facet
Frost filter: Yes
Flash rate per second: 1 – 13Hz
Modes: Automatic programs, DMX, Manual, Master/Slave
Sound to Light mode: Yes
DMX Channels: 16, 20
DMX Connector: 3-pin XLR
Display: LCD
IP rating: IP20
Cooling: Temperature-controlled fan
Power Plug: Power-connector
Power consumption: 3.2 – 1.8A
Power Supply: 100-240VAC 50/60Hz
Dimensions (L x W x H): 420 x 300 x 635mm
Weight (kg): 60
Weight:each (kg): 20.6
Accessories: DMX Cable, Mounting bracket, Power Cable
