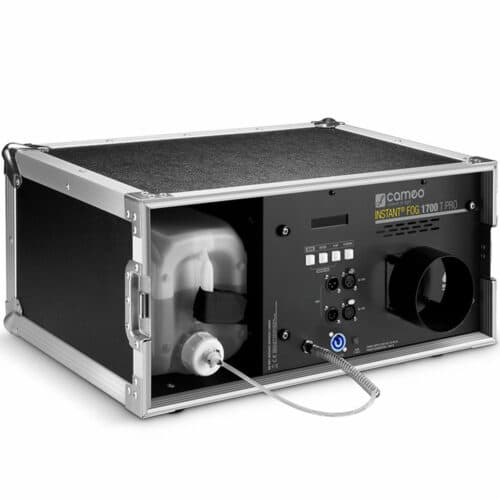

Cameo CLIF1700TPRO Instant Fog Machine 1700W Roadcase
Above all, the Cameo CLIF1700TPRO Instant Fog Machine is a high-output touring fogger built into a rugged road case to meet the rigorous demands of professional applications. This Instant Fog Machine sports a powerful 1,700-watt heater and has a massive output of 24,720 cubic feet per minute. Also, it fills large stages and venues with dense, consistent fog after an initial warm-up time of only 7 minutes.
Effective Fluid Consumption
The CLIF1700TPRO’s fluid consumption is minimal at 150 ml/min when operating at 100% output. Also, the integrated fluid canister drawer takes containers up to 5 litre capacity for extended operation between refills. Additionally, the fluid tank illumination indicates the fog machine is ready for operation.
Flexible Processes
The CLIF1700TPRO is controlled via DMX in 3-channel mode otherwise, use the easy-to-read high-contrast LCD display and four buttons manually. Provided onboard are both 3-pin and 5-pin DMX inputs and outputs.
Additionally, you are able to integrate a 100 mm hose adapter if you want to duct the fog from the machine to another location. Lastly, a convenient automatic shutdown feature prevents damage to the pump when the fluid tank runs empty.
CLIF1700TPRO Key Features
- Rugged Road Case
- Massive Fog Output
- Fast 7 minute Warm Up
Features
- 1700 watt high output touring fogger
- Built into a rugged road case
- DMX control plus standalone operation
- High-contrast LC display
- Master/Slave Mode
- Integrated fluid canister drawer
- Integrated 100 mm hose adapter
- Automatic shutdown prevents pump damage when fluid tank is empty
- Ideal for live events, discotheques, theatres, TV and film productions
Spec
Type Fog: Machine
Power: 1700 W
Warm-up time: 7 minutes
Fog duration: 40 seconds @ 100% Output / Non-Stop @ 50% Output
Reheating time: 60 seconds
Fluid tank capacity: 5L
Fluid consumption: 150 ml/min
DMX input: XLR 3-pin male, XLR 5-pin male
DMX output: XLR 3-pin female, XLR 5-pin female
DMX mode: 3-channel
DMX functions: Fog Quantity, Interval
Standalone functions: Fog Quantity, Instant Fog, Interval
Controls: Enter, Mode, Value Down, Value Up
Indicators: Canister lighting, Key illumination, LC display
Operating voltage: 230 V AC / 50-60 Hz
Operating voltage: 230 – 240 V AC / 50 – 60 Hz, Neutrik PowerCON TRUE1
Power consumption: 1800 W
Overheating protection: heating element with thermostat
Power connector: Power cord with safety plug (Type E / CEE 7/7), Power Twist Connector
Fuse: T10AL (5 x 20 mm)
Ambient temperature: (operating) 5 – 40 °C
Relative humidity: < 85 %, not condensing
Housing material: Metal, plywood
Cabinet colour: Black
Dimensions with cover (W x H x D): 550 x 265 x 465 mm
Width: 465 mm
Height: 255 mm
Length: 550 mm
Other features: 4 x rubber feet, Flightcase with cover, butterfly locks and carrying handle., Power cord, Special canister cap with ventilation valve and suction pipe
Weight: 21.763 kg
