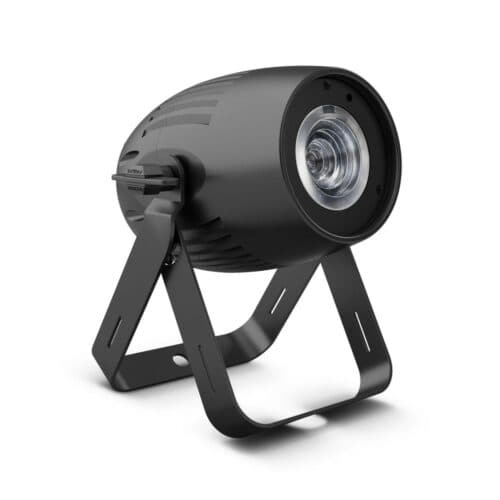

Cameo Q-Spot 40 RGBW – Compact LED Spotlight
To begin with, the Cameo Q-Spot 40 Spotlight device is brilliant for producing vivid illumination on a well-defined area in stage, film, television, music, and other production venues.
Q-Spot 40’s Powerful Osram LED
The compact Cameo Q-Spot 40 is equipped with a compelling 40-watt Osram quad LED. Subsequently, this light has a 50,000 hour life expectancy and is built to go the distance. Also, a convenient infrared remote control unit is available as an accessory.
RDM Armed
The Q-spot has full RDM capability enabling bidirectional communication via a stand DMX network. Similarly, the Q-Spot 40 provides 5 modes of DMX control, sound activation and master, slave and standalone capability.
High-Calibre Lenses
This compact spotlight sports a custom lens for a tightly focussed 4.5° beam spread. Likewise, it comes with two replacement lenses offering versatility and a choice of 10° and 25° angles.
Effortless Transitioning
Using 16-bit technology, the Q-Spot 40 achieves intense high-definition RGBW colour mixes. Meanwhile, achieve ultra smooth dimming with selectable curves and response.
Low Noise and Film Ready
The Q spot 40’s highly efficient convection cooling design ensures silent operation. Also, the fixture’s 3,600 Hz refresh rate and flicker-free performance make it ideal for motion picture and TV applications.
Compact Connections
Lastly, the rugged all-metal housing provides 3-pin DMX inputs and outputs plus blue and grey Power Twist connectors for trouble-free daisy-chaining and power linking.
In Summary, Q-Spot 40 Impressive Extra Features:
- High-speed strobe function
- Colour temperature correction
- 4-button OLED display for easy configuration.
Features
- Compact spotlight with single 40W Osram quad LED
- Custom lens with 4.5° beam spread for uniform light intensity
- Includes 2 replacement lenses for 10° or 25° beam angles
- RDM enabled
- 16-bit technology for high definition colours and ultra smooth dimming
- Flicker free, ideal for motion picture and TV applications
- Colour temperature correction
- 4 high resolution dimming curves with adjustable response
- 5 modes of DMX control, sound activation plus master, slave and standalone capability
- Infrared remote control available as accessory
- 4-button OLED display for easy configuration
- Convection cooling for noiseless performance
Spec
Type: Indoor
Colour spectrum: RGBW
Number of LEDs: 1
Average LED lifetime: 50000 hrs.
LED type: 40 W
Refresh rate: 3600 Hz
Dispersion: 10 °, 25 °, 4.5 °
DMX input XLR: 3-pin male
DMX output XLR: 3-pin female
RDM: Yes
Protocols: USITT DMX-512
DMX mode: 2-channel, 3-channel 1, 3-channel 2, 4-channel, 9-channel
DMX Functions: colour jump, colour macro, master dimmer, RGBW, sound control, strobe
Wireless DMX: no
High Speed Strobe: 1 – 20 Hz
Standalone modes: Auto run, colour fade, colour jump, colour macro, slave mode, sound control
Controls: Enter, Mode, Value Down, Value Up
Indicators: OLED Display
Operating voltage: 100 V AC – 240 V AC, 50 – 60 Hz
Power consumption: 55 W
Power Linking: 5 @ 240V AC
Power connector: Blue Power Twist, male
Power supply connection: Grey Power Twist, female
Max. output current: 12 A A
Housing material: Metal
Cabinet colour: Black
Protection class: IP IP20
Cooling: Convection
Maximum Ambient Temperature: 0 – 40° C °C
Illuminance: 58,000 lx @ 1 m, 8900lx @ 3m
Luminous flux: 780 lm
Dimensions: 151 x 130 x 168 mm
Weight: 2.75 kg
