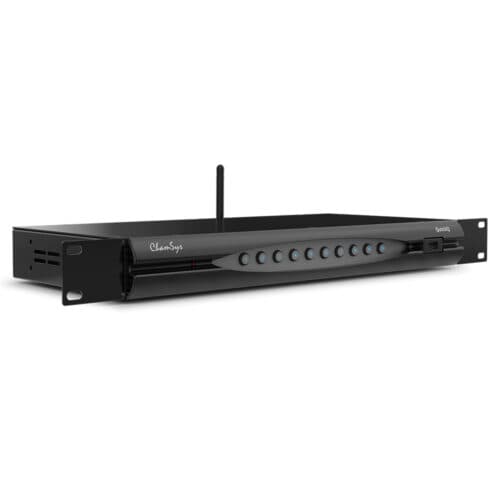

Chamsys Quick QRACK Rack-Mountable Lighting Control Console

Introducing the Chamsys Quick QRACK Rack-Mountable Lighting Control Console. A small rack-mountable version of the QuickQ console designed for installations.

Features

• Ideal for installations and architectural settings
• Featuring four Universes of DMX output
• Two RDM enabled 5-pin DMX connectors
• Inbuilt Wi-Fi for programming and remote control
• Ten buttons for activation of Cues and Playbacks
• Four 10Scene ports for connection of up to forty 10Scene wall plate
• Features the same intuitive software as QuickQ Consoles
• Simple Hot-Takeover mode allowing an external console to take control

Hardware Specifications:

• Universes supported: 4
• Direct DMX Outputs 5-Pin XLR: 2
• 10Scene buttons: 10
• External Monitor: 1920 x 1080 HDMI
• Inbuilt Wi-Fi: Yes
• Network Port: 1
• USB Ports: 2
• Audio Input: 1
• Audio Output: 1
• MIDI Ports in/out: Yes
• TrueCon Power Input: 90-250v AC

Software Specifications:

• Max Number of DMX Channels: 2048
• Max Number of Fixtures Supported: 2048
• Max Number of Scenes: 10
• Midi & Midi Timecode Supported: Yes
• OSC Supported: Yes
• RDM Autopatch for fast show patching
• Fixture library of over 30,000 fixture files
• Built in FX generator
• Colour picker and Gel inbuilt Gel library
• Offline designer software available for Windows and Mac
• Supported fixtures: All – LEDs, Dimmers & Moving Lights

Included Accessories:

• Wi-Fi Antenna: 1
• Rackmount Ears: 2
• 10Scene Connectors: 4
• Neutrik powerCON TRUE1 Power Cable: 1

Spec

Rack Weights and Dimensions:

Width (without ears): 403mm (15.8 inches)

Depth: 195mm (7.7 inches)

Height: 45mm (1.8 inches)

Weight: 3.1kg (6.8 lb)
