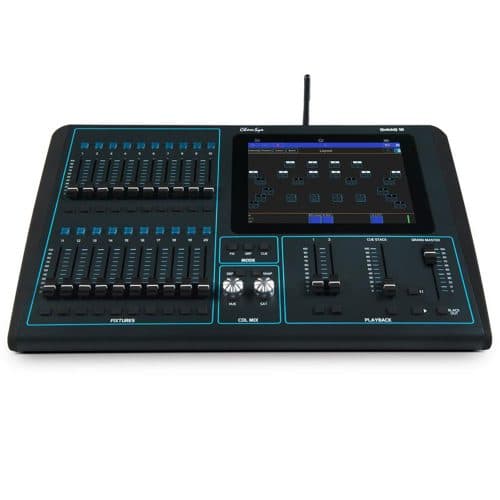

Chamsys QuickQ 10 Lighting Control Console
Regular price
$3,899.00
Sale price
$3,899.00
Regular price
Unit price
Tax included.
NOTICE all heavy and bulky items or shipments to regional or remote Australia are subject to additional freight costs.
Stock availability may be limited please contact us to confirm stock holding.
FOUND A BETTER PRICE ? ASK US ABOUT PRICE MATCHING TODAY
Introducing the Chamsys QuickQ 10 Lighting Control Console. As part of the ChamSys QuickQ range offering user-friendly features at an affordable price. This is a perfect console for dimming controls and colour mixing fixtures.
Features
Overview:
- Modeled on smartphone icon interfaces for ease of use
- Intuitive interface allowing simple control of all fixture attributes
- The interface supports gestures such as pinch-zoom and scrolling
- Easily connect to the remote app on iOS & Android devices via inbuilt Wi-Fi
Playback Faders:
- 20 multi-function fixture faders with 3 different modes – Fixture, Group, and Cue
- 3 multi-cue Playback faders: two Chase controllers and one Cue Stack, which are legended on screen
- The console features a dedicated Grand Master fader for overall level control
Colour Control:
- A dedicated “colour control area” with Hue and Saturation encoders
- Select from inbuilt palettes and gel libraries using the touch screen
- Built-in colour picker for use with LED fixtures
Networking:
- QuickQ supports output of DMX over the network via ArtNet/sACN/Pathport
Software:
- Offline editor available for both Windows and Mac
- Regular software updates
- Easy Upgrades
- Automated Patching
- HSV Color Mixing
- Color Picker
- Built-in FX
- Chase Support
- Master Cue Stack
- Execute Window
- Audio Triggering
- Tap to Time
Spec
Console Weights and Dimensions:
Width: 525mm (20.7 inches)
Depth: 350mm (13.8 inches)
Height: 106mm (4.2 inches)
Weight: 4.07kg (8.97 lb)
Hardware Specifications:
- Universes supported: 1
- Direct DMX Outputs 5-Pin XLR: 1
- Master Playback Faders: 2 Chase, 1 Cue Stack
- Multi-Function Fixture Faders: 20
- Bump Buttons: Yes
- Attribute Encoders: 0
- Dedicated Hue/Saturation Encoders: Yes
- Inbuilt 9.7” Multi-touch Display: Yes
- External Monitor: 1920 x 1080 HDMI
- Inbuilt Wi-Fi: Yes
- Network Port: 1
- USB Ports: 2
- Audio Input: 1
- Audio Output: 1*
- MIDI Ports in/out: No
Software Specifications:
- Max Number of DMX Channels: 512
- Max Number of Fixtures Supported: 512
- Max Number of Cue Stacks: 1
- Max Number of Chases: 2
- Midi & Midi Timecode Supported: No
- OSC Supported: No
- RDM Autopatch for fast show patching
- Fixture library of over 30,000 fixture files
- Built-in FX generator
- Colour picker and Gel inbuilt Gel library
- Offline designer software available for Windows and Mac
- Supported fixtures: LEDs & Dimmers (No Moving Lights)
