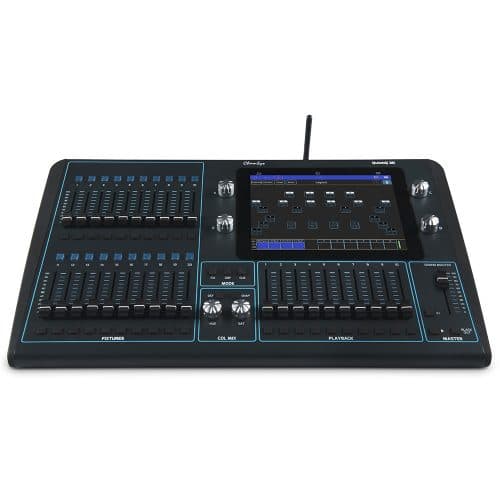

Chamsys QuickQ 20 Lighting Control Console

Introducing the QuickQ 20 Lighting Control Console. It is part of the ChamSys QuickQ range which offers user-friendly features at an affordable price. This is a perfect console for dimming controls and colour mixing fixtures.

Features

Overview:

• Modeled on smartphone icon interfaces for ease of use
• Intuitive interface allowing simple control of all fixture attributes
• The interface supports gestures such as pinch zoom and scrolling
• Easily connect to the remote app on iOS & Android devices via inbuilt Wi-Fi

Playback Faders:

• 20 multi-function fixture faders with 3 different modes – Fixture, Group, and Cue
• 10 multi-cue Playback faders, which are legended on screen
• The console features a dedicated Grand Master fader for overall level control

Colour Control:

• A dedicated “colour control area” with Hue and Saturation encoders
• Select from inbuilt palettes and gel libraries using the touch screen
• Built-in colour picker for use with LED fixtures

Networking:

• QuickQ supports the output of DMX over the network via ArtNet/sACN/Pathport
• Remote triggering of Playbacks and Execute items via OSC

Software:

• Offline editor available for both Windows and Mac
• Regular software updates
• Easy Upgrades
• Automated Patching
• HSV Color Mixing
• Color Picker
• Built-in FX
• Chase Support
• Master Cue Stack
• Execute Window
• Audio Triggering
• Tap to Time

Spec

Console Weights and Dimensions:

Width: 565mm (22.2 inches)

Depth: 350mm (13.8 inches)

Height: 106mm (4.2 inches)

Weight: 5.2kg (11.46 lb)

Hardware Specifications:

• Universes supported: 2
• Direct DMX Outputs 5-Pin XLR: 2
• Master Playback Faders: 10
• Multi-Function Fixture Faders: 20
• Bump Buttons: Yes
• Attribute Encoders: 4
• Dedicated Hue/Saturation Encoders: Yes
• Inbuilt 9.7” Multi-touch Display: Yes
• External Monitor: 1920 x 1080 HDMI
• Inbuilt Wi-Fi: Yes
• Network Port: 1
• USB Ports: 2
• Audio Input: 1
• Audio Output: 1*
• MIDI Ports in/out: Yes*

Software Specifications:

• Max Number of DMX Channels: 1024
• Max Number of Fixtures Supported: 1024
• Max Number of Cue Stacks: 10
• Max Number of Chases: 10
• Midi & Midi Timecode Supported: Yes
• OSC Supported: Yes
• RDM Autopatch for fast show patching
• Fixture library of over 30,000 fixture files
• Built in FX generator
• Colour picker and Gel inbuilt Gel library
• Offline designer software available for Windows and Mac
• Supported fixtures: All – LEDs, Dimmers & Moving Lights
