Chauvet DJ 4BAR Flex Quad ILS Wash Lighting Set

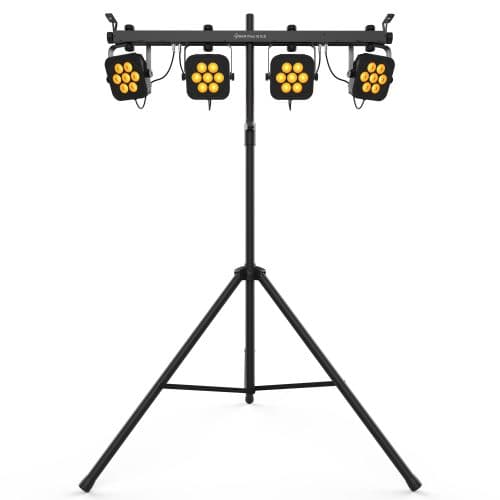

This all-in-one system is fitted with four PAR fixtures on one bar. It is compatible with the Integrated Lighting System (ILS) that makes creating coordinated light shows easy and fast. It’s high-intensity, quad-colour (RGBA) LEDs generate a broad spectrum of colours and achieve natural-looking colour temperatures with punchy amber LEDs.
Features
- Complete wash lighting solution fitted with high-intensity, quad-colour (RGBA) LEDs
- ILS compatibility for use in the ILS ecosystem
- Mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole
- Generate a broad spectrum of colours and achieve natural-looking colour temperatures with punchy amber LEDs
- D-Fi™ USB compatibility for wireless master/slave or DMX control
- Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4Bar Flex Q
- Provide electricity to the additional lights by using the built-in Edison plugs
- Maximize setup possibilities and configurations with 2 included L-brackets
- Easily set up and tear down in minutes with the included carrying bag
- Multiple control options include standalone, DMX mode, wireless footswitch or the IRC-6 remote
- Safely mounts to truss using built-in bolts
Spec
DMX Channels: 4, 6 or 19
DMX Connectors: 3-pin XLR
Max Unobstructed Distance: 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
Beam Angle: 14°
Field Angle: 23°
Illuminance: 2,353 lux @ 2 m (per pod)
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 80 W, 1.2 A @ 120 V, 60 Hz, 78 W, 0.6 A @ 230 V, 50 Hz
Approvals: CE, RoHS, UKCA
Operating Frequency (D-Fi): 2.412 to 2.484 GHz
Operating Frequency (foot switch): 433 MHz
Max Unobstructed Distance (foot switch): 100 ft (30.5 m)
Footswitch battery: 9 V
Fits Tripod Sizes: 1.5 in (36.80 mm)
Bracket Mounting Hole: M10 (1.5 mm pitch)
Weight: 12.2 lb (5.5 kg)
Weight (Controller): 1.2 lb (0.6 kg)
Size: 1186 x 50.8 x 305 mm
Size (Controller): 419 x 132 x 38 mm)
Included controller: IRC-6
Optional controller: D-Fi USB
