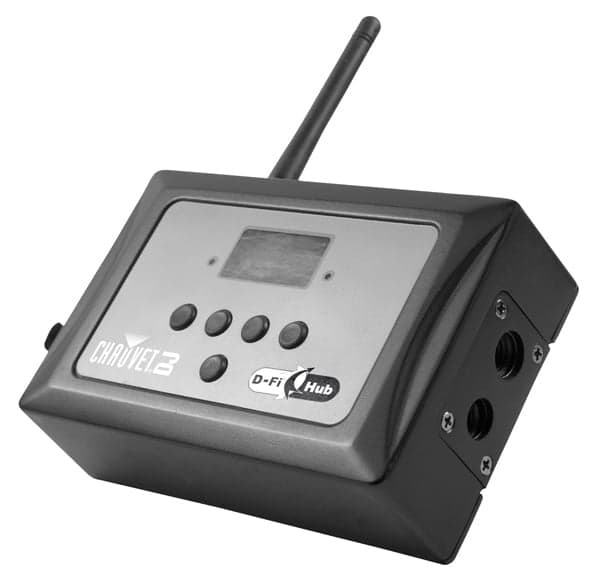

Chauvet DJ D-FI Hub Wireless DMX Transceiver
The Chauvet D-FI Hub is a versatile wireless DMX module that can act as either a transmitter or receiver. Ideal for longer DMX chains and hard to access areas – great for mobile entertainers.
D-Fi™ Hub is a compact, easy-to-use DMX unit that functions as either a transmitter or receiver. For more stable communication between units, it operates on a 2.4 GHz frequency range and includes an “auto” function which automatically finds the best frequency and syncs the units effortlessly. You can wirelessly synchronize an unlimited number of D-Fi™-ready fixtures simultaneously, and operate them using the simple navigation on the OLED digital display.
Features
- Compact, easy-to-use wireless D-Fi™ transmitter and receiver in a single unit
- Wirelessly synchronize an unlimited number of D-Fi™-ready fixtures and receivers simultaneously
- Built-in options include manual or automatic channel selection
- Simple navigation and text readout using the OLED digital display
- Mounting options include built-in hook and loop fastener strap, keyhole mounting holes, M10 and M12 threaded holes for direct mounting to truss
- Fully FCC/RTTE compliant
Spec
DMX Connectors: 3-pin XLR
Operating Frequency: 2.412 to 2.484 GHz
Antenna connection: RP-SMA
Max Unobstructed Distance: 200 m
Input Voltage: 9 VDC, 500 mA (external power supply: 240 VAC, 50 Hz)
Power and Current: 4 W, 0.1 A @ 230 V, 50 Hz
Weight: 0.6 kg
Size: 102 x 82 x 41 mm
Approvals: CE, FCC
