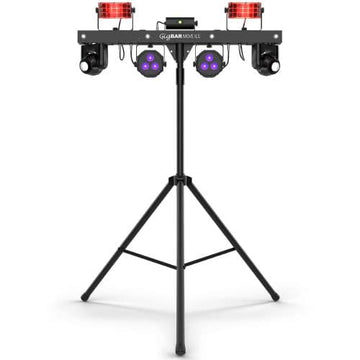

Chauvet DJ GigBar Move ILS Complete Light Set

Chauvet DJ GigBar Move ILS Complete Light Set

The GigBar Move ILS is a 5-in-1 pack-and-play system that controls the Integrated Lighting System (ILS), Chauvet’s patent-pending lighting technology. Specifically, it expands the possibilities of creating an impressive light show and provides synchronization quickly and easily.

ILS Ecosystem

GigBAR Move ILS can control any product in the ILS ecosystem, wired or wirelessly. GigBAR Move ILS has moving heads, derbies, washes, a laser, and a strobe effect pre-mounted onto a single bar. Easily control the unit via stand-alone, DMX, wireless RF remote or wireless footswitch so you can get to the good times sooner.

Key Highlights:

• 5-in-1 lighting system pre-mounted on a single bar
• Integrated Lighting System (ILS)

Features

• 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
• Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
• Control any ILS-enabled fixture wirelessly with a built-in D-Fi transceiver
• Use the included RF remote to trigger the built-in shows without needing line of sight
• Separate colour and gobo wheels in moving heads allow for creative programming
• Totem Mode keeps the moving heads focused on the dance floor
• Easy navigation and access to all functions, directly from the full-colour LCD display
• Safely mounts to truss or ceilings using the 3/8 in threaded inserts
• System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
• Built-in UV LEDs illuminate fluorescent objects and make them pop
• Individual control of each effect ensures your show looks the way you need it to
• Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

Spec

DMX Channels: 3, 27 or 46
DMX Connectors: 3-pin XLR
Pan and Tilt: 540°/180°
Colours (moving head): 7 + open, split colours, continuous scroll at variable speeds
Gobos (moving head): 7 + open, continuous scroll at variable speeds
Light Source (pars): 3 LEDs (hex colour RGBAW+UV) 3.5 W (2 A), 50,000 hours life expectancy
Light Source (strobe): 4 LEDs (cool white) 5 W (1 A), 50,000 hours life expectancy
Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 1W (1 A), 50,000 hours life expectancy
Light Source (moving head): 1 LED (cool white) 10 W (3 A), 50,000 hours life expectancy
Light Source (Laser): 650nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode
Strobe Rate: 0 to 20 Hz
Beam Angle (moving head): 11°
Beam Angle (pars): 19°
Beam Angle (strobe): 8°
Field Angle (pars): 30°
Field Angle (strobe): 18°
Coverage Angle (derby): 131°
Coverage Angle (laser): 93°
Fits Tripod Size: 1.5 in (37.4 mm)
Illuminance (pars): 1,205 lux @ 2 m (per par)
Illuminance (moving head): 1,056 lux @ 2 m (per head)
Illuminance (strobe): 86lux @ 2 m
Power Linking: 7 units @ 120 V; 12 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 250 W, 3 A @ 120 V, 60 Hz; 248 W, 1.8 A @ 230 V, 50 Hz
Weight (bar only): 23.4 lb (10.7 kg)
Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
Approvals: CE, UKCA, RoHS, FCC, FDA
Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
Footswitch Operating Frequency: 433 MHz
Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
Max Unobstructed Distance (D-Fi): 600 ft (183 m)
Footswitch Battery: 9 V alkaline
Included Controllers: RF remote, wireless footswitch
Cable Length: 10 ft (3 m)
Tripod Thickness: 1.37 in (35 mm)
Optional Controllers: RF
RF Remote Battery: 23A, 12 V alkaline
