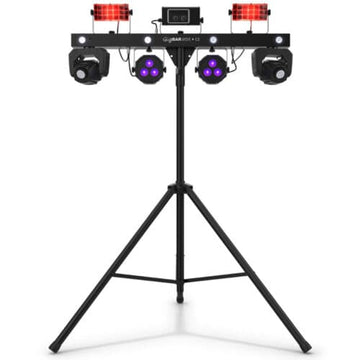

Chauvet DJ Gigbar Move Plus ILS LED Multi-Effect Light

Chauvet DJ Gigbar Move Plus ILS LED Multi-Effect Light

The future of easy lighting synchronisation is here with Chauvet DJ Gigbar Move Plus ILS. In fact, this powerful member of the Gigbar family controls the Integrated Lighting System (ILS). ILS is the new, dynamic lighting technology that provides an advanced, coordinated light show across multiple fixture types. Gigbar Move ILS can control any ILS-enabled fixture, wired or wirelessly.

5-in-1 Lighting System

Gigbar Move ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and a strobe effect. In fact, they are all pre-mounted on a single bar. Additionally, easy access to all the powerful 32-watt moving head functions can be accessed from the full-colour LCD. Furthermore, Totem Mode keeps the moving heads focused on the dance floor.

Professional Stage Show Light

Built-in UV LEDs illuminate fluorescent objects for dazzling blacklight effects. Gigbar Move ILS gives you individual control of each effect to ensure your show looks the way you need it to but gone is the need to aim a remote directly at the unit! Following this, the included RF remote triggers built-in shows without needing line of sight operation.

Lastly, other easy control options include stand-alone mode, DMX, or wireless footswitch.

The Gigbar Move Plus ILS package includes:

• Tripod.
• Wireless foot switch.
• RF remote.
• FREE carry bags to ensure a quick setup.

Features

• 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
• Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
• Separate color and gobo wheels allow for creative programming
• Totem Mode keeps the moving heads focused on the dance floor
• System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
• Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
• Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

Spec

DMX Channels: 3, 28, or 50
Colours (moving head): 9 + open, split colours, continuous scroll
Gobos (moving head): 9 + open, continuous scroll
Light Source (pars): 3 LEDs (hex colour RGBAW+UV) 6 W (2 A)
Light Source (strobe): 4 LEDs (cool white) 5 W (1.2 A)
Light Source (derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A)
Light Source: (moving head) 1 LED (cool white) 32 W, (3 A)
Light Source: (Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
Strobe Rate: 0 to 30 Hz
Stand Height: 1.5 to 2.5 m
Beam Angle: Moving head: 17° Pars: 22° Strobe: 30°
Coverage Angle: Derby: 131° Laser: 93°
Illuminance: Pars: 1,205 lux @ 2 m (per par) Moving head: 5,140 lux @ 2 m (per head) Strobe: 130 lux @ 2 m
Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 250 W, 3 A @ 120 V, 60 Hz
Optional Controllers: RF
