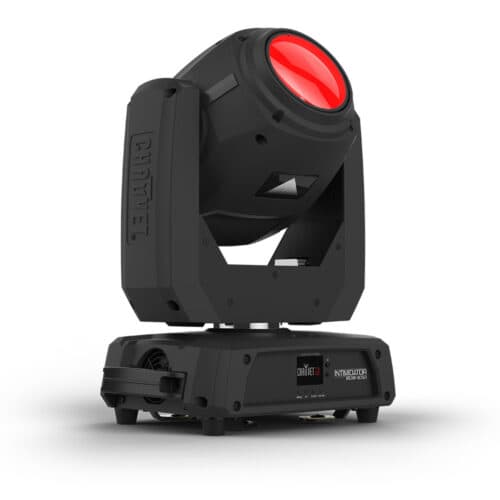

Chauvet DJ Intimidator Beam 140SR Moving Head Beam

The Chauvet DJ Intimidator Beam 140SR is an all-new cutting-edge moving head beam fitted with an intense 140W discharge light engine. It features an impressive 16-facet prism that splits the beam and intensifies the excitement. The motorized frost filter converts the tight beam to a wide wash for different applications as the built-in totem mode keeps the light on and over the dance floor.

The Intimidator Hybrid 140SR is the MUST HAVE fixture for bands, DJs, venues, and production companies wanting to step up their lighting show. It’s super easy to use and features onboard power linking saves time running extension cords to every fixture. The unique ¼-turn hanging bracket also allows for single or dual clamp mounting options. Fits best in the CHS-50 VIP gear bag.

The Intimidator Beam 140SR offers Pan and Tilt between 540°/270°. It also provides Pan and Tilt Ranges of 180°, 360°, 540° pan/90°, 180° and 270° tilt. The Light Source includes an Osram Sirius HRI 140W discharge lamp with a life expectancy of 6,000 hrs. When linking additional units together, the Intimidator Beam 140SR offers 3x power linking @ 120 V or 6x units @ 230 V.

Connectivity

The rear panel of the Intimidator Beam 140SR offers power IN/OUT so you can daisy-chain additional units together. This feature allows you to save running additional cables from the original power source. Both DMX IN and OUT are also present for linking multiple units together. The front panel offers an LCD display with Menus so you can customise the operations digita

Features

• Cutting-edge moving head beam fitted with an intense 140 W discharge light engine
• The impressive 16-facet prism splits the beam and intensifies the excitement
• Motorized frost filter converts the tight beam to a wide wash for different applications
• Built-in totem mode keeps the light on and over the dance floor
• Unique ¼-turn hanging bracket allows for single or dual clamp mounting options
• Non-DMX control with the optional IRC-6 wireless remote
• On-board power linking saves time running extension cords
• Motorized Focus
• Fits best in the CHS-50 VIP gear bag

Spec

DMX Channels: 8 or 14

DMX Connectors: 3-pin XLR

Pan and Tilt: 540°/270°

Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt

Colours: 14 + white, split colours, continuous scroll at variable speeds

Gobos: 17 + open (all aluminium), fixed, continuous scroll at variable speeds

Light Source:

(included): Osram Sirius HRI 140 W discharge lamp (6,000 hrs)
(optional): Osram Sirius HRI 132 W discharge lamp (6,000 hrs)

Strobe Rate: 0 to 20 Hz

Beam Angle: (beam): 3°
(frost): 21°

Illuminance: (5 m): 381,500 lux
(15 m): 37,900 lux

Lumens: 934

Power Linking: 3 units @ 120 V; 6 units @ 230 V

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 228 W, 2 A @ 120 V, 60 Hz
224 W, 1.2 A @ 230 V, 50 Hz

Weight: 25.8 lb (11.7 kg)

Size: 12.7 x 8.6 x 16.5 in (322 x 220 x 420 mm)

Approvals: CE, MET

Optional Controllers: IRC-6

Prism: 16-facet round, bidirectional rotation at variable speeds

WHAT’S INCLUDED

• Power cord
• Hanging bracket
• Warranty card
• Quick Reference Guide
