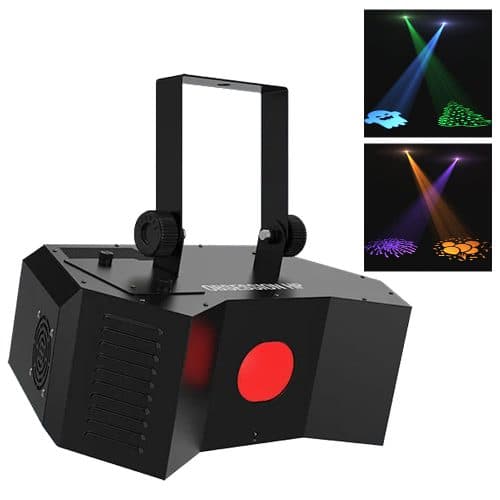

Chauvet DJ Obsession-HP LED Effect Light
The Chauvet DJ Obsession-HP LED Effect Light provides animated gobo light shows for your staging needs. Also allowing you to interchange Gobos for a truly customized event in any season.
Features
- Compact LED effect light fitted with a 100W LED projects multi-colored, rotating gobos
- Increase design flexibility and effects with inter-changeable gobos
- Easily generate complex looks using the rotating gobo wheel plus mirror dish
- Generate a synchronized show in Master/Slave mode with up to 2 units
- Separate color and gobo wheels allow for creative programming
- Includes 10 popular holiday gobos
- Compatible with IRC-6 for flexible control over all features
- Save time running cables and extension cords by power linking multiple units
- Fits best in the CHS-40 VIP Gear Bag
Spec
WHAT’S INCLUDED
- Obsession HP
- Power cord
- Quick Reference Guide
DMX Channels: 2 or 8
DMX Connectors: 3-pin XLR
Colors: 6 + white, split colors, continuous scroll at variable speeds
Gobos: (7 metal), rotating, indexing, interchangeable, continuous scroll at variable speeds
Light Source: 1 LED (cool white) 100 W, (4 A), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
PWM Frequency: 4 KHz
Coverage Angle: 116°
Power Linking: 3 units @ 120 V; 6 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 176 W, 2.2 A @ 120 V, 60 Hz
171 W, 1.3 A @ 230 V, 50 Hz
Gobo Size: 18 mm outside, 12 mm image, 5 mm max thickness
Weight: 10.2 lb (4.7 kg)
Size: 14.96 x 8.26 x 12 in (380 x 233 x 305 mm)
Approvals: CE
Optional Controller: IRC-6
