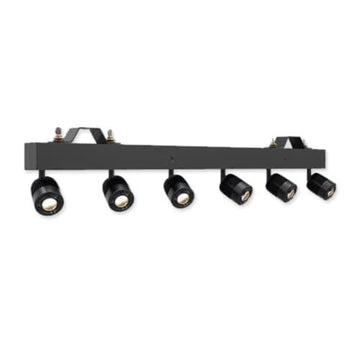

Chauvet DJ Pinspot Bar High Output 6 Pinspots

The Chauvet DJ Pinspot Bar is a high-output bar with 6 independent pin spots. Designed to replicate traditional incandescent lamps, the Pinspot Bar offers independent control over each head. Giving you true flexibility and full-featured programming capabilities. So whether you’re looking to create subtle glows for appetizing buffets, or light up inspiring exhibits and highlight special effects. You have all the pin spotting power with Pinspot Bar.

Features

• High-output bar with 6 independent pinspots designed to replicate traditional incandescent lamps
• No messy cables ensure a clean and elegant look for any upscale event
• Independent control of each head offers true flexibility and programming capabilities
• Includes various beam diffusers and 2700 K filters to help achieve the desired look
• Control via the on-board digital display, DMX, a wireless IRC-6 remote or D-Fi USB dongle
• A pair of included Omega brackets allow for multiple mounting options including pipe and drape
• PowerCon compatible power input and power linking saves time running cables

Spec

DMX Channels: 1, 6 and 11

DMX Connectors: 3- and 5-pin XLR

Light Source: 6 LEDs (warm white) 15 W, (3.6 A), 50,000 hours life expectancy

PWM Frequency: 1000 Hz

Beam Angle: 5°

Field Angle: 11°

Illuminance: 7,707 lux @ 2 m (per pod)

Power Linking: 8 units @ 120 V; 13 units @ 230 V

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 171 W, 1.4 A @ 120 V, 60 Hz
191 W, 0.8 A @ 230 V, 50 Hz

Weight: 9.4 lb (4.3 kg)

Size: 39 x 4.6 x 5 in (1000 x 119 x 131 mm)

Approvals: CE, RoHS

Color Temperature: 4000 K

CRI: 81

Bracket Mounting Hole: 13 mm

Optional Controllers: IRC-6, D-Fi USB
