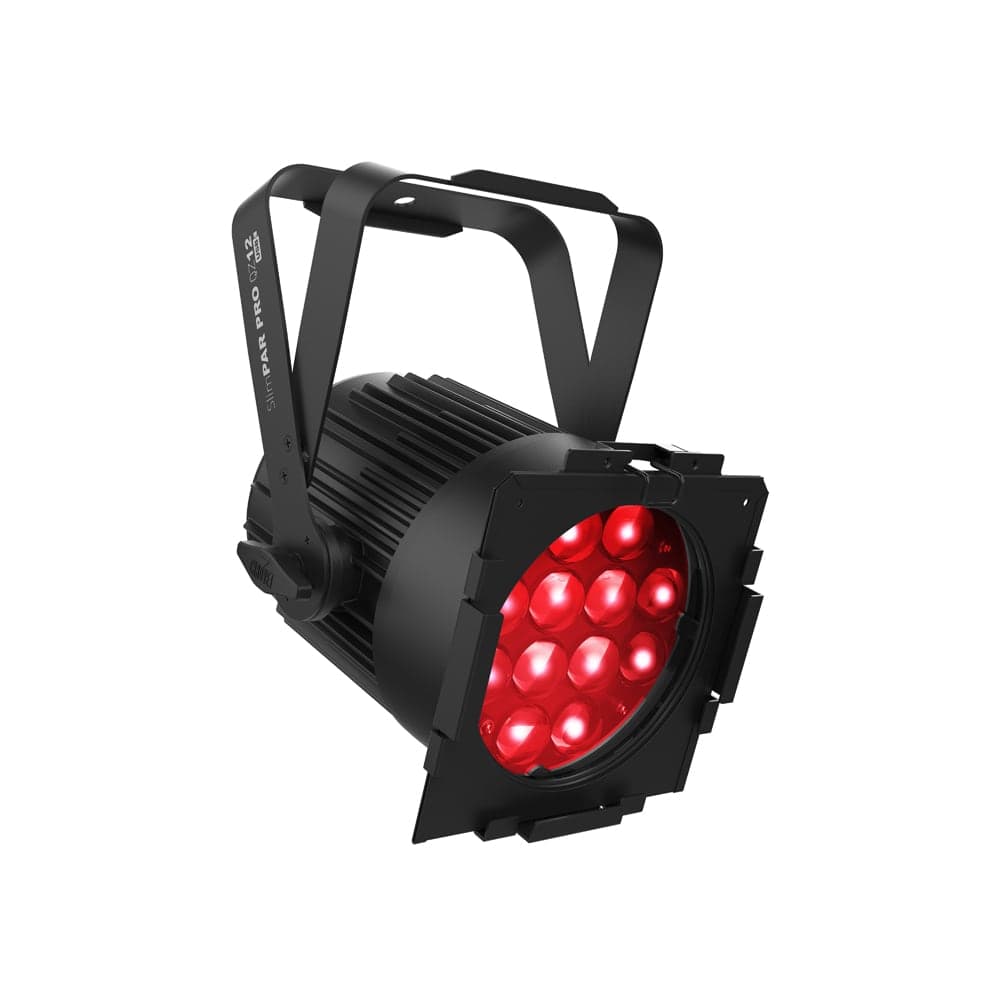

Chauvet DJ SlimPAR Pro QZ12USB LED Parcan with Motorised Zoom



Chauvet DJ SlimPAR Pro QZ12USB

The Chauvet DJ SlimPAR Pro QZ12USB is a powerful Quad colour (RGBA) wash to join the popular SlimPAR Pro range, and with motorised zoom allows you to create a whole new dimension to your lighting shows. Designed for mobile production, and entertainers this new LED par is D-Fi USB compatible, as well as supporting both 3 and 5 pin DMX connections for complete control. The fixture includes a specialized built-in gel frame  holder and 7½" accessory slot to hold barn doors (sold separately) at the same time. The sturdy PowerCON®-compatible power input/output connections provide reliable and secure power connection and linking. Another great feature of the SlimPAR Pro QZ12 USB is the built-in use selectable dimming curves that simulate various halogen filaments for that traditional fade to black effect. High-frequency LED dimming give flicker-free output ideal for video work and fanless design means 100% silent operation.

Features

• Robust wash light with motorized zoom designed for mobile lighting professionals
• Compatible with the 7.5” Barndoors for added light control

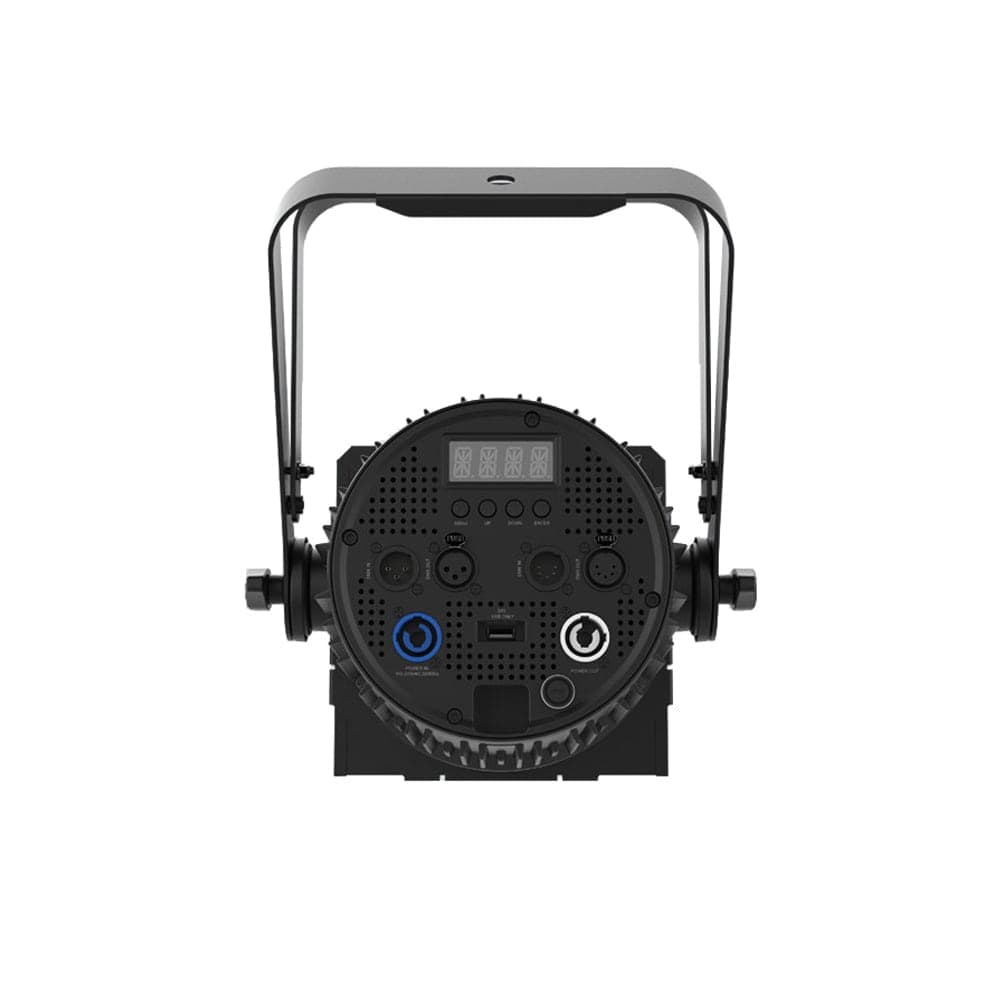

• powerCON®-compatible power input/output connections for power linking
• Fanless design ensures 100% silent operation
• Flexible control options with onboard 3- and 5-pin DMX connectors
• Flicker-free on video due to the high-frequency LED dimming
• D-Fi USB compatibility for wireless master/slave or DMX control
• Built-in dimming curves simulate halogen filaments
• Fits best in the CHS-40 VIP gear bag
• Compatible with the OF 75 Barn Doors

Spec

DMX Channels: 5, 6 or 11

DMX Connectors: 3- and 5-pin XLR

Light Source: 12 LEDs (quad-color RGBA) 10 W (2.7 A), 50,000 hours life expectancy

Strobe Rate: 0 to 29 Hz

PWM Frequency: 1,200 Hz

Illuminance:

• (10°): 16,070 lux @ 2 m
• (50°): 1,216 lux @ 2 m

Power Linking: 17 units @ 230 V

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 112 W, 0.4 A @ 230 V, 50 Hz

Zoom Angle: (beam to field): 10° to 50°

Weight: 4.6 kg

Size: 234 x 269 x 318 mm

Approvals: CE, MET, RoHS

Optional Controllers: D-Fi USB
