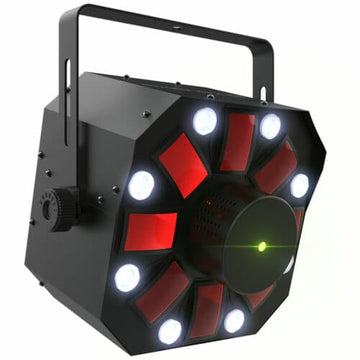

Chauvet DJ Swarm 5 FX ILS LED DJ Effect Light

Chauvet DJ Swarm 5 FX ILS LED DJ Effect Light

Chauvet DJ Swarm 5 FX ILS is a 3-in-1 LED light that includes a RGBAW rotating derby, red/green laser, and white strobe effect. In addition, its compatibility with cutting-edge Integrated Lighting System (ILS) makes coordinating the Swarm 5 FX easy amongst light shows with different fixtures.

Swarm Effect

This Swarm 5 FX ILS light projects thousands of red and green laser beams creating the classic ‘swarm’ effect. Spark up the look of any event by creating customised designs and effects with separate colour and program controls.

Connections

Swarm 5 FX ILS also features D-Fi USB compatibility, perfect for use with the ILS connection. Additionally, use the wireless Master/Slave or DMX control. The Swarm 5 Fx has even greater flexibility with automated and sound-activated programs. Otherwise, use Master/Slave and DMX modes and separate colour and program control. Furthermore, create a synchronised light show and save time running cables and extension cords by power linking multiple units.

In Summary, Swarm 5 FX ILS Key Features:

• 3-in-1 LED Light
• Separate program and colour controls.
• ILS compatible with D-Fi USB.

Features

• 3-in-1 LED light that includes an RGBAW rotating derby, red green laser, and white strobe effect
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Integrated Lighting System (ILS) compatible with wireless connection via D-Fi USB
• Laser projects thousands of red and green laser beams
• Operation allows for separate colour and program control
• Increase control options using automated and sound activated programs, or Master/Slave and DMX modes
• Save time running cables and extension cords by power linking multiple units
• Fits best inside the CHS-40 VIP gear bag

Spec

DMX Channels: 9
DMX Connectors: 3-pin XLR
Light Source (Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 3 W, (300 mA), 50,000 hours life expectancy
Light Source (strobe): 8 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy
Light Source (laser): 520 nm/30 mW (green) laser diode, 650 nm/100 mW (red) laser diode
Strobe Rate: 0 to 20 Hz
Beam Angle (strobe): 17°
Field Angle (strobe): 35°
Coverage Angle (laser): 100°
Coverage Angle (Swarm): 65°
Illuminance (strobe): 823 lux @ 2 m
Power Linking: 26 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 62 W, 0.3 A @ 230 V, 50 Hz
Weight: 4.5 kg
Size: 248 x 298 x 310 mm
Approvals: CE, FDA, RoHS, UKCA
