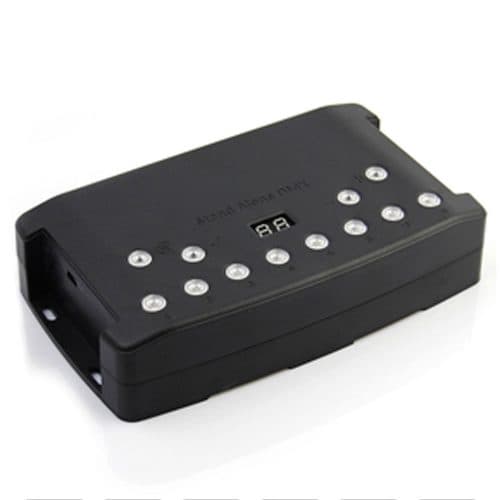

Chromateq CQSA-E1024 USB & Ethernet DMX Controller

The CQSA-E1024 is a 5-in-1 Stand Alone DMX controller with DMX, I/O, Art-Net Out, sACN Out, NODE, and Splitter. It’s an essential tool for all your lighting projects, performances, and installations.

Features

• Ethernet to DMX device
• 2×512 or 1024 channels in/out on PC and Stand Alone
• ETHERNET port for Local Area Network (LAN, WLAN)
• Wi-Light 2 APP from mobile (Android + iOS, LAN, WLAN, Internet)
• Art-net 2×512 on Ethernet (SD required, 8×512 per device in option)
• sACN 2×512 on Ethernet (SD required, 8×512 per device in option)
• Node 2 ports, Art-Net to DMX decoder and converter (DHCP, Fix IP)
• Multi Zones Play up to 5 scenes a time (Stand alone)
• SD Card memory (Micro SD, all FAT format, up to 256 Gb)
• Splitter mode and merging DMX
• Internal memory (No SD card required)
• 128 devices max on Network, 12 max on USB

Spec

• Mini USB 2.0 (Input) – 5V. DC
• Power input of 5 to 24V. – 0.2A (DC connector)
• 3 Pins XLR (XLR5 optional)
• RJ45 connectors for I/O and triggers
• Size & Weight: H: 4 cm ; W: 16 cm ; L: 10 cm ; 0.2 Kgs
• Black housing with 4 mounting holes, ABS Plastic
• Operating temperatures: -40 to +85 Cº
• Certifications: CE, RoHS, LVD
• IP rating : IP40
• 3 years of International Warranty
