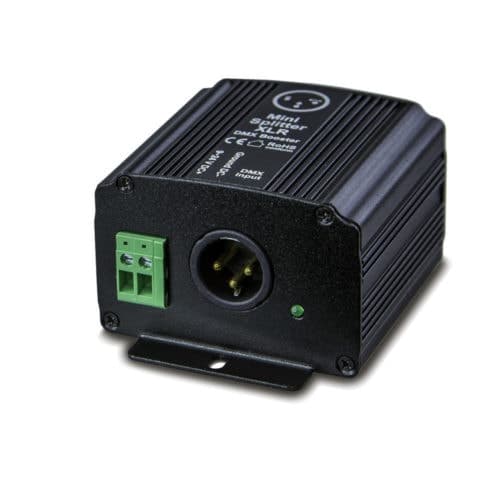

Chromateq DMX Splitter XLR Compact 2-to-1 Splitter



Chromateq DMX Splitter

The Chromateq DMX Splitter is a compact 2:1 DMX splitter is an essential tool for all types of projects. Capable of operating as a splitter, isolator, protector, booster and amplifier for your DMX source. Fitted with 3-pin DMX connectors you can duplicate your DMX signal easily into 2 identical separate lines. The Splitter will also retrieve your DMX signal in case of lost signal or drop. The Splitter is built into a compact, and easy to use design weighing only 150 grams. A must have tool for any lighting professional wanting to get the most out of their lighting system.

Features

• Compact DMX Splitter 2:1
• Can operate as a Splitter, Isolator, Booster, Protector, and Amplifier for DMX
• DMX signal with Opto Insulation (Input ~ Outputs)
• 3-pin XLR connectors for DMX (x2 Outputs)
• 1 Screw connector for the external 9~36V. DC power
• Strong Aluminum housing (easy installation)

Spec

Inputs: 3-pin DMX Input (fuse protected, 512 channels)

Outputs: 2x 3-pin DMX Output (fuse protected, 512 identical channels)

DC Input : 9 ~ 36 V. DC ; 0.5 A

Size : H: 48 mm ; W: 70 mm ; L: 89 mm

Weight : 0.15 Kgs

Operating temperatures: -25°C. ~ + 70°C.

Certification: RoHS and CE certified
