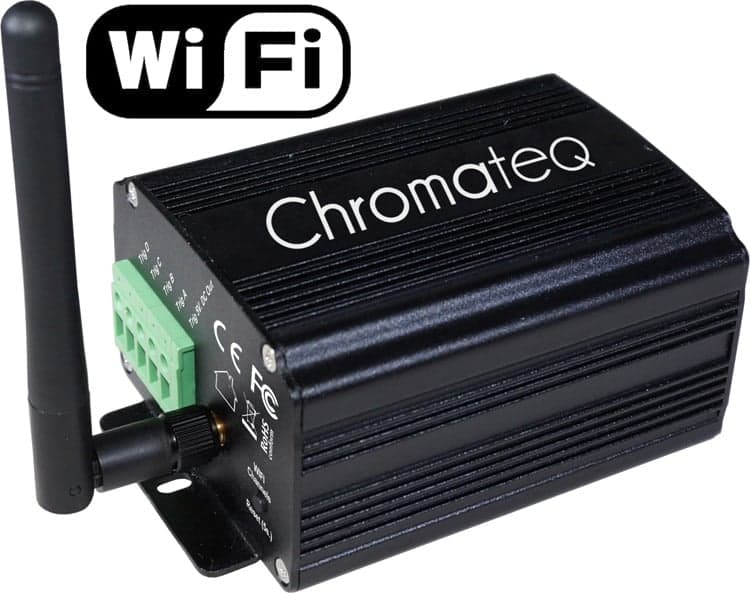

Chromateq LPSA-WiFi Stand Alone WiFi DMX Interface
The Chromateq LPSA-WiFi is a compact and versatile DMX interface for the LED Player and DMX Pro DMX software. Featuring a completely wireless connection to your PC or Mac by generating its own WiFi network. It is the ideal controller for fixed installation and architectural projects.
A unique feature of the LPSA-WiFi is the ability to save and recall up to 15 scenes totalling 4,000 steps with 512 channels of DMX (1 universe), allowing you to trigger your lighting shows without needing to connect your computer. To trigger the scenes in standalone mode you can use the external trigger terminals, or connect your preferred device using the Wi-Light app. The app will allow you to play the scenes, manually mix and control colour, control playback speed, and more! The LPSA-WiFi also supports up to 3 zone playback, allowing you to trigger 3 scenes simultaneously, great for architectural applications or lighting shows with 2 / 3 setups that need to be controlled independently.
This is the perfect DMX interface for any lighting designer wanting intuitive control of their lights without the need to carry around and connect a laptop to every show or display the create.
Features
- Supports 512 channels of DMX
- Built-in WiFi connectivity for PC / Mac devices
- Manual control in stand-alone mode with the Wi-Light APP for Android and iOS
- Screw terminals for all wire external connections (easy to install)
- Scene selection list via Wi-Light in Standalone mode
- Live RGBW Colour, speed and Dimmer adjustment via Wi-Light in Stand Alone mode
- Take manual live control or each individual channel (SA)
- Real Time Clock triggers for scenes (weekdays, month, year, SA)
- Master/Slave mode to interconnect 16 interfaces (SA)
- Automatic Scene Recovery if the power is accidentally cut off (SA)
Spec
Supported DMX Channels: 512 (connected and stand alone)
DMX Connector: 3-Pin XLR
Stand Alone Function: Yes
Memory Capacity: 4000 steps with 512 channels, 100 000 steps with 16 channels
External triggers: x4 5V contacts, multiplexed to 15 contacts max
Master/Slave connection: 3 wires for 16 connected interfaces max
WiFi Frequency: 2.4 – 2.497 GHz
Power Requirements: 5V DC (via the terminal contacts)
Dimensions: 48 x 70 x 127mm
Weight: 0.25 kg
Certifications: CE ; RoHS
For full product details see the online datasheet
