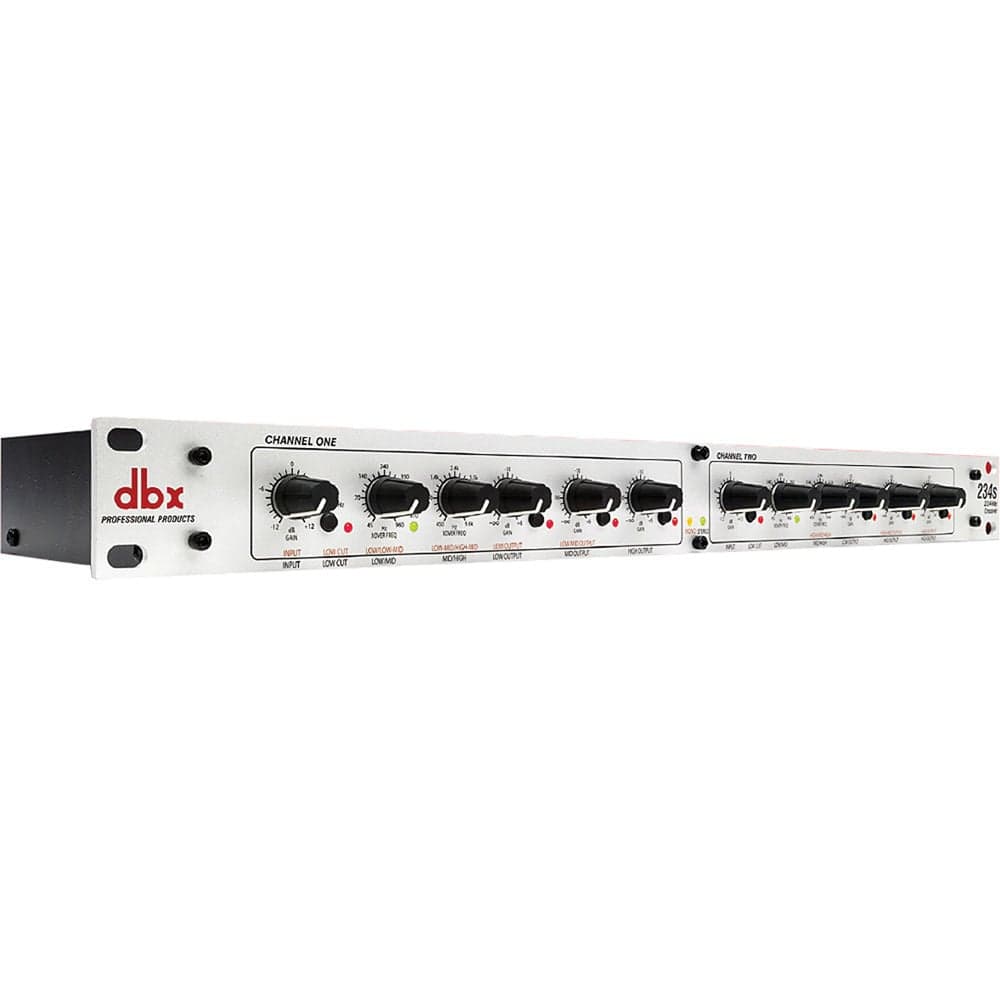

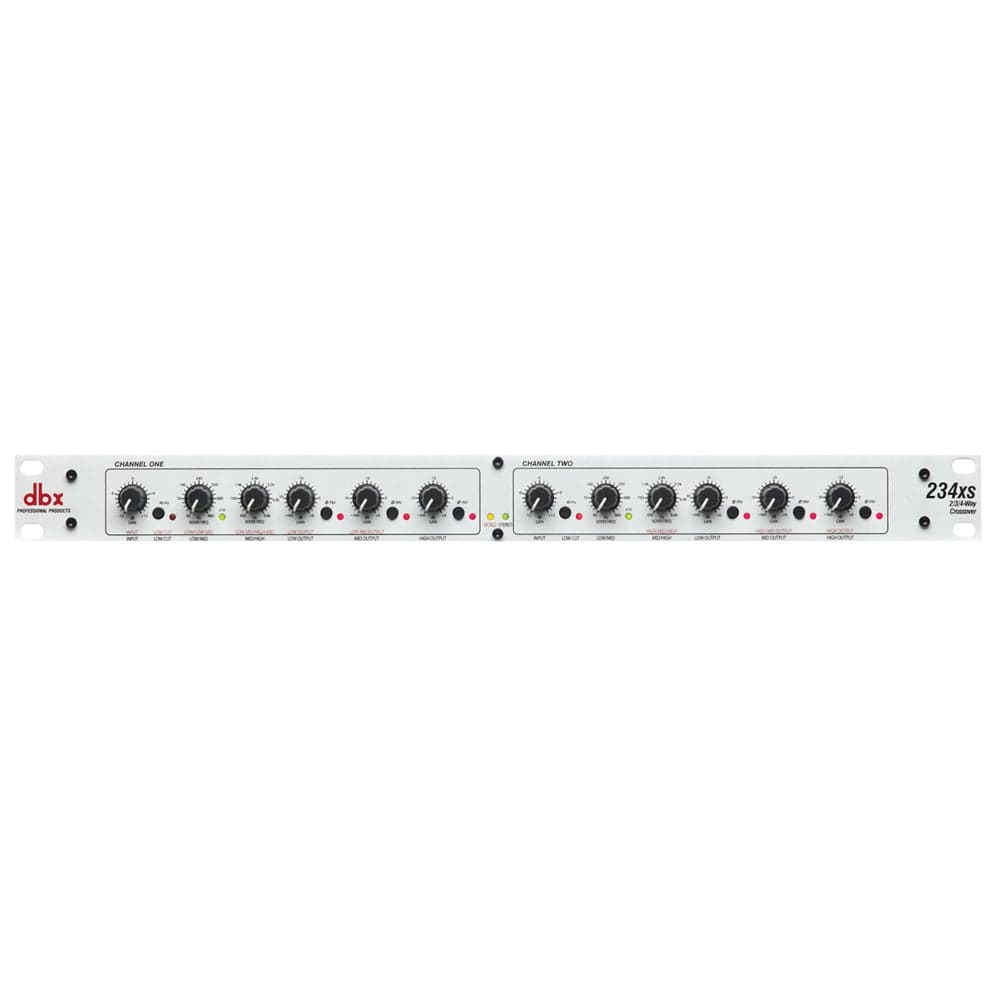

DBX 234XS Crossover 2 and 3-Way Stereo / 4-Way Mono
The DBX 223XS Crossover is a high-quality professional 2/3-way Stereo / 4-Way Mono crossover designed to split your frequencies, essential for maximising the efficiency and sound of your PA system. Easy to sue, and is 19-Inch rack mountable.
Features

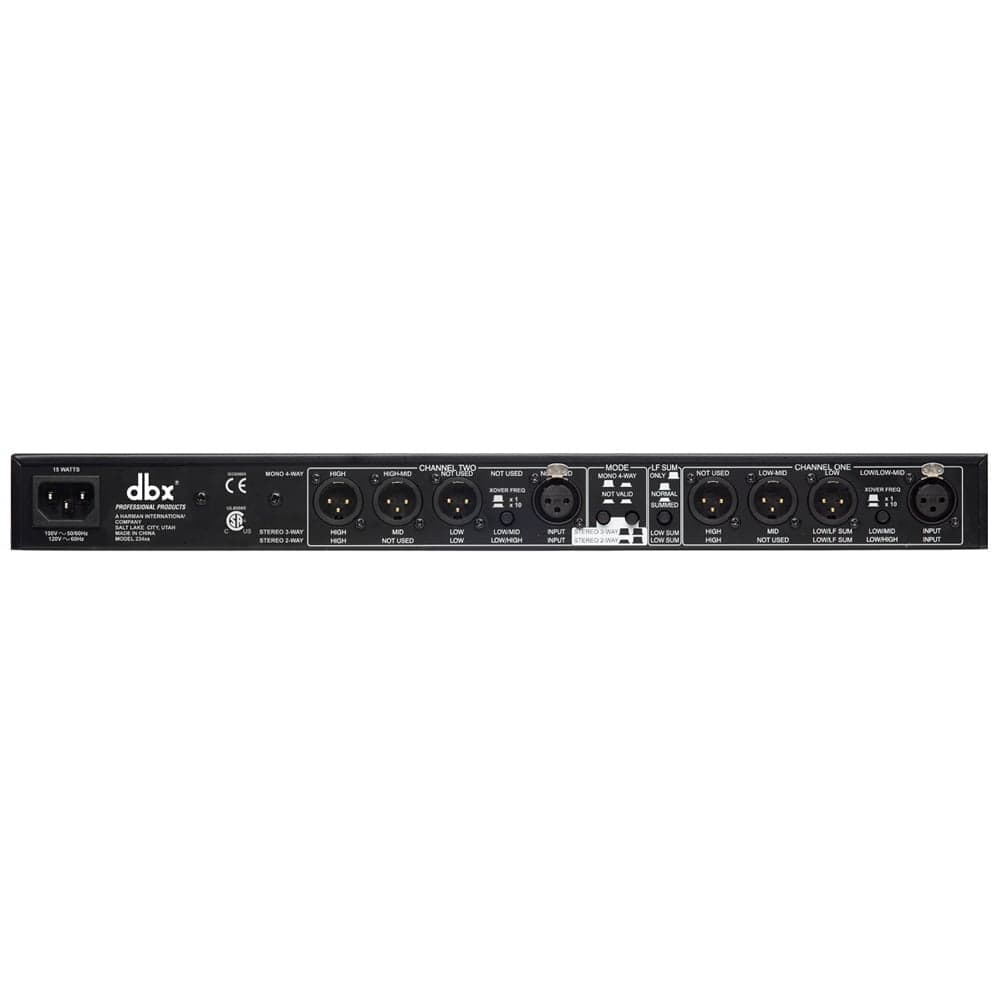

- XLR balanced ins and outs
- Mode switches for mono 4-way or stereo 2-way/3-way operation
- Low frequency summed (subwoofer) output
- x10 range switch on both channels
- 40Hz high pass (low cut) filter both channels
- Phase reverse switch on all outputs
- Individual level controls on all outputs
- 24dB per octave Linkwitz-Riley filters (the professional standard)
- Stereo/Mono status LEDs indicate the selected mode
- CSA NRTL/C approved
- CE compliant
Spec
Inputs: 2x Balanced XLR (line level)
Outputs:
(Stereo 2-Way Mode):4x Balanced XLR (2x high / 2x low)
(Stereo 3-Way Mode):4x Balanced XLR (2x high / 2x mid / 2x low)
(Mono 4-Way Mode): 4x Balanced XLR (1x high / 1x high-mid / 1x low-mid / 1x low)
Bandwidth: 20Hz to 20kHz, +/-0.5dB
Frequency Response: 3 Hz to > 90 kHz, +0/-3 dB
Signal to Noise Ratio Ref: +4 dBu, 22 kHz measurement bandwidth
Signal-to-Noise:
– Low Output: >94dB
– Low/Mid Output:(mono only) >94dB
– Mid Ouput: (mono only) >93dB
– High/Mid Output: (mono only) >92dB
– High Output: >90dB
Dynamic Range: > 106 dB, un-weighted, any output
THD+Noise: < 0.004% at +4 dBu, 1 kHz; < 0.04% at +20 dBu, 1 kHz
Crossover Frequencies:
(Stereo Mode): Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz
(Mono Mode): Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz; Mid/High: 450 Hz to 9.6 kHz
Crossover Filter Type: Linkwitz-Riley, 24 dB/octave, state-variable
Operating Voltage: 230V AC / 50 HZ
Power Consumption: 15W
Dimensions: 44 x 483 x 175mm
Unit Weight: 1.8 kg
