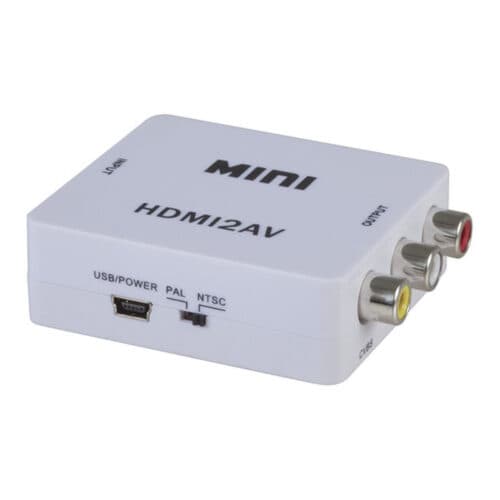

Digitech AC1773 HDMI to Composite AV Converter
Digitech AC1773 HDMI to Composite AV Converter with Power Supply
The Digitech AC1773 is a HDMI to Composite AV Converter. This unit will convert your digital HDMI signal to a standard composite audio/video signal. This makes AC1773 very handy for adapting a DVD player or gaming console to an older TV, since many of these new devices no longer offer analogue outputs. Supports PAL and NTSC standards. USB cable and power supply are included to provide power to the AC1773.
Overall Key Features:
- Quality Conversion
- Plug & Play
- Digital to Analogue
- Input Video Signal: HDMI
- Output Video Signal: Composite RCA
Features
- Quality Conversion
- Plug & Play
- Digital to Analogue
Spec
Weight: 42g
Switcher/Converter Type: Converter
Input type: HDMI
Input Connection: HDMI Type-A
Output Type: Composite Video and Audio
Output Connection: 3 RCA Connection
Number of inputs: 1pc
Number of Outputs: 1pc
Power from: Plugpack
DC Plugpack Voltage: 5V
Video Resolution
Maximum Vertical Resolution: 1080Pixel
Maximum Horizontal Resolution: 1920Pixel
Supported Display Resolution: 1080p (1920 x 1080)
Input Video Signal: HDMI
Output Video Signal: Composite RCA
HDMI Input Resolution:
– 640 x 480 @ 60Hz
– 800 x 600 @ 60Hz
– 1024 x 768 @ 60Hz
– 1280 x 720 @ 60Hz
– 1280 x 1024 @ 60Hz
– 1360 x 768 @ 60Hz
– 1600 x 1200 @ 60Hz
– 1920 x 1080 @ 60Hz
– 480i/p @ 60Hz
– 576i/p @ 60Hz
– 720p @ 50/60Hz
– 1080i/p @ 50/60Hz
Supported TV Standard: PAL/NTSC M.(NTSC-J)
Power Consumption: 5W
