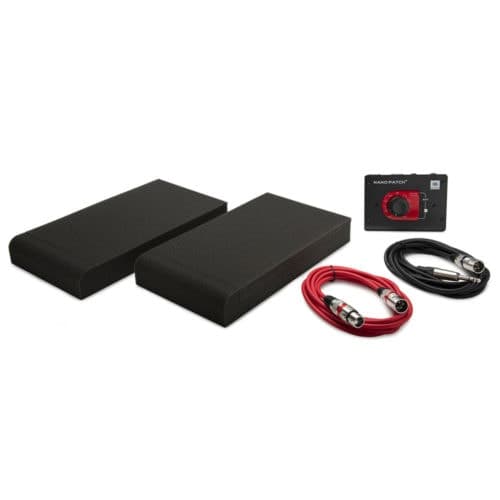

JBL ACTPACK Nanopatch with Cables and Isolation Pads

JBL ACTPACK Nanopatch with Cables and Isolation Pads is is a versatile passive volume controller in a compact desktop format. It can be used as a physical volume attenuation knob for audio software applications, when connected between a computer audio interface, or soundcard master output and a pair of active (powered) monitor speakers.

Features

• 2 x XLR/TRS 1/4″ Combination Inputs
• Single 1/8″ Mini-Jack Input
• Single 1/8″ Mini-Jack Output
• 2 x 1/4″ Output Connectors
• 10 Hz to 40 kHz Frequency Response
• Compact Desktop Format

Spec

Analog Audio Inputs

• Input 1 2 x combination XLR/TRS 1/4″ (6.3 mm) balanced/unbalanced
• Input 2 1/8″ (3.5 mm) mini-jack
• Maximum Input Level +26 dB
• Input Impedance 5 kOhms

Analog Audio Outputs

• Output 1 2 x TRS 1/4″ (6.3 mm) balanced/unbalanced
• Output 2 1/8″ (3.5 mm)
• Maximum Output Level > +26 dB
• Impedance 0 to 5 kOhms

Performance

• Frequency Response: 10 Hz to 40 kHz (0/0.15 dB)
• Signal to Noise: Better than -120 dB
• Channel Cross Talk: > -80 dB
• Distortion: < 0.0004%
• Dimensions (W x D x H): 130 x 95 x 51 mm
• Weight: .34 kg
