JBL BRX308 Pack – Portable Line Array Setup

JBL BRX308 Pack – Portable Line Array Setup

This is the Perfect Portable Line Array Setup. This pack includes 2x JBL BRX308-LA Line Array 8″ Subwoofer , 1x JBL BRX325SP 15″ Subwoofer with Amp and DSP, and 1x JBL BRX308PM Pole Mount and Adaptor Kit.

• 2 x BRX308-LA: Professional JBL performance with high SPL capabilities and ultrawide 110° horizontal dispersion; easy-to-use rigging hardware allows multiple boxes to be arrayed to optimize vertical coverage
• 1 x BRX325SP: Professional JBL performance with high SPL capabilities; easy-touse rigging hardware, built-in amplification and plug-and-play DSP for easy setup
• 1 x BRX308-PM: Pole mount and adapter allow mounting of up to two BRX308-LA Line Array Elements

Features

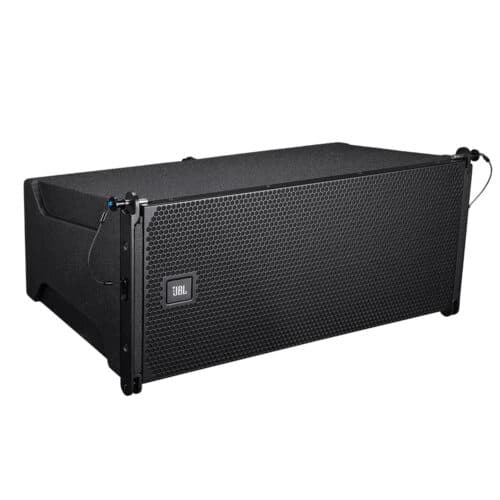

BRX308-LA

• Dual 8-inch LF drivers and 3-inch titanium compression driver
• Frequency range: 80 Hz–20 kHz (-10 dB)
• 110° horizontal x 12° (variable) vertical dispersion
• 136 dB maximum SPL
• Variable inter-box angles
• I/O: two 4-pole NL4 connectors wired in parallel for IN/THRU use

BRX325SP

• Dual 15-inch woofers
• 136 dB maximum SPL
• Built-in DSP includes crossover management, EQ, limiting, correction filters, phase-corrected processing and driver-protection circuitry
• Integrated 1,000 watt-per-channel, 6-channel amplifier offers the most channels in its class
• Powers up to four BRX308-LA Line Array Elements
• Dual inputs with Input Y mode allow a single input for the subwoofer and tops or dedicated inputs for more advanced uses
• Supports ground stacking of up to four BRX308-LAs, or a single BRX325SP can be flown using the optional BRX308-AF Array Frame
• Casters provide ease of transport
• Power cable options for China, India and APAC regions

Spec

BRX308-LA

System Type: Modular, portable line array
Frequency Range (-10 dB): 80 Hz–20 kHz
Max Peak SPL (2 PI): 136 dB
Nominal Directivity (H x V): 110° x 12° (variable)
Transducers: LF: 2 x 8”
HF: 1 x 3” titanium compression
Compliance: CE
Material: Plywood
Colour/Finish: Matte black, Duraflex
Connectors: Two 4-pole NL4 connectors wired in parallel for IN/THRU use
Weight: 20.5 kg (45.2 lb)
Dimensions (D x W x H): 376 x 662 x 299 mm (14.8 x 26 x 11.8 in)

BRX325SP

System Type: Modular, portable line array subwoofer
Frequency Range (-10 dB): 32 Hz–250 Hz
Amp Input Modes: Dual, Input Y
Input: Two balanced XLR-F wired in parallel to XLR-M for THRU outputs
Output: Two 4-pole NL4 connectors for powering up to four tops
Crossover: Internal DSP incl. FIR processing
System Power: 6 channels @ 1000 watts each
Max Peak SPL (2 PI): 136 dB
Transducers: 2 x 15”
Compliance: CE
Material: Plywood
Colour/Finish: Matte black, Duraflex
Power Input: 20A powerCON/230 VAC only
Weight: 86 kg (190 lb)
Dimensions (D x W x H): 693 x 680 x 890 mm
(27.3 x 26.7 x 35 in)
(excludes caster wheels)
