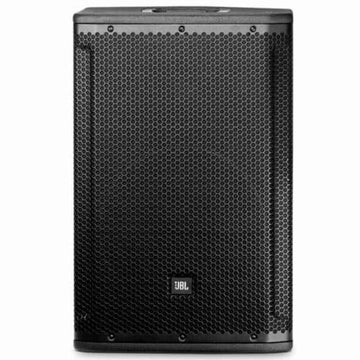

JBL SRX812 Passive Speaker – 12″ 2-Way 3200W
The JBL SRX812 is a two-way full range passive portable speaker with a 12” woofer made for use as a light-duty main PA, monitor, or rear or side fill. The SRX812 is an ideal solution for musicians, bands, and DJs, concert use, public speaking and more.
JBL SRX812 Passive Speaker – 12″ 2-Way 3200W
The JBL SRX812 is a two-way full-range passive portable speaker with a 12” woofer. Specifically, you can use the SRX812 as a light-duty main PA, monitor, or rear or side fill.
12″ Two-Way Bass Reflex Passive System
The SRX812 is an ideal solution for musicians, bands, and DJs. It is also great for concert use, and public speaking. Additionally, it suits installations such as performance venues, corporate spaces, educational facilities or houses of worship. In fact, it features M10 suspension points and feet for both floor standing and monitors use.
A Purposeful Design
Additionally, every detail in the JBL SRX812 3200W Passive Speaker and the SRX800 Series is purposefully designed with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. Also, the SRX812 has M10 suspension points, indexed feet, and pole/tripod mounts that support a wide, flexible array of configurations.
Transducer Technology
JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3″ voice coils with lower mass ferrite magnets. This is specifically for reduced weight, increased power handling, exceptionally low distortion and extended low-frequency response. Also, JBL’s 2432H is the only neodymium 3″ voice coil compression driver in this class. It delivers very high power levels and smooth, crystal clear sound.
In summary, the JBL SRX812 offers:
- Class-leading performance in a variety of applications.
- Ergonomic design for handling.
- Exceptionally low distortion.
- Extended low-frequency response.
- High power levels.
Lastly, JBL SRX800 Series – An Integrated System
When used in conjunction with the other SRX800 full-range systems and the SRX800 subs, SRX812 is an integral part of a high performance, configurable loudspeaker system.
Features
- Premium JBL Transducers
- Tunings available for Crown amps and dbx signal processors
- Fully supported in Audio Architect
- Power Handling: 3200W Peak, 1600W Program, 800W Continuous
- Frequency Range: 41Hz-20kHz
- Frequency Response: 57Hz-20kHz
- Max SPL: 135dB
- Coverage Pattern: 90 x 50
- Amplification options: Passive/Bi-Amp
Spec
Maximum SPL Output: 135dB
Frequency Range: (-10dB) 41hz – 20khz
Frequency Response: (- 3dB) 57hz – 20khz
Sensitivity: (1W/1m) 95 dB
System Power Rating: 3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance: 8 Ohm
Connectors: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes: Passive/Bi-Amp
LF Driver: 2272H
HF Driver: 2432H
Crossover Frequency: 1.9khz
Enclosure Material: 18mm plywood
Dimensions: (L x W x H) 429mm x 415mm x 638mm
Weight: 24.9kg
Shipping Weight: 29.3kg
