JBL SRX818S – 18″ Inch Single Passive Subwoofer 2400W
The JBL SRX818S is a single 18” subwoofer for concert, touring, or installed use. Ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship.
JBL SRX818S – 18″ Inch Single Passive Subwoofer 2400W
The JBL SRX818S 2400W Passive Subwoofer is a single 18” sub. This JBL sub features a standard M20 pole cup for use with top boxes. Also, it has indexing feet for stacking in both the standard and cardioid positions.
18″ Passive Subwoofer System
The SRX818S has a 136dB max SPL, it is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship.
A Purposeful Design

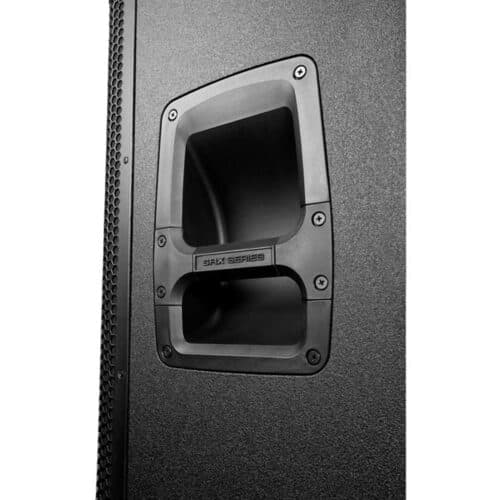

Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. Additionally, the SRX818S has indexed feet which support a wide, flexible array of configurations.
Transducer Technology

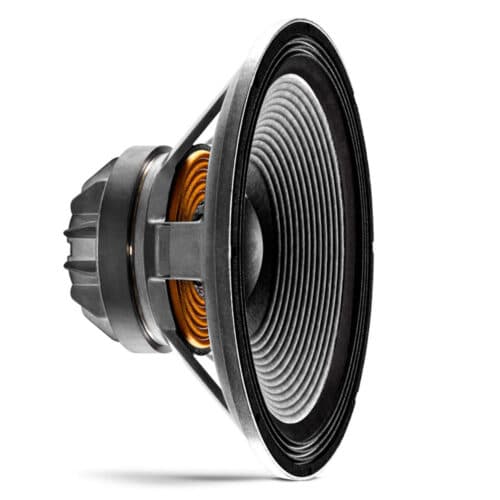

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3″ voice coils with lower mass ferrite magnets. Therefore, the JBL SRX818s has reduced weight, increased power handling, exceptionally low distortion and extended low-frequency response. Furthermore, JBL’s 2432H is the only neodymium 3″ voice coil compression driver in this class. Thus delivering very high power levels and smooth, crystal clear sound.
SRX818’s Applications
- Live Performance systems.
- Mobile and fixed DJ systems.
- Sound system rental and tour.
- Permanent Installations.
Lastly, JBL SRX800 Series – An Integrated System
When used in conjunction with the other SRX800 full-range systems and the SRX800 subs, SRX818S is an integral part of high performance, fully configurable loudspeaker system.
Features
- Premium JBL Transducers
- Rugged, versatile enclosures
- Tunings available for Crown amps and dbx signal processors
- Fully supported in Audio Architect
- Power Handling: 2400W Peak, 1200W Program, 600W Continuous
- Frequency Range: 28Hz-150Hz
- Frequency Response: 45Hz-150Hz
- Max SPL: 129dB (Peak)
- Amplification options: Passive
- 2279 LF 8 Ohm 18” Woofer
Spec
System Type: Passive 18”, subwoofer system
Maximum SPL Output: 135dB
Frequency Range: (-10dB) 28hz – 150hz
Frequency Response: (- 3dB) 45hz – 150hz
Sensitivity: (1W/1m) 96dB
System Power Rating: 2400W Peak , 1200W Program, 600W Continuous
Nominal Impedance: 8 Ohm

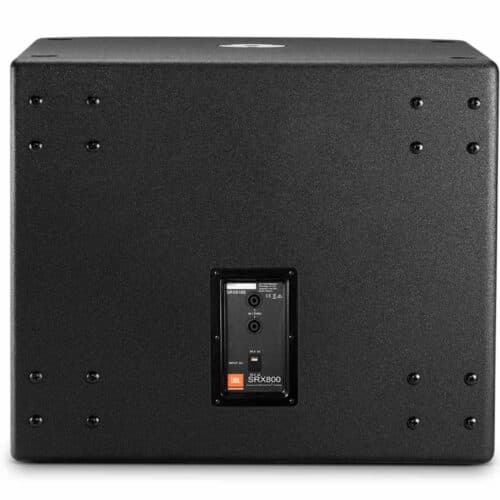

Connectors: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Crossover Frequency: 80hz
Enclosure Material: 18mm plywood
Dimensions: (L x W x H) 683mm x 684mm x 575mm
Weight: 35.4kg
Shipping Weight: 40.2kg
