JBL SRX828S – 18″ Inch Dual Passive Subwoofer 4800W
The JBL SRX828S is a dual 18” subwoofer for concert, touring, or installed use. Ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship.
JBL SRX828S – 18″ Inch Dual Passive Subwoofer 4800W
The JBL SRX828S Passive Subwoofer is a dual 18” sub. This JBL Subwoofer features a wide stance for splaying top boxes and indexing feet for stacking in both the standard and cardioid position.
18″ Dual Passive Subwoofer System
The SRX828s has a 141dB max SPL, it is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship.
A Purposeful Design

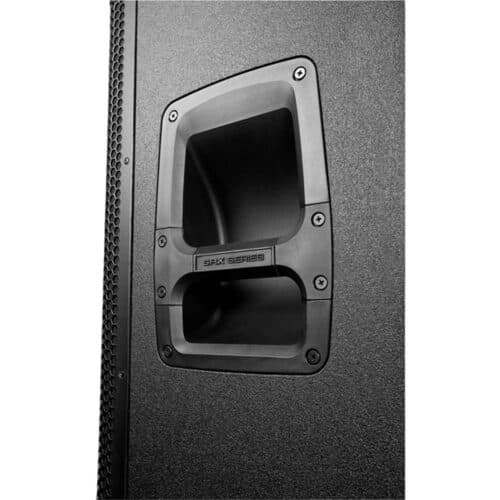

Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. Additionally, the SRX828S has indexed feet which support a wide, flexible array of configurations.
Transducer Technology

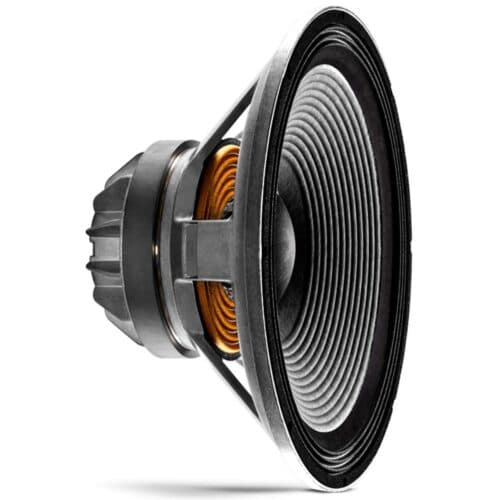

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3″ voice coils with lower mass ferrite magnets. Therefore, the JBL SRX828S has reduced weight, increased power handling, exceptionally low distortion and extended low-frequency response. Furthermore, JBL’s 2432H is the only neodymium 3″ voice coil compression driver in this class. Thus delivering very high power levels and smooth, crystal clear sound.
SRX828’s Applications
- Live Performance systems.
- Mobile and fixed DJ systems.
- Sound system rental and tour.
- Permanent Installations.
Lastly, JBL SRX800 Series – An Integrated System
When used in conjunction with the other SRX800 full range systems and the SRX800 subs, SRX828S in an integral part of a high performance, fully configurable loudspeaker system.
Features
- Premium JBL Transducers
- Rugged, versatile enclosures
- Tunings available for Crown amps and dbx signal processors
- Fully supported in Audio Architect
- Power Handling: 4800W Peak, 2400W Program, 1200W Continuous
- Frequency Range: 30Hz-150Hz
- Frequency Response: 47Hz-150Hz
- Max SPL: 135dB (Peak)
- Amplification options: Passive
- 2x 2279 LF 8 Ohm 18” Woofer
Spec
System Type: Passive dual 18”, subwoofer system
Maximum SPL Output: 141dB
Frequency Range: (-10dB) 30hz – 150hz
Frequency Response: (- 3dB) 47hz – 150hz
Sensitivity: (1W/1m) 96dB
System Power Rating: 4800W Peak, 2400W Program, 1200W Continuous
Nominal Impedance: 4 Ohm

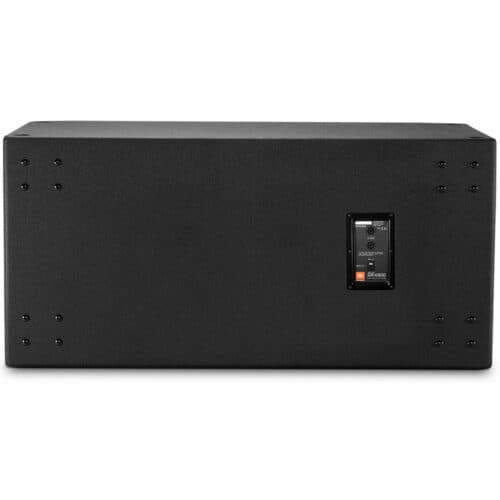

Connectors: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Crossover Frequency: 80hz
Enclosure Material: 18mm plywood
Dimensions: (L x W x H) 681mm x 1205mm x 574mm
Weight: 62.1kg
Shipping Weight: 66.5kg
