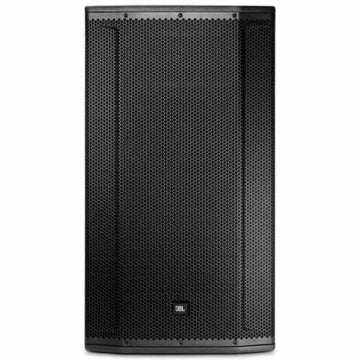

JBL SRX835 – 15″ Inch 3-Way Passive Speaker 3200W
The JBL SRX835 is a three-way full-range speaker with a 15” woofer made for use as a medium duty main PA, or rear or side fill. The SRX835 is an ideal solution for musicians, bands, and DJs, concert use, public speaking and more.
JBL SRX835 – 15″ Inch 3-Way Passive Speaker 3200W
The JBL SRX835 Passive Speaker is a three-way full-range speaker with a 15” woofer made for use as a medium-duty main PA, or rear or side fill.
15″ Three-Way Bass Reflex Passive System
The SRX835 is an ideal solution for musicians, bands, and DJs. It’s great for concert use and public speaking. Also, it is ideal for installations such as performance venues, corporate spaces, educational facilities or houses of worship.
A Purposeful Design
Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. Also, the SRX835 has M10 suspension points, indexed feet, and pole/tripod mounts that support a wide, flexible array of configurations.
Transducer Technology
JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3″ voice coils with lower mass ferrite magnets. Therefore, the JBL SRX835 has reduced weight, increased power handling, exceptionally low distortion and extended low-frequency response. Additionally, JBL’s 2432H is the only neodymium 3″ voice coil compression driver in this class. Thus delivering very high power levels and smooth, crystal clear sound.
In summary, the JBL SRX835 offers:
- Class-leading performance in a variety of applications.
- Ergonomic design for handling
- Exceptionally low distortion
- Extended low-frequency response
- High power levels
Lastly JBL SRX800 Series – An Integrated System
When used in conjunction with the other SRX800 full range systems and the SRX800 subs, SRX835 in an integral part of a high performance, fully configurable loudspeaker system.
Features
- Premium JBL Transducers
- Rugged, versatile enclosures
- Tunings available for Crown amps and dbx signal processors
- Fully supported in Audio Architect
- Power Handling: 3200W Peak, 1600W Program, 800W Continuous
- Frequency Range: 32Hz-20kHz
- Frequency Response: 43Hz-20kHz
- Max SPL: 130dB (Peak)
- Coverage Pattern: 60×40
- Amplification options: Passive/Bi-Amp
Spec
LF Driver Size: 1 x 15″ JBL
Impedance: 8 ohms
Power Rating: 800W Continuous, 1600W Program
Total Power: 3200W Peak
Connectors: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Frequency Range: 32Hz-20kHz (-10 dB)
Frequency Response: 43Hz-20kHz (±3 dB)
Crossover Frequency: 2400Hz
Maximum Peak SPL: 130 dB SPL @ 1m
Enclosure Material: 18mm Plywood
Mounting Options: Pole, M10 Suspension points
Height: 98.3cm
Width: 54.3cm
Depth: 47.5cm
Weight: 43.09 kg
