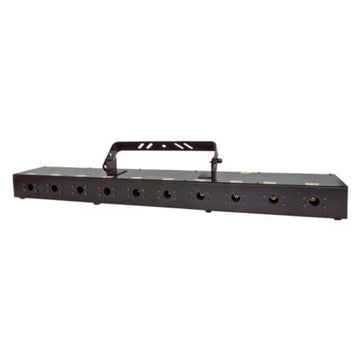

Laserworld BeamBar 10R Laser Beam Effect System
Laserworld BeamBar 10R
The Laserworld BeamBar 10R is a fixed laser bar with 10 single beam outlets. Perfect for creating architectural and special effects, each outlet is equipped with a 120mW red (638nm) laser diode for a bright and visible beam. Each laser beam can be individually aligned through a 4-point alignment system, that can easily be accessed from the front. Making maintenance quick and easy. This unique laser fixture is perfect for aerial beam/fan effects at concerts or as part of the scenery on the stage. Control via DMX with individual control of each outlet for creating your own chase and visual effects, or trigger one of the built-in sequences. This laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX to a main projector (master projector) project the same patterns as the master projector. Each Beambar laser is tested by the Australian distributor to ensure the quality and performance meets Laserworld's strict standards.
Features
- Fixed 10 beam laser effect system
- 1,200mW combined output – 120mW per output
- Pure diodes create bright and visible red beams
- Easy to operate with DMX control, no tricky ILDA connections
- 4- axis points let you position the beams for different fan and beam effects
- Fitted with safety key and laser interlock device
Spec
Guaranteed power: 1,200 mW (120mW per aperture)
Red Colour: 10 x 120 mW / 638 nm
Beam Specifications: <3.0 mm / <1.5 mrad
Laser Sources: Diode
Laser Class: 3B
Operation Modes: DMX, Stand-alone, Sound-to-Light, master-slave
Accessories: Interlock connector, manual, key
Power Supply: 100V – 250 V AC 50/60 Hz
Power Consumption: 50 W
Dimensions: 1000 x 160 x 80 mm
Weight: 9.0 kg
