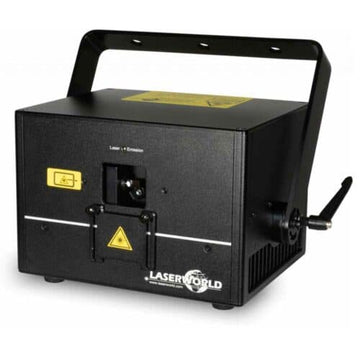

Laserworld DS-2000RGB MK3 – RGB ShowNET Laser System

The Laserworld DS-2000RGB MK3 is a high power full colour semi-professional laser with a built-in multi-control mainboard. It offers amazing DMX control with internal safety settings making it simple to control multiple units along with the rest of your DMX lighting.

Laserworld DS-2000 RGB ShowNET

The Laserworld DS-2000RGB MK3 is a high power full colour semi-professional laser with a built-in multi-control mainboard. It offers amazing DMX control with internal safety settings making it simple to control multiple units; along with the rest of your DMX lighting. As a result, it provides a full feature laser show software license included. Sealed optics section for low maintenance Perfect for small/medium-sized nightclub installs indoor events and mobile DJs.

The Laserworld DS-2000RGB MK3 units come with diode-only laser sources (“Pure Diode”). Thus have great beam specifications with beautiful analog colour modulation.

The Laserworld DS-2000RGB MK3 units have a built-in network DAC for Showcontroller and Showeditor; but also can be controlled with any ILDA laser control software such as; Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface. They also have a built-in memory with pre-set patterns (which can also be changed/updated by the user), that can be easily triggered through DMX and stand alone.

Integrated ShowNET network

The Laserworld DS-2000RGB MK3 also comes with an integrated ShowNET network interface and free laser show software. Details in the box below. Beginners, as well as professionals, use the Laserworld Diode Series units, as they are easy to use, versatile in their features and very compact and lightweight. The Laserworld DS-2000RGB MK3 comes with 500 mW / 638 nm red and uses green diodes at 500 mW / 520 nm. The blue diode has 1’400 mW / 450 nm. Beam specifications are at great ca. 4 mm / 0.9 mrad full angle and scanning can go as fast as 40 kpps@8° ILDA, whereas the scanners can scan at a maximum angle of 50°. With integrated and switchable scan safety. The whole projector is built with Sealed Housing technology and thus maintenance intervals can be kept very low.

Features

• 2’000 mW guaranteed power

• Graphics capable – 40 kpps@8° ILDA

• Max scan angle 50°

• Full colour mixing – analog modulation

• Extremely sharp intense beams – ca. 4 mm beam diameter and low divergence of 0.9 mrad

• Save safety settings direct to the laser and they apply in all modes

• Link multiple units by linking Power, DMX and ILDA

• Free computer control software – Showeditor – upgradable to Showcontroller

• Multiple control modes – Auto, DMX, Artnet and ILDA

• ShowNET mainboard as standard:

  Various control options: ILDA, Professional DMX and ArtNET (two modes), LAN (computer control, integrated DAC), Stand-Alone Operation, ILDA Streaming Receiver, Master-Slave

  Create custom content, store it inside the laser and play it back in different modes

  Free laser show control software included

Spec

Guaranteed Power at aperture: 2’000 mW

Power Red: 500 mW / 638 nm

Power Green: 500 mW / 520 nm

Power Blue: 1’400 mW / 450 nm

Beam Specifications (full angle): ca. 4 mm / 0.9 mrad

Scanner: 40 kpps@8° ILDA

Max. Scan Angle: 50°

Laser Source: Diode

Laser Class: 4

Operation Modes: ILDA, DMX, LAN, ArtNet, ILDA streaming, integrated SD card, stand-alone, master-slave

Basic Patterns: over 120 (layers, tunnels, fences, waves, etc.)

Accessories: power cable, manual, interlock, key, full version Showeditor software license included

Power Supply: 85 V – 250 V / AC, 50/60 Hz internal PSU

Power Consumption: 45 W

Dimensions: 210 x 170 x 145 mm

Weight: 4 kg

EAN / MPN: 7640144997519
