Laserworld EL-230RGB MKII RGB Effect Laser System
EL-230RGB MKII is a multi-color and stunning white light laser with plug & play operation and DMX control projecting in-air beams, waves and tunnel effects. Perfect for creating a fun atmosphere with a range of colours at home parties, small bars, and mobile DJ events.
Laserworld EL-230RGB MKII RGB Effect Laser System
Laserworld EL-230RGB MKII is a multi-color and stunning white light laser with plug & play operation and DMX control projecting in-air beams, waves and tunnel effects. Perfect for creating a fun atmosphere with a range of colors at home parties, small bars, and mobile DJ events.
The red diode laser module with a wavelength of 650 nm, the green DPSS laser module with a wavelength of 532nm and the royal-blue laser module with a wavelength of 445 nm ensure beautiful colors and brightness.
The beams have a diameter of about ca. 4 mm and a beam divergence of about 1 mrad and the projector offers high-speed step motors, up to 2-5 kpps as well as a scan angle of up to 30°.
About ca. 50 (layers, tunnels, fences, waves, etc.) can be controlled via DMX. A sound-to-light mode as well as a stand-alone mode are available too. For the sound-to-light mode the sensitivity of the integrated adjustable microphone can be adjusted.

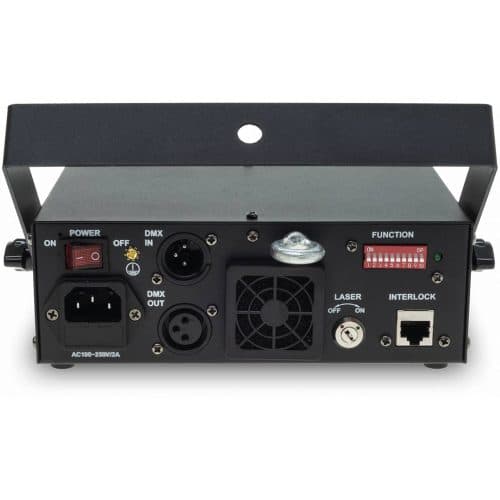

There is an interlock connector for safety switch as well as a key switch at the rear side. The Laserworld EL-230RGB MKII is a good solution for first-time users and mobile use. Also, it is often used in bars, small clubs, at private parties or for home use.
Highlights:
- Typical power 230 mW
- 7 colors including white
- Ca. 50 (layers, tunnels, fences, waves, etc.
Features
- Typical power 230 mW
- 7 colors including white
- Ca. 50 (layers, tunnels, fences, waves, etc.)
- Stand-alone mode
- Sound-to-light mode
- DMX programmable
Spec
Total Power: 230 mW
Guaranteed Power: 170 mW
Power Red: 100 mW / 650 nm
Power Green: 20 mW / 532 nm
Power Blue: 50 mW / 445 nm
Beam Specifications: ca. 4 mm / 1 mrad
Scanner: high-speed step motors, up to 2-5 kpps
Max. Scan Angle: 30°
Laser Source: Diode, DPSS Laser
Laser Class: 3B
Operation Modes: Stand-Alone, Sound-to-Light, DMX
Basic Patterns: ca. 50 (layers, tunnels, fences, waves, etc.)
Accessories: power cable, manual, interlock, key
Power Supply: 85V – 250 V AC
Power Consumption: 15 W
Dimensions: 205 x 145 x 70 mm
Weight: 2.6 kg
