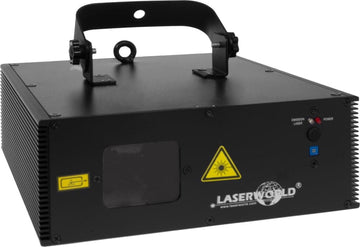

Laserworld EL-400RGB Full Colour Effect Laser
Laserworld EL-400RGB
The Laserworld EL-400RGB is a compact RGB laser system with a total output power of up to 400 mW. Designed for mobile entertainers, private parties and smaller venues. The laser comes with a safety key and is fitted with an interlock for added safety. Supplied with 50 built-in patterns including; layers, tunnels, fences, waves etc. that can be operated via the stand-alone and sound-to-light modes. For the sound-to-light mode the sensitivity of the integrated adjustable microphone can be adjusted. For more dynamic effects the laser can be controlled via DMX Powering the laser projector are 3 primary modules; Red, Green, and Blue. The red diode laser module with a wavelength of 650 nm, the green DPSS laser module with a wavelength of 532 nm, the royal-blue laser module with a wavelength of 445 nm ensure beautiful colors and brightness. The beams have a diameter of about 4 mm and a beam divergence of about 1 mrad and the projector offers high-speed stepper motors with 3-8 kpps as well as a scan angle of up to 30°. For great coverage and effect. For the best effect we recommend combining your laser projector with a smoke, or haze machine. This will allow you to see the beams of the laser in mid-air and will give your next party or event the WOW factor it deserves.
Features
- Professional laser projection system
- Punchy 400mW output with TTL colour modulation
- Great for semi-professional applications
- Fast 3,000 to 8,000 p/ps scanner speeds, with a max scan angle of 30°
- All new compact and lightweight casing
- Built in patterns and laser shows
- Control with DMX / Stand Alone (auto/sound/master-slave)
- Integrated safety features including; safety key, interlock interface, and projector shield
Spec
Total Power typical: 400 mW
Guaranteed power: 320 mW
Power Red: 110 mW / 650 nm
Power Green: 50 mW / 532 nm
Power Blue: 160 mW / 445 nm
Beam Specifications: ca. 3 mm / 2 mrad
Laser Sources: Diode, DPSS Laser
Laser Class: 3B
Operation Modes: auto, music, DMX
Scanner: Step motor (3-8 kpps)
Basic Patterns: ca. 50 (layers, tunnels, fences, waves, etc.)
Accessories: power cable, manual, interlock, keys
Power Supply: 85 V – 250 V AC
Power Consumption: 30 W
Dimensions: 255 x 245 x 100 mm
Weight: 3.9 kg
