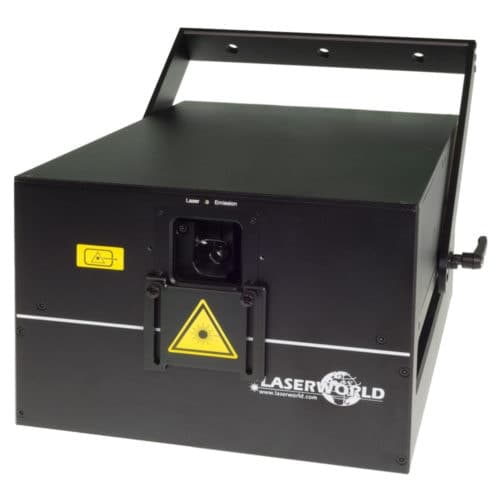

Laserworld PL-10000RGB PureLight Laser System with FB4



Laserworld PL-10000RGB

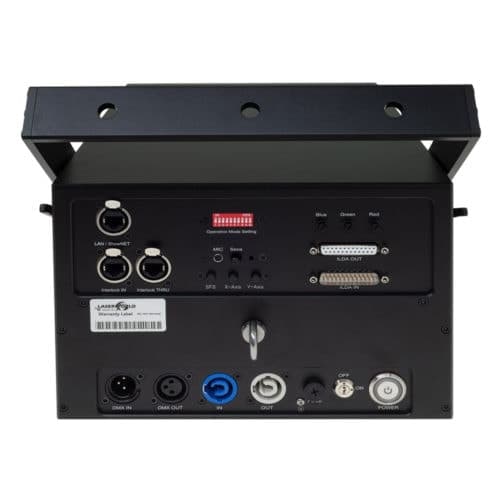

The Laserworld PL-10000RGB Purelight show laser light is completely equipped with diodes and has a good white balance, with linear colour fading behaviour and high visibility. Fitted with an integrated FB4 network interface and supplied with Quickshow software for use straight out of the box. The Purelight series lasers use high-quality diodes to ensure the beam quality and colour is always up to show standard. The PL-10000RGB has a beam diameter of about 5.5 mm and divergence of only 1.3mrad.  And is guaranteed to produce 10,000mW output power at the aperture - 3,000 mW / 638 nm (red), 3,000 mW / 520 nm (green), 4,500 mW / 450 nm (blue). Ultrafast scanners trace the beam creating stunning visual and aerial effects. Scanning up to 35kpps at 8°ILDA, with a maximum scan angle of 50°. The complete projector is built with Sealed Housing Technology and is cooled through the external cooling fins (bottom part). Thus the maintenance effort is kept very low. The show laser has an internal PSU for easy handling.  At the back of the unit, there are trim pots for colour settings so the colour balance can be quickly adjusted. The X- / Y-axis offset can also be set by trim pots. Additionally, Scan Safety can be set at the back side of the laser system.

---

Important Safety Notice: The Laserworld PL-10000RGB is an extremely high powered, Class 4A, laser display system, DJ City recommends avoiding scanning this laser into any crowd or area where the laser could be harmful (including reflective surfaces). Purposely aiming or reflecting any of the beams into a crow with the correct settings and safety measures may result in injury and permanent damage. Please read the product manual before operating this laser system

---



Features

• Premium laser projection system capable of ‘Pure’ white colour
• Powerful 10,000mW output with analogue colour modulation
• Ultrafast scanner speeds of 35 kpps @ 8°, with a max scan angle of 50°
• Ideal for larger events and aerial display
• Integrated ShowNET interface with laser software for use of out the box
• Control with DMX / ILDA / Stand Alone (auto/sound/master-slave)
• Integrated scan fail safety (SFS), safety key, and projector shield

Spec

Guaranteed power at aperture: 10,000 mW

Power Red: 3,000 mW / 638 nm

Power Green: 3,000 mW / 520 nm

Power Blue: 4,500 mW / 450 nm

Beam Specifications: ca. 5.5 mm / 1.3 mrad

Laser Sources: Diode

Laser Class: 4

Operation Modes: ILDA, DMX, LAN, ArtNet, integrated SD card, stand-alone, sound-to-light

Scanner: 35 kpps@8°ILDA

Scan Angle max.: 50° max.

Accessories: key, power cable, manual

Power Supply: internal PSU

Power Consumption: 350 W

Dimensions: 335 x 265 x 180 mm (L x W x H)

Weight: 14,6 kg
