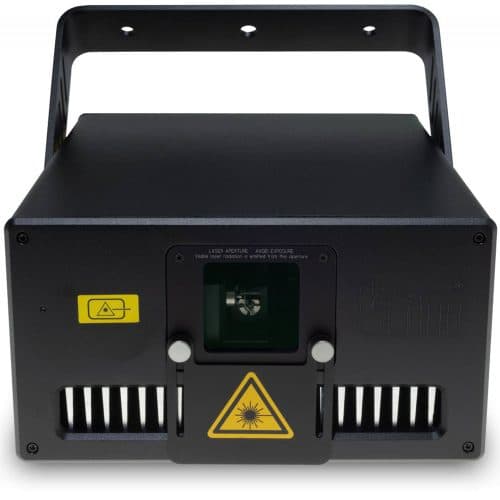

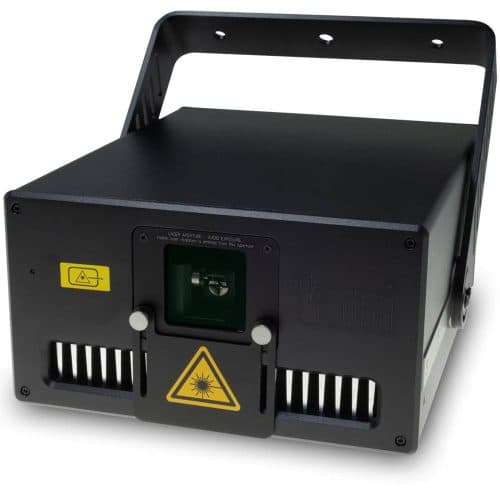

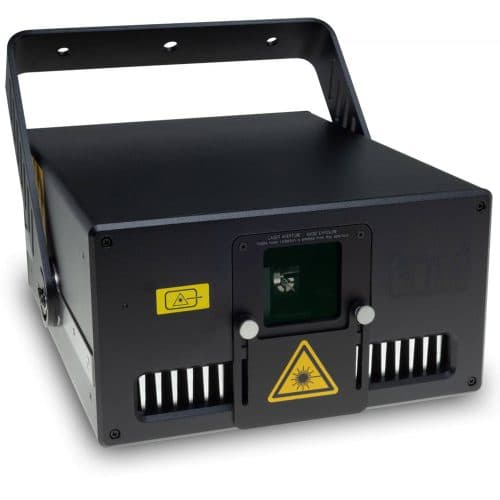

Laserworld Tarm 3 Pure Diode RGB Laser System

The Tarm 3 is a powerful, top professional laser system with super crisp beams and well suitable for demanding applications like mappings or projections. It is a high-quality, versatile, whitelight RGB laser for professional use.

Laserworld Tarm 3 Pure Diode RGB Laser System

The Laserworld Tarm 3 show laser projector is a full-colour white light RGB laser system with full analog colour modulation and diode-only equipment. In fact, the guaranteed output power is specified at 3’000 mW after optics.

DAC/ILDA

The Tarm 3 units have a built-in network DAC for Showcontroller and Showeditor, but also it can be controlled with any ILDA laser control software such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface (e.g. FB3). They also have a built-in memory with pre-set patterns, that can be easily triggered through DMX and automatic mode.

The Tarm 3 comes with an integrated ShowNET network interface and free laser show software.

Beam Specs

The Tarm 3 laser has great beam specifications with a diameter of ca. ca. 4.5 mm and a beam divergence of less than <0.6 mrad. It has a bright red (1’000 mW / 637 nm), a green (900 mW / 520 nm), and a blue (1’700 mW / 450 nm) diode laser source.

The scanners are very fast with 45kpps @ 8° ILDA standard and allow for a maximum scan angle of 50°. Thus they are well graphics capable and suitable for professional laser applications. This show laser light has a switchable scan safety.

Excellent Housing

The housing of the Tarm 3 is strong and dust-proof, there is no air circulation inside the enclosure. Specifically, this reduces maintenance efforts to a minimum. Also, the mounting bracket allows for hanging and for upright mounting of the laser system. The tarm 3 is especially suitable for show laser applications in clubs and bars and is useable for beginners as well as professionals.

Tarm 3 Highlights:

• 3’000 mW guaranteed power
• Graphics capable – 45kpps @ 8° ILDA Scanners
• Full-colour mixing – analog modulation

Features

• 3’000 mW guaranteed power
• Graphics capable – 45kpps @ 8° ILDA Scanners
• Full-colour mixing – analog modulation
• Extremely sharp intense beams – low divergence of <0.6 mrad
• IP54 waterproof housing

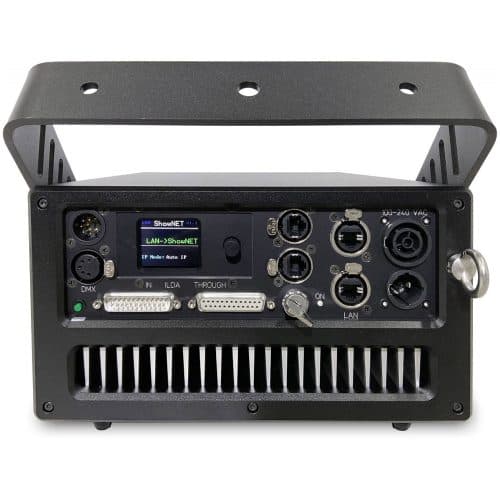

• Link multiple units with linking power, interlock, DMX, ILDA
• Control screen for convenient mode selection
• Free computer control software – Showeditor – upgradable to Showcontroller
• Integrated powerful mainboard with advanced configuration features (geo-correction, zone setup, color balancing, etc.) and DAC feature
• Multiple control modes – stand-alone, DMX, ArtNET, LAN and ILDA
• Rugged tour grade compact housing
• incl. waterproof flightcase

Spec

Guaranteed Power at aperture: 3,000 mW

Power Red: 1,000 mW / 637 nm

Power Green: 900 mW / 520 nm

Power Blue: 1,700 mW / 450 nm

Beam Specifications: Approximately 4.5 mm / less than 0.6 mrad

Scanner: 45kpps @ 8° ILDA; optional: CT-6210 with LAS Turboscan: 60kpps @ 8° ILDA, max. 60°

Max. Scan Angle: 50°

Laser Source: Diode

Laser Class: 4

Operation Modes: ILDA, DMX, LAN, ArtNet, integrated SD card, stand-alone, master-slave

Basic Patterns: Over 120 (layers, tunnels, fences, waves, etc.)

Accessories: Incl. waterproof flight case, power cable, manual, key, interlock connector, full version Showeditor software license included

IP rating: IP54

Power Supply: 85 V – 250 V / AC, 50/60 Hz

Power Consumption: 170 W

Dimensions: 320 / 260 / 140 mm

Weight: 12.5 kg
