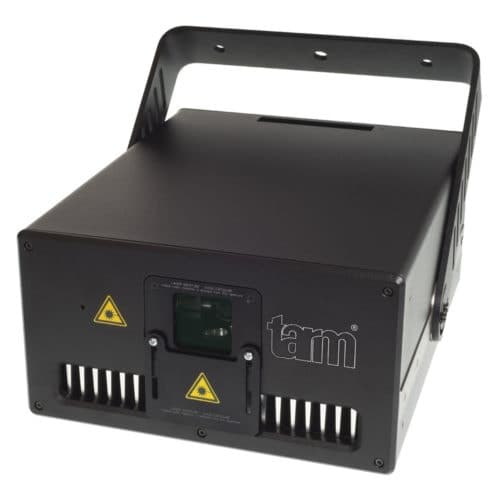

Laserworld Tarm 5 Pure Diode RGB Laser

Laserworld Tarm 5

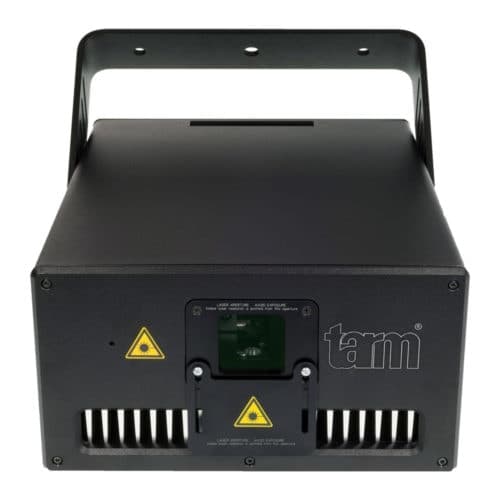

The Laserworld Tarm 5 show laser projector is a full color whitelight RGB laser systems with full analog color modulation and diode-only equipment. The guaranteed output power is specified at 5,000 mW after optics. Boasting  great beam specifications with a diameter of ca. 3.5 mm and a beam divergence of approx. <1.0 mrad (full angle). It is equipped with a bright red (1,400 mW / 638 nm), a green (1,500 mW / 520 nm), and a blue (3,000 mW / 450 nm) diode laser source. The scanners are very fast with 45 kpps@8° ILDA standard and allow for a maximum scan angle of 50° (@30 kpps). Thus they are well graphics capable and suitable for professional laser applications. Optionally as an upgrade available: CT-6210H scanners incl. RTI RayScan driver with 60 kpps@8° ILDA and a max. scan angle of 68° (@35 kpps). The housing of the tarm 5 is built very rugged and in a dust-proof way, so there is no air circulation inside the enclosure. This reduces maintenance efforts to a minimum. The mounting bracket allows for hanging and for upright mounting of the laser system. The tarm 5 is especially suitable for show laser applications in clubs and bars and can be used by beginners as well as professionals.

Features

• 5’000 mW guaranteed output power
• Ultra smooth graphics from the 45 kpps scanners
• Pure diode RGB laser with analog colour mixing
• Capable of pure white colour
• Impressive beam spec with 1.0 mrad divergence
• Low power consumption

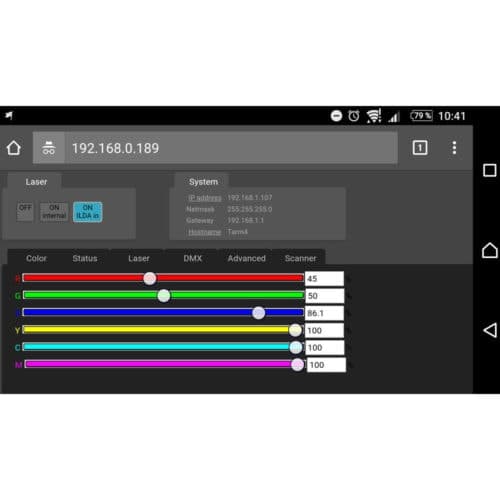

• Adjust colour intensity via controls on the back
• Trigger saved ILDA shows via ArtNET or DMX
• Fitted with RJ45 safety switch port, on/off key, and scan safe guard
• MANUFACTURED IN GERMANY, with high precision diodes array modules

Spec

Guaranteed power at aperture: 5’000 mW

Power Red: 1’400 mW / 638 nm

Power Green: 1’500 mW / 520 nm

Power Blue: 3’000 mW / 450 nm

Beam Specifications (full angle): ca. 3.5 mm / <1.0 mrad

Laser Sources: Diode

Laser Class: 4

Operation Modes: ILDA

Scanner: 45 kpps@8° ILDA; optional as upgrade: CT-6210H incl. Rti RayScan driver: 60 kpps@8° ILDA, max. 68° (@35 kpps).

Scan Angle max.: max. 50° (@30 kpps)

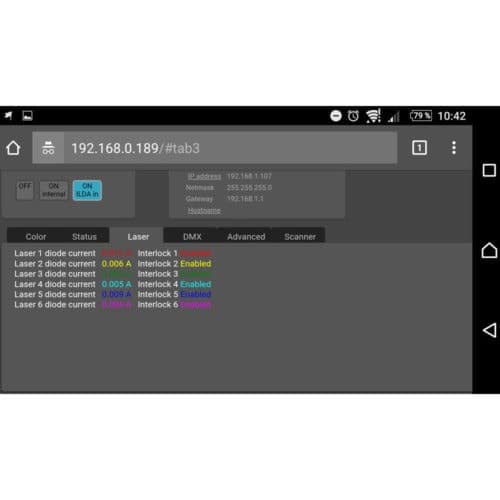

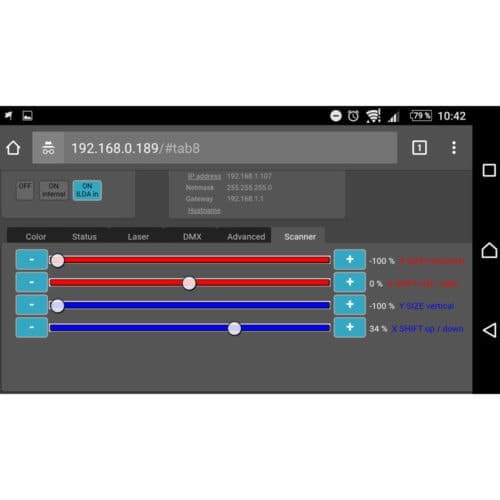

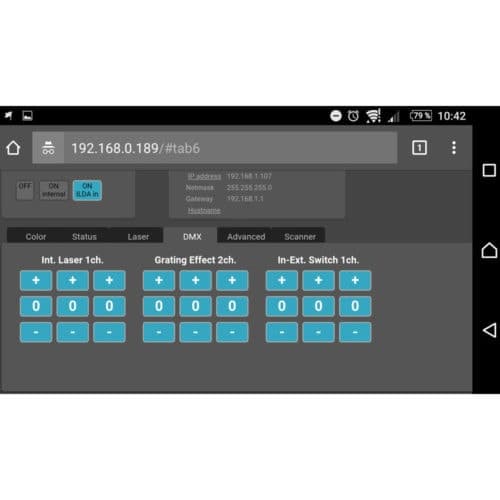

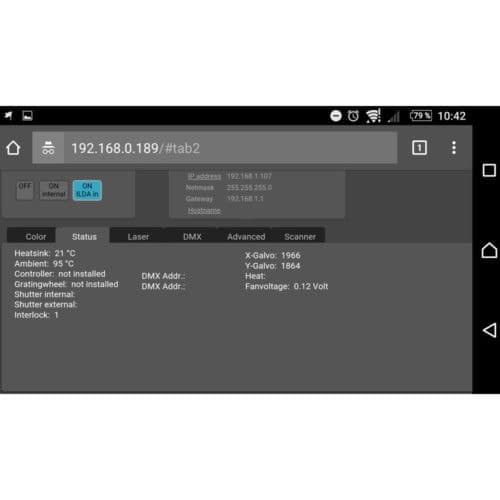

Accessories: browser interface for calibration, key, power cable, manual, interlock connector

Power Supply: 85 V – 250 V / AC

Power Consumption: 320 W

Dimensions: 320 x 260 x 140 mm

Weight: 11.5 kg
