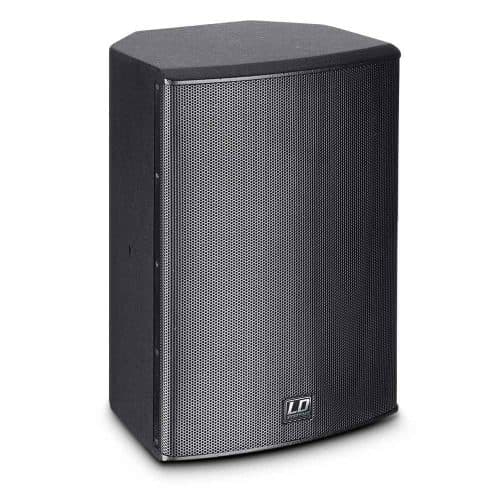

LD System SAT82AG2 8-Inch Active Speaker – Black
The LD Systems SAT82G2 gives you a compact and high-quality, 2-way speaker for all your installations. Thanks to its stylish and compact design, the SAT82AG2 will blend into any area, making it just as suitable for your home theatre and listening systems.
LD System SAT82AG2 8-Inch Active Speaker – Black
The LD Systems SAT82AG2 is an active installation monitor, which provides a convincing performance on a PC or laptop and as a home studio monitor. The compact 2-way bass reflex design is equipped with an 8″ custom-made woofer and a 1″ compression driver which are driven by an 80 Watt Class AB power amplifier.
The input is a combo socket; an XLR socket is used to loop through the signal. With a frequency response of 50 Hz – 20 kHz and 114 dB maximum sound pressure, the SAT82AG² produces a balanced sound with high dynamics. The monitor features protection circuits for the tweeter against overcurrent, and a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.
The cabinet of the SAT82G² is made of 12mm MDF with M6 flight points and is available in black or white with a durable textured paint finish. A versatile mounting bracket is included; a universal joint mount is available as an accessory.
Features
- Compact active 2-way installation monitor
- 8″ custom-made woofers
- 1″ high-frequency driver with a 60° x 60° dispersion angle
- Integrated Class AB power amplifier with 80 watts (RMS)
- Switchable automatic power save mode
- Mounting bracket and M6 fixing points for a wide variety of installation possibilities
Spec
Product type: Installation Loudspeakers
Type Wall-mounted: Loudspeaker
Low/mid driver dimensions: 8 “
Woofer size: 203 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
HF driver dimensions: 1 “
HF Driver Size: 25 mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
Dispersion (H x V): 60 x 60 °
Load rating (RMS): 120 W
Frequency response: 50 – 20000 Hz
SPL (1W/1m): 93 dB
Max. SPL: 114 dB
Impedance: 8 Ohm(s)
Protection circuits: HF Driver, over voltage
Line input connectors: 6.3 mm jack, XLR
Line output connectors: XLR
Controls: mains switch (on/off), volume
Indicators: overload, Power
Speaker input connections: Clamp connector
Speakers per amplifier channel: (DSP44/45K) 4
Cabinet material: 12 mm MDF
Cabinet surface: texture paint
Cabinet colour: Black
Cabinet construction: Bass Reflex
Width: 274 mm
Height: 410 mm
Depth: 243 mm
Weight: 8.5 kg
