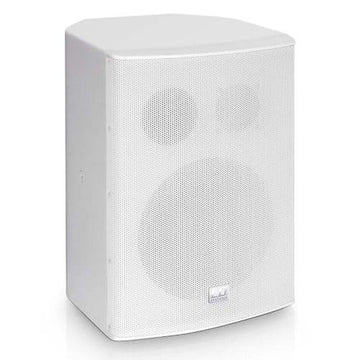

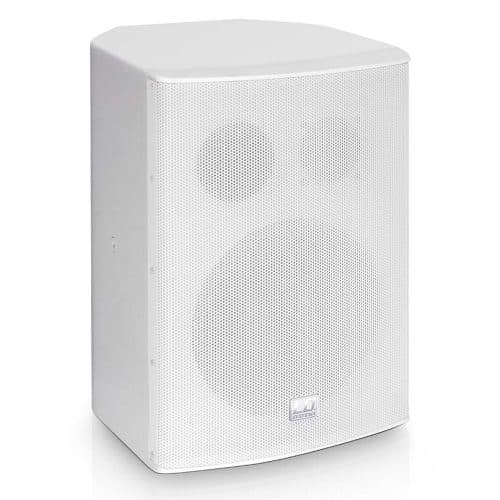

LD System SAT82AG2W 8-Inch Active Speaker – White

LD Systems SAT82AG is an active installation monitor, which provides a convincing performance on a PC or laptop and as a home studio monitor.

LD System SAT82AG2W 8-Inch Active Speaker – White

The LD Systems SAT82AG2W is an active installation monitor, which provides a convincing performance on a PC or laptop and as a home studio monitor.

The compact 2-way bass reflex design is equipped with an 8″ custom-made woofer and a 1″ compression driver which are driven by an 80 Watt Class AB power amplifier. The input is a combo socket; an XLR socket is used to loop through the signal. With a frequency response of 50 Hz – 20 kHz and 114 dB maximum sound pressure, the SAT82AG² produces a balanced sound with high dynamics. The monitor features protection circuits for the tweeter against overcurrent, and a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.

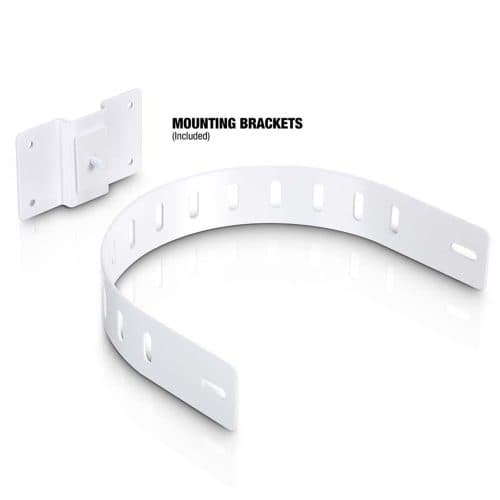

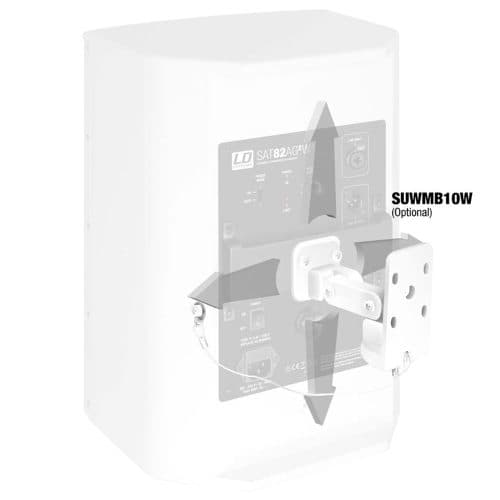

The cabinet of the SAT82G² is made of 12mm MDF with M6 flight points and is available in black or white with a durable textured paint finish. A versatile mounting bracket is included; a universal joint mount is available as an accessory.

Key Features:

• Compact active 2-way installation monitor
• Ideal for bars, restaurants, and shops
• 8″ custom-made woofers

Features

• Compact active 2-way installation monitor
• Ideal for bars, restaurants, shops, as a home recording monitor and PC speaker
• 8″ custom-made woofers
• 1″ high-frequency driver with a 60° x 60° dispersion angle
• Integrated Class AB power amplifier with 80 watts (RMS)
• Switchable automatic power save mode
• Mounting bracket and M6 fixing points for a wide variety of installation possibilities

Spec

Product type: Installation Loudspeakers
Type: Wall-mounted Loudspeaker
Low/mid driver dimensions: 8 ”
Woofer size: 203.2 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
HF driver dimensions: 1 ”
HF driver size: 25 mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
Power amplifier (Class A): Class A/B
Dispersion (H x V): 60° x 60 °
System Power (RMS): 80 W
Frequency response: 50 – 20000 Hz
Max. SPL: 114 dB
Protection circuits: HF Driver, over voltage

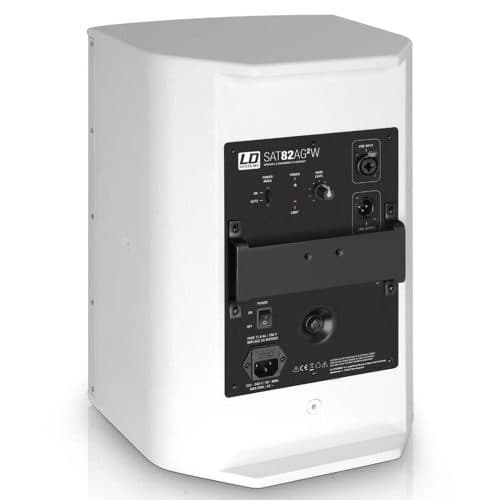

Controls: mains switch (on/off), volume
Indicators: overload, Power
Line input connectors: 6.3 mm jack, XLR
Line output connectors: XLR
Operating voltage: transformer
Operating voltage: 220 V AC – 240 V AC, 50-60 Hz
Cabinet material: 12 mm MDF
Cabinet surface: texture paint
Cabinet colour: Black
Cabinet construction: Bass Reflex
Width: 274 mm
Height: 410 mm
Depth: 243 mm
Weight: 8.5 kg
Accessories (included): Wall bracket
