LD Systems CIWS52 100V 2-Way In Wall Speaker

LD Systems CIWS52 100V

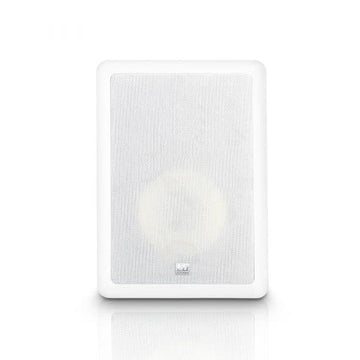

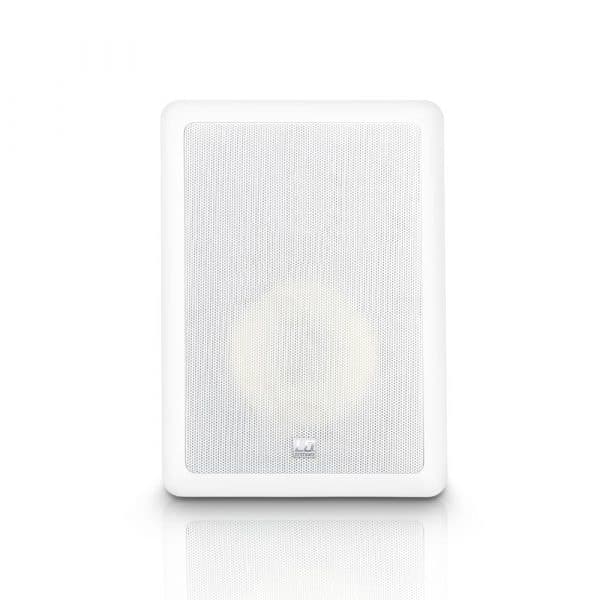

The LD Systems CIWS52 100V is an elegant wall speaker for installation in walls. It is equipped with a 5.25" woofer and 1.42" tweeter that feature a frequency response up to 20 kHz and provide high speech intelligibility and a straight sound. The CIWS 52 100V achieves a sound pressure level of 88 dB at 1 W / 1 m with a power capacity of 40 watts of continuous power. Stable swivels allow for easy, secure installation. The in-wall speaker is designed for a wide scope of applications, providing a discreet sound in hotels, restaurants, bars, lounges, training and conference rooms, shopping centres and at home. For ELA systems, the CIWS 52 is available as a 8 Ohm version (CIWS 52)

Features

• Elegant wall speaker

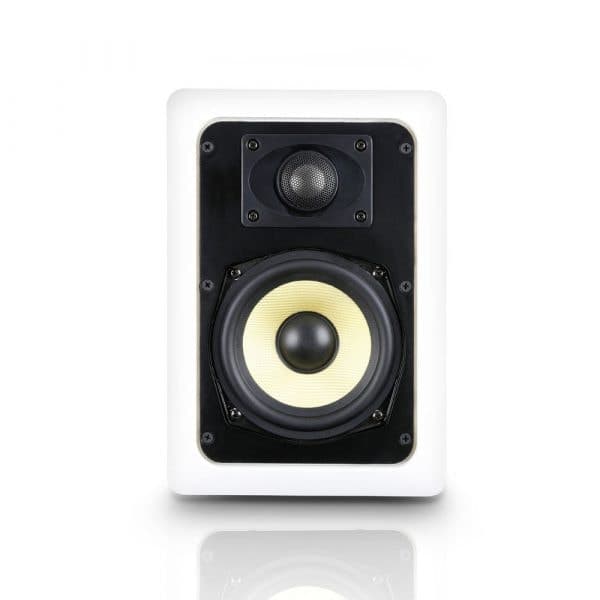

• 5.25″ woofer
• 1.42″ high-frequency driver
• Low installation depth
• 40 watts continuous power
• Frequency range up to 20 kHz
• High speech intelligibility

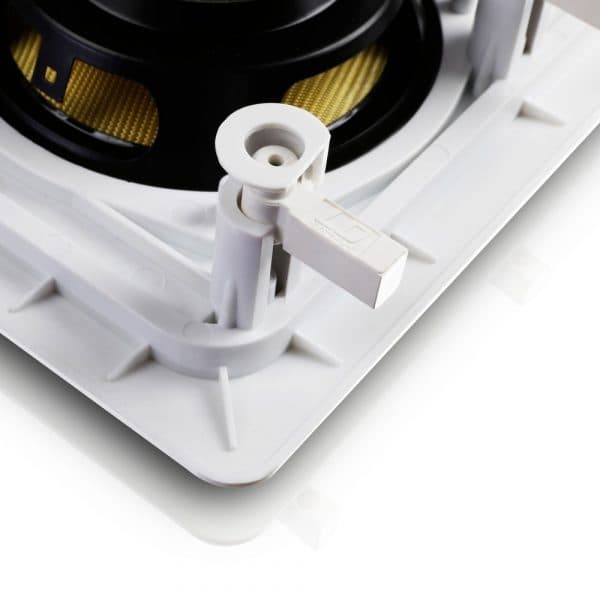

• Easy and safe assembly
• For hotels, restaurants, bars, lounges, shopping centres, conference rooms etc.
• Also available as a 8 Ohm version

Spec

Type: Built-in Loudspeaker, Wall and ceiling installation speaker

Speaker type: 2-way speaker

Colour: white

Woofer dimensions: 5.25″ (133mm)

Tweeter dimensions: 1.42″ (36mm)

Opening size: 158 x 246 mm

Mounting depth: 64mm

Min. Material Thickness: 9mm

Max. Material Thickness: 37mm

Impedance (low-impedance): 8Ohm(s)

Frequency response: 80 – 20000Hz

Sensitivity (1 W / 1 m): 88dB

Low-impedance rated load (RMS): 40W

100V Input: 12 W , 24 W , 6 W

Dimensions: 192 x 279 x 75 mm

Weight: 1.21kg
