LD Systems CURV 500 D SAT Array Satellites

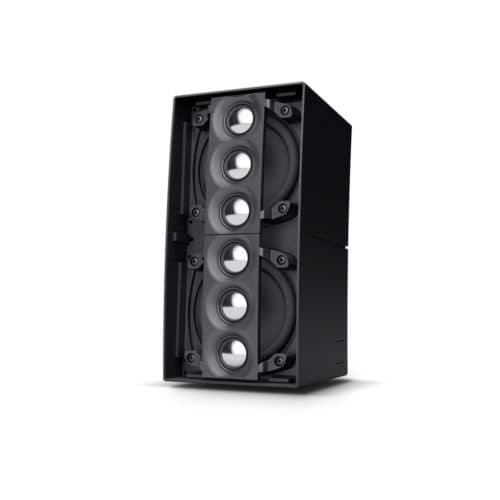

The CURV 500 D SAT Array Satellites give you a tightly focused sound with long-throw coverage. Further expanding your configuration options, the D SAT is perfect for both on-stage applications as well as fixed installations. Housed in a diecast aluminium enclosure, the CURV 500 D SAT features two 4″ midrange drivers and six 1″ high-frequency drivers. While the patented WaveAhead technology delivers balanced high-definition audio.
On top of that, the Duplex is ideal for creating spiral arrays combined with a number of standard satellites. Therefore, allowing you to configure your array system for the best coverage from the front to rear. The CURV 500 D SAT also supports cableless SmartLink plug-and-play connection. It’s also available in both Black & White so it’s sure to suit any setup.
Features
- Two standard CURV 500® satellites in single enclosure
- 2 x 4” midrange drivers
- 6 x 1” high frequency drivers
- WaveAhead® technology for high-definition audio
- Cableless SmartLink® connection
- Impedance 8 ohms
- Perfect for creating spiral-arrays with standard CURV satellites
- Compatible with all CURV500® systems
Spec
Product type: Installation Loudspeakers
Type: Array Satellites , Wall-mounted Loudspeaker
Midrange size: 2 x 4 ”
Tweeter Dimensions: 6 x 1 ”
Load rating (RMS): 80 W
Peak power: 160 W
Dispersion: 110° horizontal, vertical (each satellite) 7 °
Impedance: 8 Ohm(s)
Material: die-cast aluminium
Surface: Powder coated
Colour: Black
Width: 122 mm
Height: 240 mm
Depth: 126 mm
Weight: 3,3 kg
