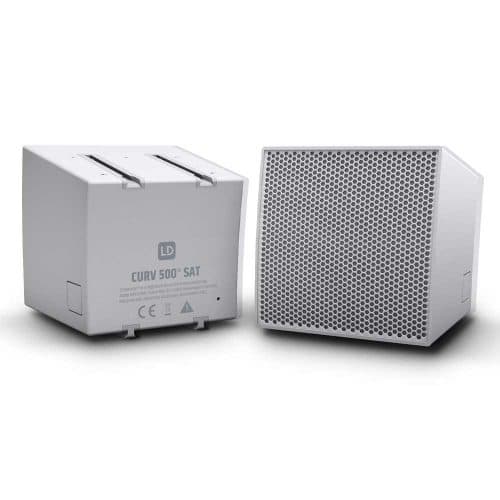

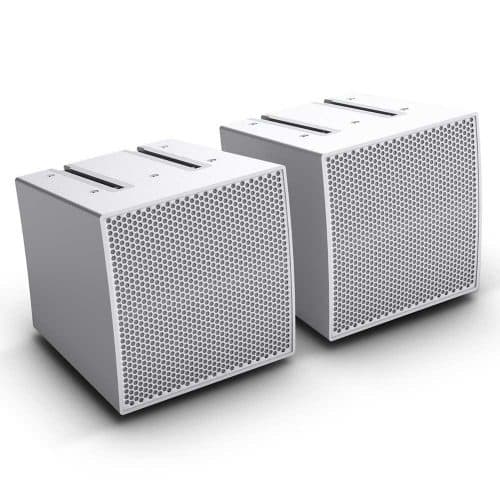

LD Systems CURV 500 S2 W – Two Array Satellites for the CURV 500 Portable Array System
The LD Systems CURV 500 S2 W gives you a set of two array satellites for your existing CURV 500 portable array system. Made up of white die-cast aluminium, the CURV 500 S2 W not only looks great but produces excellent quality sound. Featuring a 4-inch woofer and three 1-inch tweeters, all while coming in at just 12 by 12cm in size.
Sporting LD’s WaveAhead technology, the tweeters on the CURV 500 S2 W are connected vertically, ensuring a perfect sound mix and distribution. Its 110 degrees horizontal dispersion angle is very wide and is limited vertically to 10 degrees per satellite. Therefore reducing reflections on ceilings and walls. While a passive crossover at 2500 Hz ensures an optimum allocation of the frequency spectrum.
The CURV 500 S2 W also features the patented SmartLink coupling mechanism. Allowing you to wirelessly connect up to four array satellites to your unit in seconds.
Its robust metal grilles and acoustic material scrim protect your drivers, each with 16 ohms impedance and weighing less than 2kg.
Finally, with a matt-white powder-coated surface, the CURV 500 S2 W is resilient and elegant. You can even get an M3 connection for permanent insallations.
Features
- Bundle consisting of two array satellites
- Compact cabinet made of white die-cast aluminium, rugged and resilient

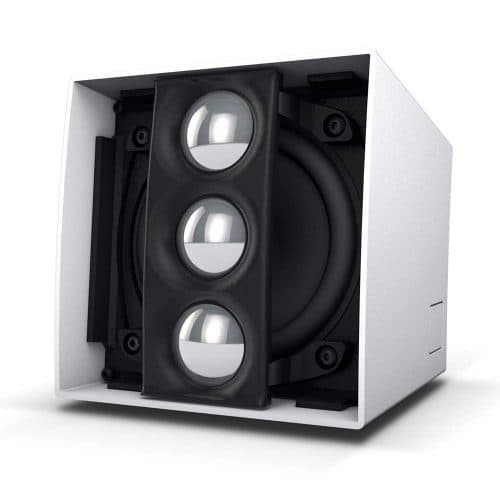

- A single 4-inch midrange driver and three 1-inch high-frequency drivers with patented WaveAhead® Technology deliver excellent sound
- SmartLink® System allows for cable-free assembly of up to four array satellites
- 16 ohm impedance per satellite
Spec
Product type: PA Complete Systems Accessories
Type: Array Satellites
Midrange size: 1 x 4 “
Tweeter dimensions: 3 x 1 “
Load rating (RMS): 40 W
Peak power: 80 W
Speakers per amplifier channel: (DSP44/45K) 8×1, 4×2, 2×3, 2×4, 5, 6 (LOW Z)
Dispersion: 110° horizontal, vertical (each satellite) 10 °
Impedance: 16 Ohm(s)
Material: Die-cast aluminum
Surface: Powder coated
Colour: white
Width: 122 mm
Height: 122 mm
Depth: 122 mm
Weight (pair): 3.44 kg
Features: internal crossover, M3 thread for safety rope for installations , metal grille , SmartLink® System , WaveAhead® Technology
