LD Systems Curv500 AVS Compact Portable Column PA System 2400W

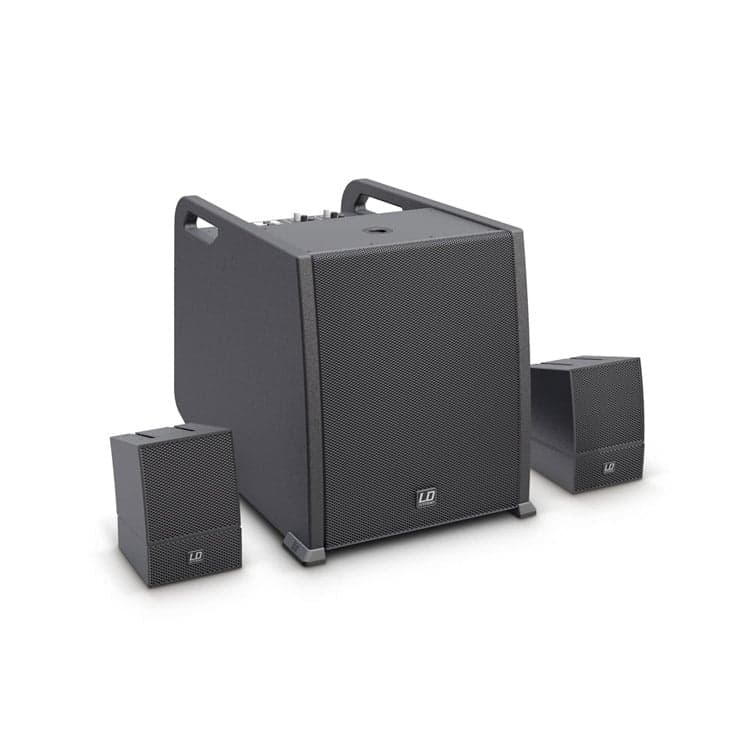

The LD Systems CURV500 AV-Set is a compact and portable array system comprising of a powerful 10-Inch subwoofer with integrated 4-Channel mixer, and 2 satellites fitted with ‘WaveAhead’ technology. Perfect for installations, presentations and performances.

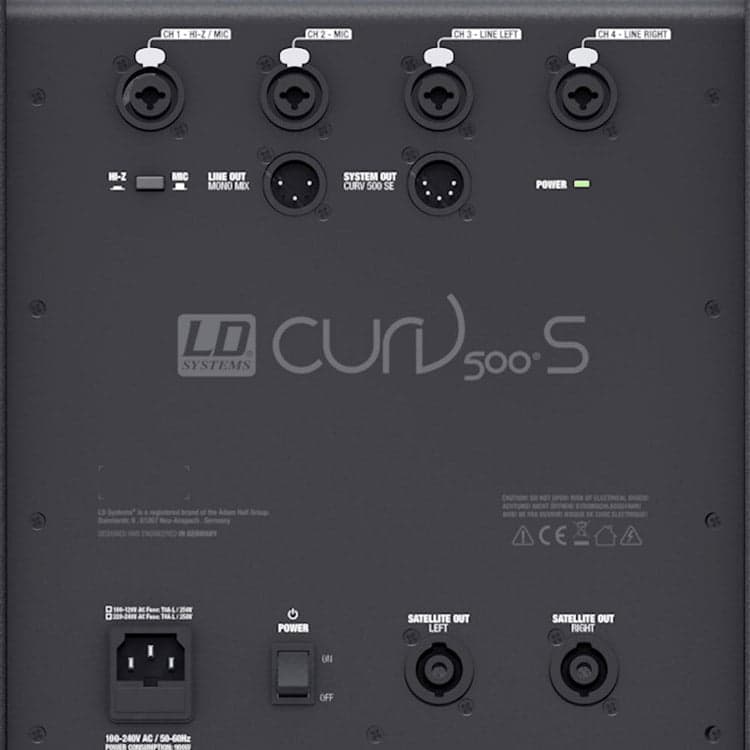

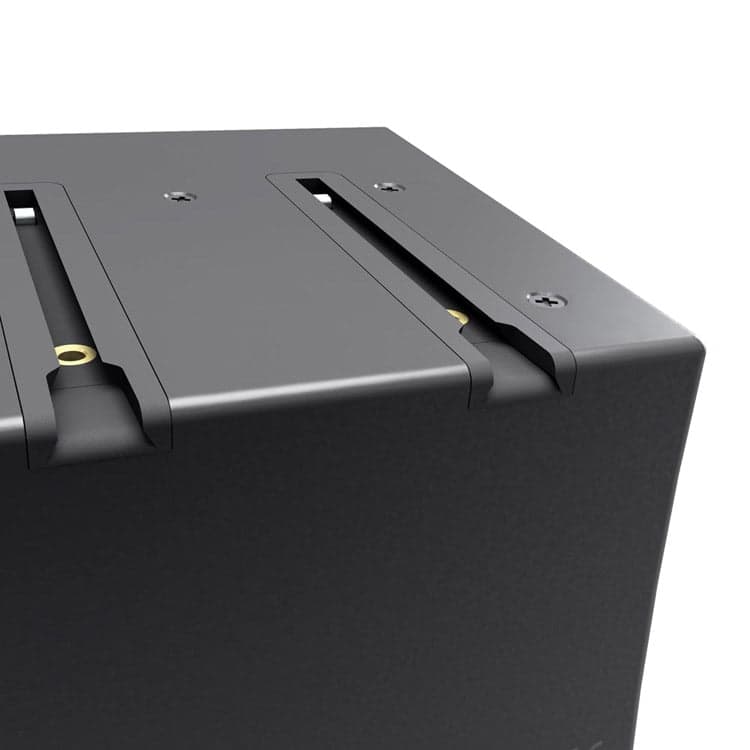

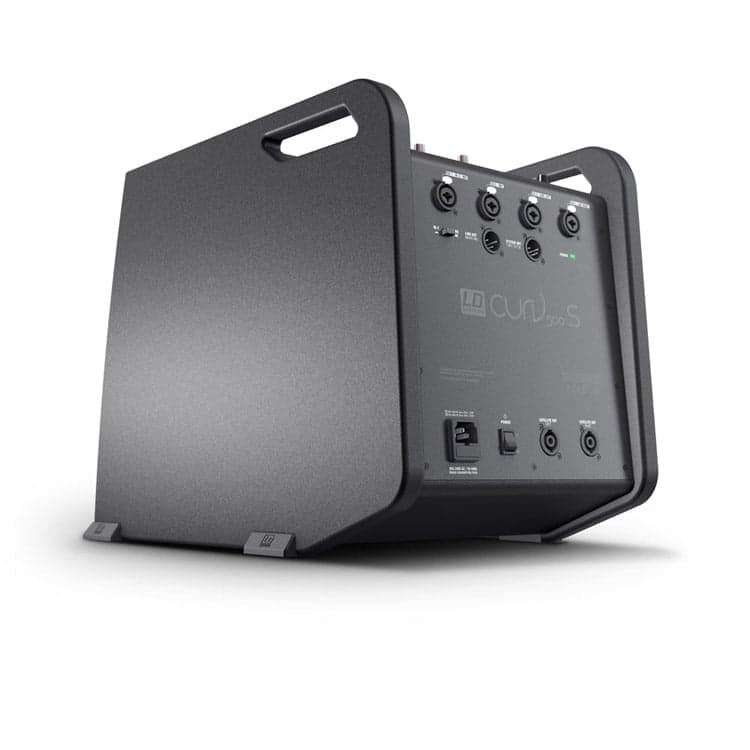

The 10-Inch bass-reflex subwoofer with Class D power amplifier represents the core of the CURV 500® AV Set and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth®. Combo and Speakon-compatible sockets offer extensive connectivity options. Furthermore, the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles.

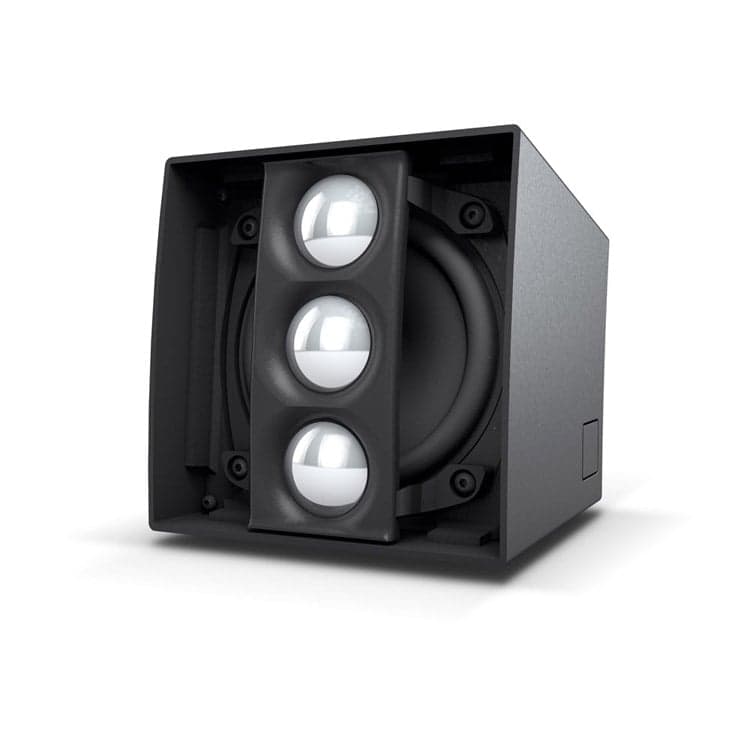

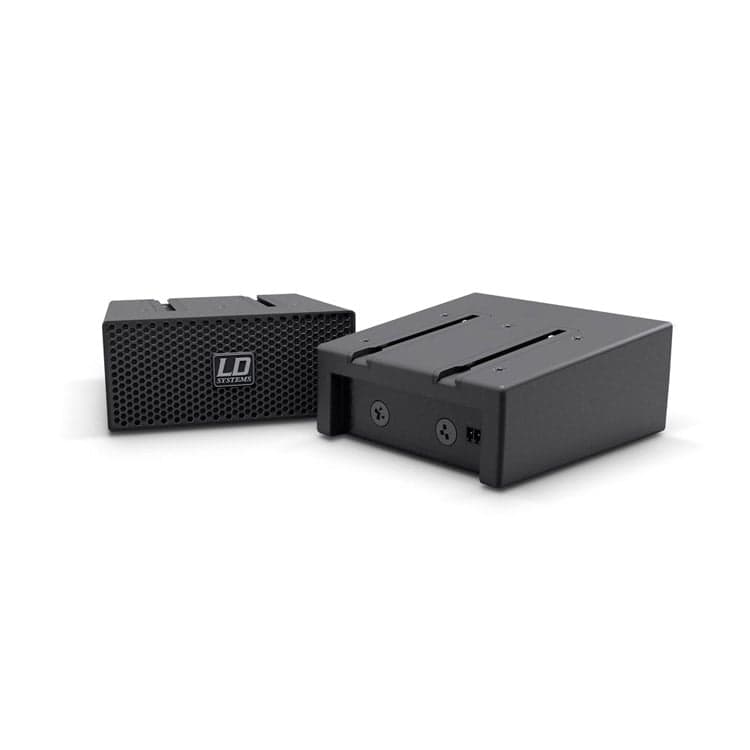

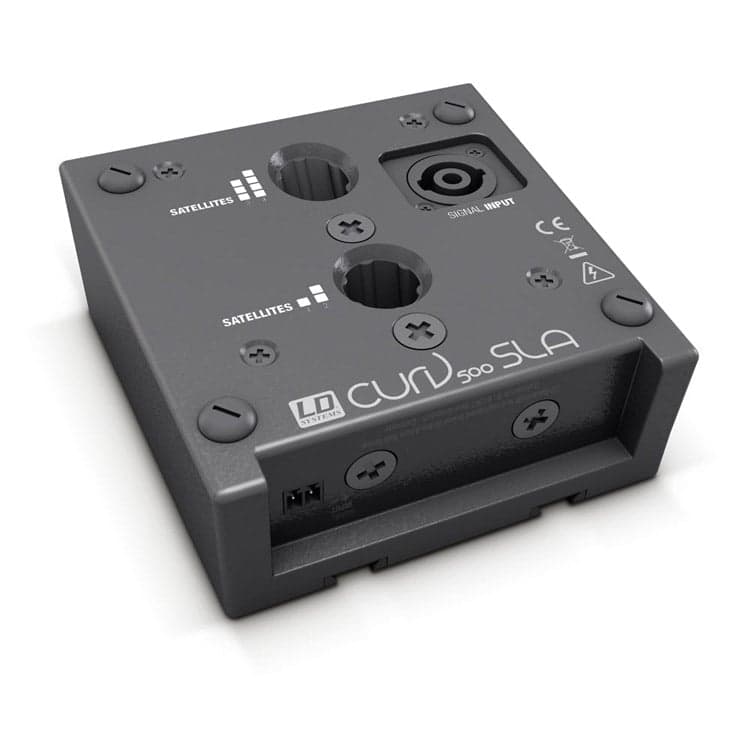

The two satellites are operated via SmartLink® adapters. The elements, only 12 x 12 cm in size, are equipped with LD System’s own WaveAhead® technology; one 4-Inch and three 1-Inch drivers provide a coherent and extremely detailed playback with high pressure and dynamics.
Features
- Compact Modular Array
- Active 10-Inch Subwoofer
- 2x Array satellites fitted with WaveAhead Technology

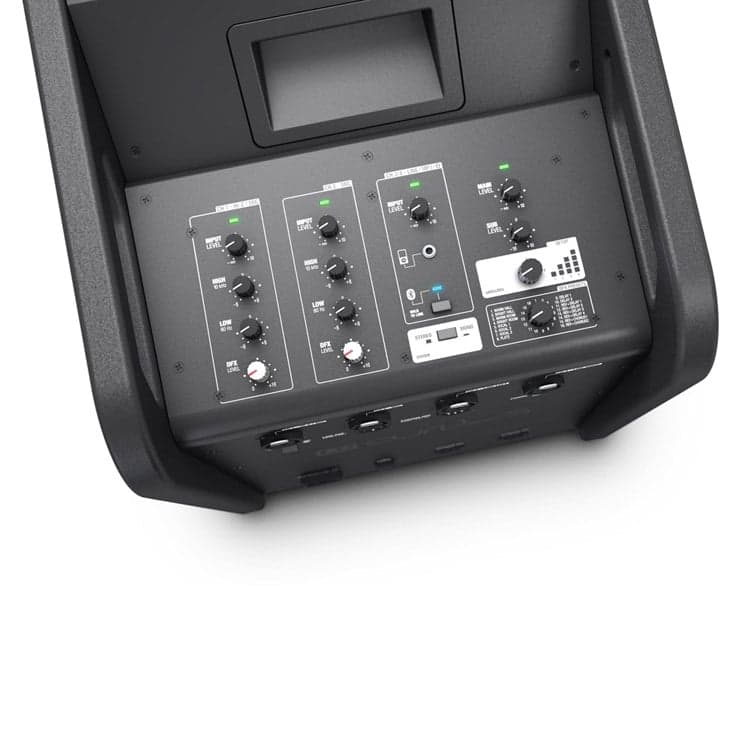

- Integrated 4-Channel Mixer with Bluetooth® connectivity
- Supports up to 4 satellites per active subwoofer base
- Selectable configuration presets for optimal sound
- Great sound and ultra portable
- Designed and engineered in Germany
Spec
Weight:
| Product Number: | LDCURV500AVS |
|---|---|
| Type: | Active Portable Array System |
| System output (RMS): | 380W |
| System output (Peak): | 2400W |
| Amplifier: | Class D |
| Max. SPL (peak): | 122dB |
| Frequency response: | 47Hz – 20kHz |
| Subwoofer: | 10-Inch LF Driver |
| Satellites (each): | MF: 1 x 4-Inch / HF: 3 x 1-Inch with WaveAhead® Technology @ 16 ohms |
| Dispersion (H x V): | 110° horizontal, vertical (each satellite) 10° |
| Input Channels: | 4 (2x mic, 1x Stereo Line) |
| Mixer FX: | 16 DFX Presets |
| Audio protection circuits: | overload, short circuit, DSP-based multiband limiter, thermal overload |
| Dimensions: | Subwoofer: 325 x 383 x 491mm Satellites (each): 122 x 122 x 122mm |
| Subwoofer: 16.5 kg Satellites (each) 1.7 kg |
