LD Systems Curv500 IAMP 4-Channel Installation Amplifier 4x240W
LD Systems Curv500 IAMP
The LD Systems Curv500 IAMP is purpose-designed for CURV 500 installations with its low-profile 4-channel Class D rackmount amplifier. High-efficiency switch mode power supply and deliver an impressive 10 Hz – 22 kHz frequency response. Sporting DSP control with presets for various satellite and subwoofer configurations, delay and parametric EQ each channel delivers 240 watts RMS at 4 ohms with less than 0.01% THD. Operating the iAMP® is simple and intuitive with just a single push encoder and easily readable high-contrast OLED display. It features a soft start circuit, DC, overcurrent, thermal and short circuit protection plus a temperature controlled low- noise fan. Input is on balanced XLR and terminal block connectors. The iAMP® is capable of driving up to six CURV 500 satellites or one CURV500ISUB subwoofer per channel providing terminal block and speakON-compatible output connectors.
Features
- 4 channels with DSP control
- Purpose-designed for CURV 500 installations
- Low-profile 1U 19″ rackmount construction
- Drives up to six CURV 500 satellites or one CURV 500 ISUB subwoofer per channel

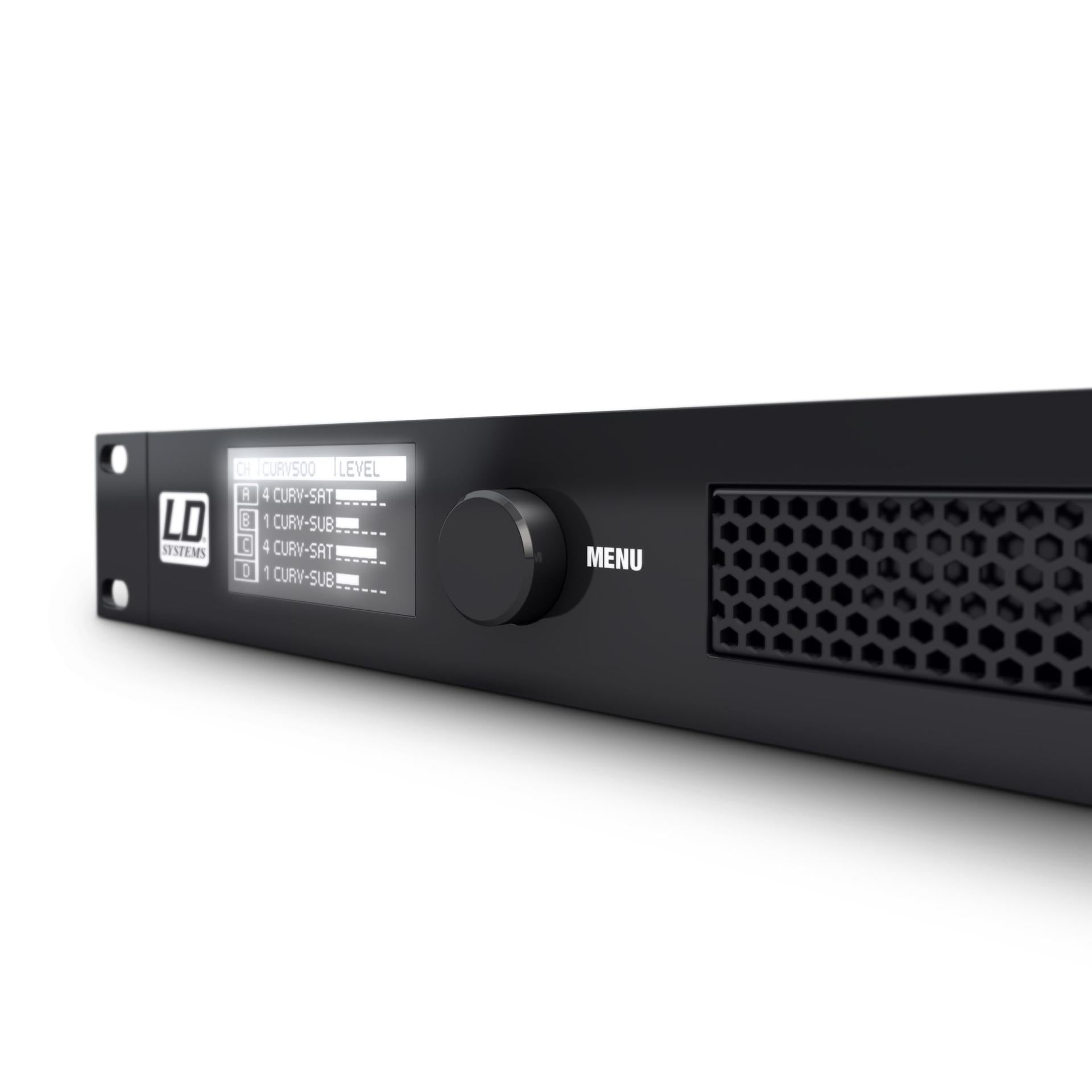

- Single push encoder operation
- High-contrast OLED display
- Temperature controlled low-noise fan
- High-efficiency switch mode power supply
Spec
Product number: LDCURV500IAMP
Product type: Power Amplifiers
Type: Installation Power Amplifiers
Rated Output power (1kHz):
- 2,7 Ohms: 4 x 240W
- 4 Ohms: 4 x 240W
- 8 Ohms: 4 x 120W
- 16 Ohms: 4 x 60
Output circuitry: Class D
Frequency response: 10 – 22000Hz
THD: < 0,01 %
Protection circuits: DC, short circuit, over-current, soft start, thermal overload
Controls: Push encoder
Indicators: OLED Display

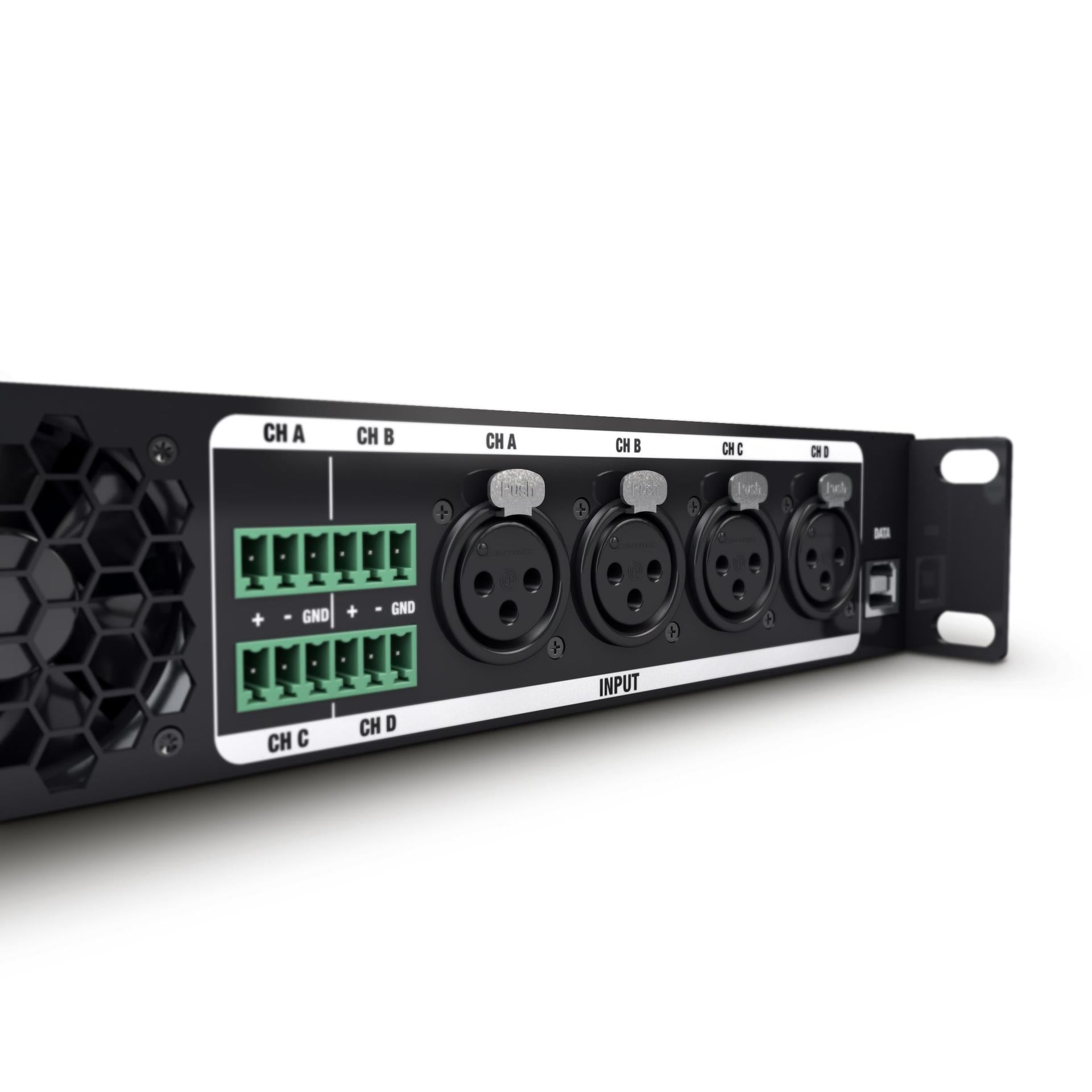

Line inputs: 4
Line input connectors: XLR, terminal block

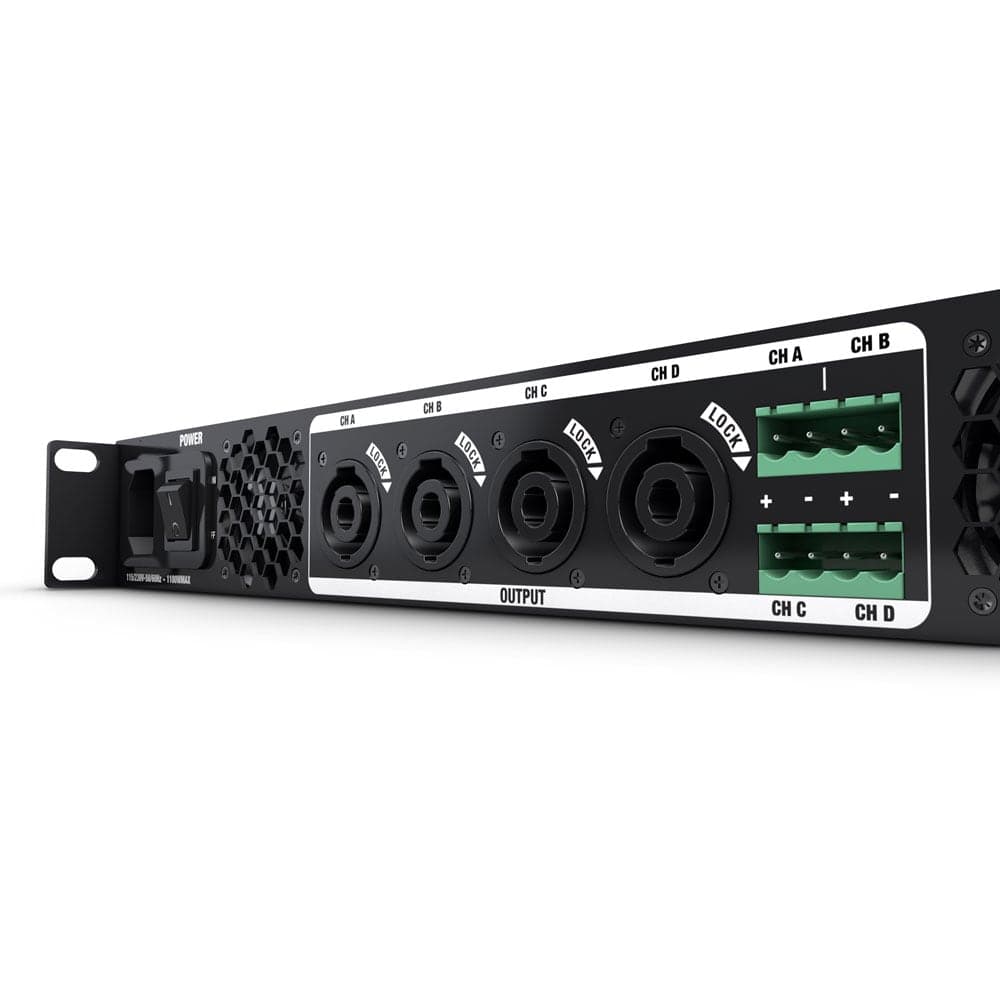

Loudspeaker outputs: 4
Speaker output connections: Speakon compatible, terminal block
