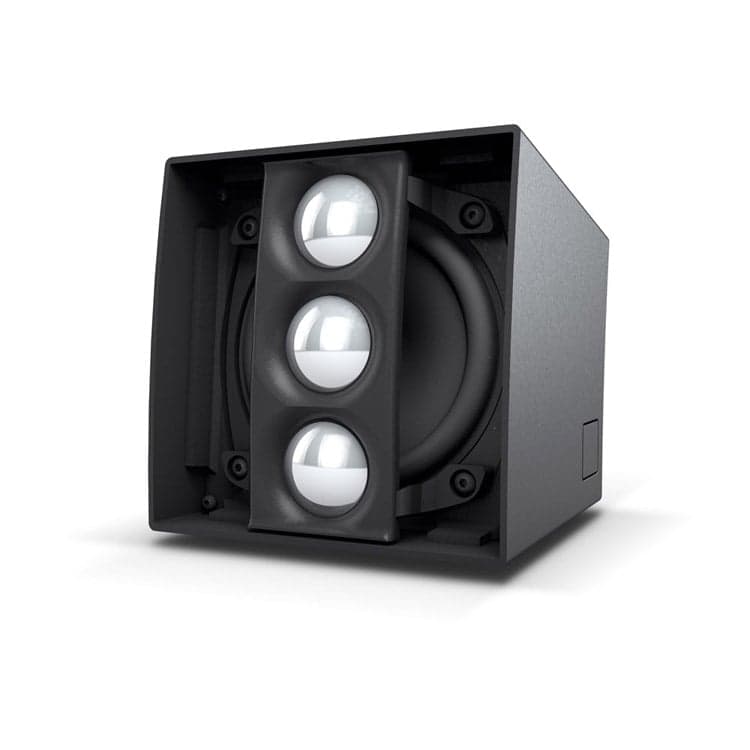

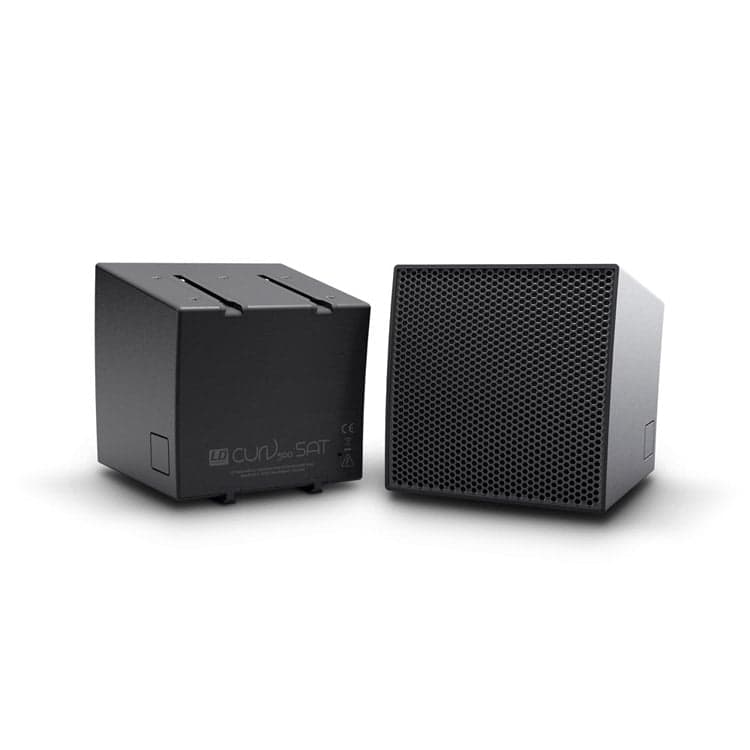

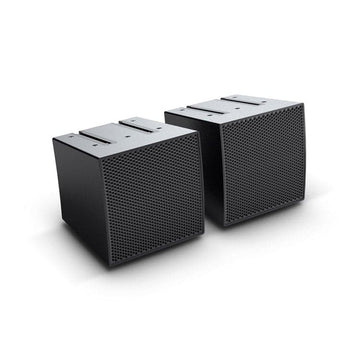

LD Systems Curv500-S2 Satellite Array Speaker Pair
The LD Systems Curv500-S2 is an add-on satellite speaker pair for your Curv500 system. Easy to include into your systems with a plug / clip-in and play design. Perfect for installations, bands, and DJs wanting more sound.This is achieved by their single 4-inch midrange driver and three 1-inch high-frequency drivers. Thanks to the WaveAhead® technology developed by LD Systems, the tweeters are arranged vertically ahead of the high-performance full-range speaker, thus the perfect sound mix and dispersion is achieved. The 110 degrees horizontal dispersion angle is very wide and is limited vertically to 10 degrees per satellite – which reduces reflections on ceilings and floors. A passive crossover at 2500 Hz ensures an optimum allocation of the frequency spectrum. With the patented SmartLink® plug-in mechanism, the system, comprising up to four array satellites, can be assembled without cables in a matter of seconds. Robust metal grilles with acoustic material for rear tensioning protect the drivers of the rugged satellites featuring 16 ohm impedance and a weight of 1.73 kg. The matt-black powder-coated surface is resilient and gives the satellite an elegant look. For fixed installations, there is an M3 screw connection for the safety rope.
Features
- Professional satellite array speakers
- Compatible with all Curv500 PA systems
- Ideal for expanding your mid-high coverage
- ‘Clip-and-play’ design
- WaveAhead technology for enhanced audio performance
- Supplied as a pair
Spec
Product number:LDCURV500S2Product type:Array SatellitesType:passiveMidrange size:1 x 4″Tweeter dimensions:3 x 1″Dispersion:110° horizontal, 10° vertical (each satellite)Impedance:16Ohm(s)Material:die-cast aluminiumSurface:powder coatedColour:whiteWidth:122mmHeight:122mmDepth:122mmWeight:3.44kgFeatures:WaveAhead® Technology, SmartLink® System, internal crossover, metal grille, M3 thread for safety rope for installations
