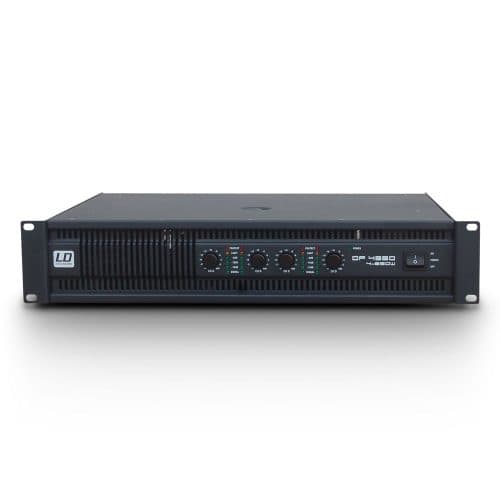

LD Systems DEEP2 4950 – PA Power Amplifier Class H (4 x 810W at 4 Ohms)

LD Systems DEEP2 4950

The LD Systems DEEP2 4950 Power Amplifier brings you a Class H amplifier offering levels of 4 x 810W at 4 Ohm. Delivering reliability and durability, the DEEP2 4950 will suit continuous operation. So you can be sure it’s built with exclusively high end and selected components. The DEEP2 4950 also features a Clip Limiter as well as every common protection circuit. While the rear panel includes all the common In- and Outputs.

What’s more, the DEEP2 series is capable of convincing every user thanks to its dynamic and clear sound. Perfectly adapted for Subbass applications as well as for multifunctional speakers. All models are lightweight and feature a robust steel plate housing as well as a very user-friendly and compact design.

Above all, the DEEP2 4950 power amplifier is a profitable and reliable choice. So it’s perfect if you’re a band, renting company, or professional user.

Rear Panel

The rear panel of the DEEP2 4950 offers Speakon and Binding post-type loudspeaker connectors. The Speakon connector is appropriate for high-power speaker connections. It locks in place, prevents shock hazards, and assures the correct polarity. Ground lift means breaking a connection between chassis earth and electrical earth. You can use this feature only when a 50Hz hum is terminating from loudspeakers.

The DEEP2 4950 includes 3-pin XLR connector inputs for INPUT A, B, C and D. In Stereo mode each channel within the pair remains independent, and each may be used for a different signal. As in Bridge mode: This setting combines both channels of a pair into a single channel with twice the output voltage. Use only the input and gain control channel A.

on.

Features

• Rated output power: (1kHz @ 4 Ohms) 4 x 810 W
• Rated output power: (1kHz @ 8 Ohms) 4 x 490 W
• Rated output power: (1kHz @ 8 Ohms, bridged) 2 x 1600 W

Spec

Product type: Power Amplifiers

Type: PA Power Amplifiers

Rated output power: (1kHz @ 4 Ohms) 4 x 810 W

Rated output power: (1kHz @ 8 Ohms) 4 x 490 W

Rated ouput power: (1kHz @ 8 Ohms, bridged) 2 x 1600 W

Output circuitry: Class H

Frequency response: 20 – 20000 Hz

Total Harmonic Distortion (THD): < 0.1 %

Signal-to-noise ratio: 105 dB

Damping factor: > 400

Crosstalk: >70 dB

Gain: 38 dB

Input sensitivity: 0.775 V

Protection circuits: DC protection, short circuit, thermal overload

Controls: 4 x volume , bridge/stereo mode selector , ground lift , mains switch (on/off)

Indicators: Limit, Power , Protect (protection circuit engaged), Signal

Loudspeaker outputs: 4

Speaker output connections: Speakon compatible

Cooling: highly efficient, automatic

Operating voltage: transformer

Operating voltage: 230 V AC / 50-60 Hz

Weight:19,6 kg
